Viega Eco Plus Instructions For Use Manual

For flush plates visign
Hide thumbs Also See for Eco Plus:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instructions for Use Manual

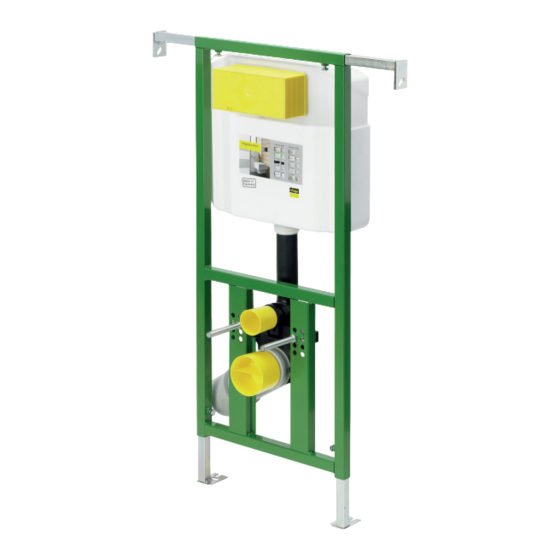

Viega Eco Plus WC element
Instructions for Use
for flush plates Visign
Model
8136.2
en_INT
Year built:
from 07/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Viega Eco Plus

Summary of Contents for Viega Eco Plus

  • Page 1 Viega Eco Plus WC element Instructions for Use for flush plates Visign Model Year built: 8136.2 from 07/2007 en_INT...
  • Page 2 Viega Eco Plus WC element 2 from 20...

  • Page 3: Table Of Contents

    3.1.1 Mounting conditions 3.1.2 Installation dimensions 3.1.3 Required tools Assembly 3.2.1 Mounting WC element 3.2.2 Connecting concealed cistern 3.2.3 Preparing optional actuation versions 3.2.4 Setting the flush volume Cleaning and maintenance Disposal Viega Eco Plus WC element 3 from 20...

  • Page 4: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.

  • Page 5: About This Translated Version

    German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Viega Eco Plus WC element 5 from 20...

  • Page 6: Product Information

    Fulfilled noise protection require- VDI 4100 SSt I-SSt II ments Intended use 2.2.1 Areas of use The Viega Eco Plus WC element is suitable for mounting in the wooden support profile. Viega Eco Plus WC element 6 from 20...

  • Page 7: Product Description

    2.3.1 Overview Fig. 1: Components flush actuation site protection lateral supports Viega Eco Plus WC element Viega concealed cistern 2H flushing pipe Four fixing heights for the WC ceramic: 330 mm / 350 mm / 370 mm / 390 mm...
  • Page 8 Visign for Style 14 Functional unit 8332.3 Visign for More Flush plate Visign for More 8352.1 Flush plate Visign for More 8351.1 Flush plate Visign for More 8353.1 Flush plate Visign for More 8355.1 Viega Eco Plus WC element 8 from 20...

  • Page 9: Sound Protection

    2.3.4 Technical data Flush volume Small flush volume Factory setting approx. 3 l Setting range approx. 3–4 l Large flush volume Factory setting approx. ca. 6 l Setting range approx. 6–9 l Viega Eco Plus WC element 9 from 20...

  • Page 10: Handling

    WC element is clad and tiled. The corresponding empty pipe (included in the scope of delivery of the remote actuation) is required when preparing the remote actuation Visign for Public1. Viega Eco Plus WC element 10 from 20...

  • Page 11: Installation Dimensions

    Handling 3.1.2 Installation dimensions Fig. 2: Viega Eco Plus WC element 8136.2 dimensions 3.1.3 Required tools The following tools are required for mounting the WC element: drill with 10 mm drill bit fork or ring spanner: 27 mm fork or ring spanner: 13 mm / 17 mm...

  • Page 12: Assembly

    Mark holes for floor supports. 0 - 2 0 0 Drill holes for floor supports. Ø10 Attach WC element to the floor using the fork spanner (size 13) and the screws and dowels supplied. Viega Eco Plus WC element 12 from 20...
  • Page 13 Mount the drain elbow and insert the protective plug. click If necessary, mount a reducer. Screw in the threaded rods for WC ceramic to the desired height. Pull the plastic protective sleeves for the threaded rods over the WC ceramic. Viega Eco Plus WC element 13 from 20...

  • Page 14: Connecting Concealed Cistern

    Screw the ½ inch connector into the wall lead-in. Counter with a fork spanner (SW 27). Loosen plastic union nut. Pull out wall lead-in. Viega Eco Plus WC element 14 from 20...
  • Page 15 The clicking into the groove signals the correct position. Re-tighten the union nut. Loosen (SW 19) flexible hose onto the filling valve. Open corner valve. Flush pipeline. Close corner valve. Re-mount (SW 19) the flexible hose onto the filling valve. Viega Eco Plus WC element 15 from 20...
  • Page 16 Loosen (SW 19) flexible hose onto the corner valve. Unscrew plastic union nut. Pull the corner valve inwards out of the wall lead-in. Remove plastic union nut. Remove the wall lead-in inwards. Viega Eco Plus WC element 16 from 20...
  • Page 17 Loosen the closing cap on the left-hand upper side of the concealed cistern. Close opening on the side with the closing cap. Push wall lead-in from inside into the upper opening. Insert the corner valve back into the wall lead-in. Viega Eco Plus WC element 17 from 20...

  • Page 18: Preparing Optional Actuation Versions

    Visign for Public1 (model 8326.21). Lead the empty pipe from the hollow wall socket into the concealed cistern. Distance from the remote actuation to the cistern (x) min. 1.0 m max. 1.7 m Prepare electrical actuation Viega Eco Plus WC element 18 from 20...

  • Page 19: Setting The Flush Volume

    The WC element is factory-set at a large flush volume of approx. 6 l. The large flush volume can be set continuously from approx. 6 l up to approx. 9 l. Remove the drain valve from the concealed cistern. Viega Eco Plus WC element 19 from 20...

  • Page 20: Cleaning And Maintenance

    The valves may have to be replaced, depending on the extent of deposits. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Eco Plus WC element 20 from 20...
