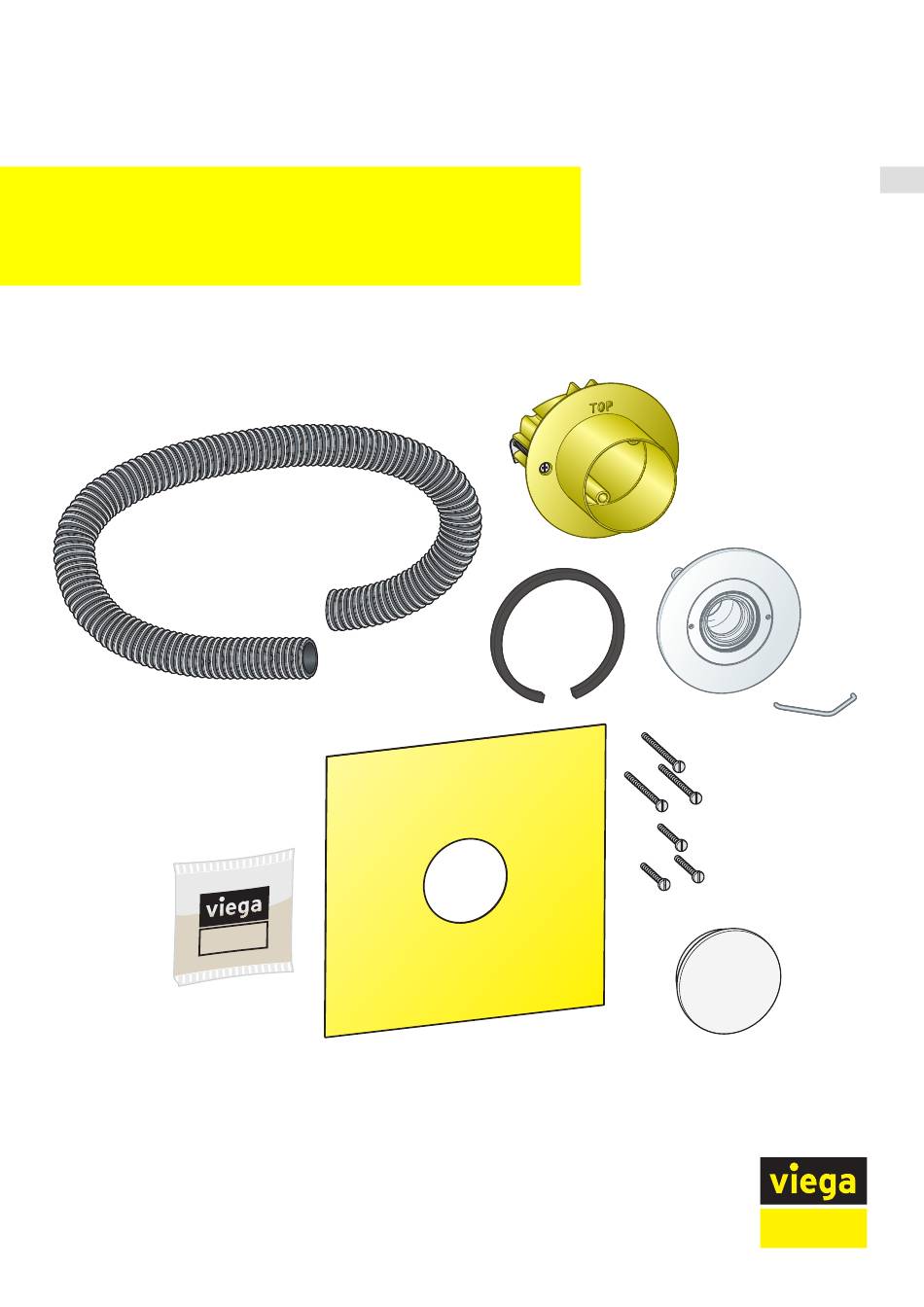

- Page 1 Instructions for Use Multiplex Trio E extension set for display element, concealed, cavity wall Model 6146.221...
-
Page 2: Table Of Contents
Table of contents Table of contents About these instructions for use 1.1 Target groups 1.2 Labelling of notes 1.3 About this translated version Product information 2.1 Intended use 2.2 Product description 2.2.1 Overview Handling 3.1 Assembly 3.1.1 Mounting the display element 3.2 Disposal Multiplex Trio E extension set... -
Page 3: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 4: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 5: Product Information
Product information Product information Intended use The extension set is suitable for converting the Multiplex Trio E3 display element for a pre-wall or a masonry wall. Product description 2.2.1 Overview Fig. 1: Components and scope of delivery connection socket cover rosette and cover ring screwing aid fixing screws seal plug... -
Page 6: Handling
Handling Handling Assembly 3.1.1 Mounting the display element Mounting the connection socket on pre-walls ▶ Use a compass saw (Ø 68 mm) to saw the hole into the wall. ▶ Insert the empty pipe such that two rings can be seen on the inside. NOTICE! Do not bend the empty pipe. - Page 7 Handling ▶ Screw on the connection socket. ▶ Push on the sealing collar and incorporate into the sealing concept. ▶ Insert the seal plug. ▶ Tile in the connection socket. Multiplex Trio E extension set...
- Page 8 Handling Mounting the connection socket on masonry walls ▶ Insert the empty pipe such that two rings can be seen on the inside. NOTICE! Do not bend the empty pipe. ▶ Insert the connection socket in the recess. ▶ Fix the connection socket with quick-setting mortar. Multiplex Trio E extension set...
- Page 9 Handling ▶ Push on the sealing collar and incorporate into the sealing concept. ▶ Fit the seal plug. ▶ Tile in the connection socket. Multiplex Trio E extension set...
- Page 10 Handling Mounting the display element ▶ Cut-off or saw-off the connection socket flush. ▶ Cut-off condition. ▶ Pull off the display element. ▶ Pull out the connection cable through the fixing element. Multiplex Trio E extension set...
- Page 11 Handling ▶ Insert the seal in the cover rosette. INFO! Insert the seal so that the ends form an opening in the bottom section of the cover rosette. ▶ Push the cover ring and the cover rosette over the connection cable for the display element.
- Page 12 Handling ▶ Select the appropriate screw length. ▶ Fasten the cover rosette using the selected screws. ▶ Screw in the cover ring using the screwing aid. ▶ Apply a thin layer of grease to the seal ring. ▶ Insert the display element with the inscription facing downwards. Multiplex Trio E extension set...
-
Page 13: Disposal
Handling ▶ Fit the site protection for the display element. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Multiplex Trio E extension set... - Page 14 Viega Technology GmbH & Co. KG service-technik@viega.de viega.com INT • 2020-02 • VPN190541...
