Viega Eco Plus Instructions For Use Manual
Universal shower wc element
for wall-hung wcs
Hide thumbs
Also See for Eco Plus:
- Instructions for use manual (37 pages) ,
- Instructions for use manual (28 pages) ,
- Instructions for use manual (14 pages)
Related Manuals for Viega Eco Plus
Summary of Contents for Viega Eco Plus

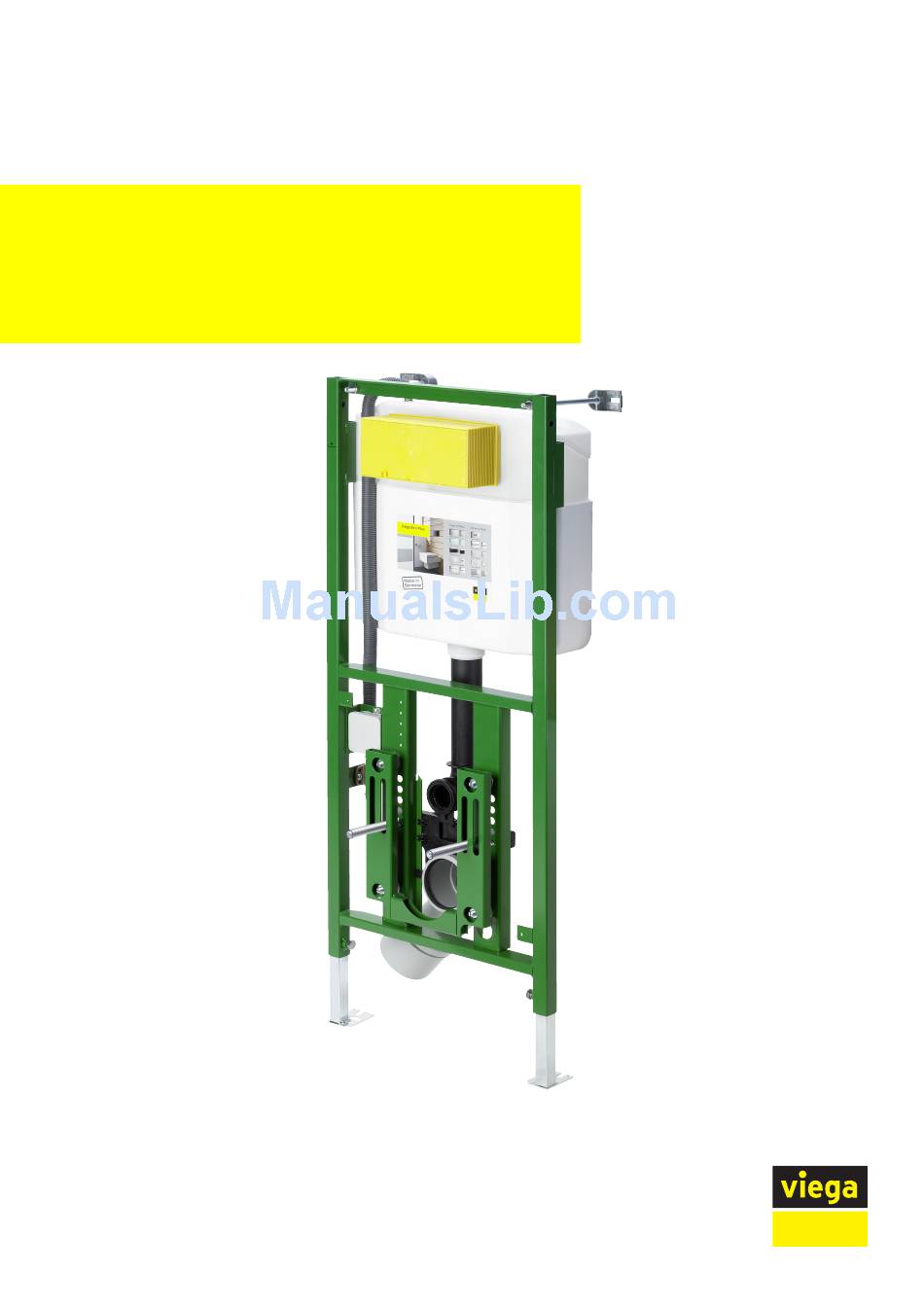

- Page 1 Viega Eco Plus Universal shower WC element Instructions for Use for wall-hung WCs, wall-hung shower WCs, wall-hung WCs with shower WC top Model Year built: 8161.20 from 08/2015 en_INT...
- Page 2 Viega Eco Plus Universal shower WC element 2 from 22...
-
Page 3: Table Of Contents
Mounting shower WC element 3.2.2 Set up element for wall covering – using the template 3.2.3 Preparing installation of the cover plate 3.2.4 Setting the flush volume Cleaning and maintenance Disposal Viega Eco Plus Universal shower WC element 3 from 22... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Viega Eco Plus Universal shower WC element 5 from 22... -
Page 6: Product Information
An electric shock can lead to burns and serious injury and even death. – Work on the electrics may only be carried out by trained electricians. – Switch off the mains voltage before connecting the power pack. Viega Eco Plus Universal shower WC element 6 from 22... -
Page 7: Intended Use
Product information Intended use 2.3.1 Areas of use The Viega Eco Plus WC element is suitable for mounting on masonry wall constructions and support profiles pursuant to the regulations in section Ä „Regulations from section: Fields of application / Mounting conditions“... -
Page 8: Compatible Components
Flush plate sensitive Visign 8352.21 sensitive for Care Visign for More Flush plate sensitive 230 V 8352.11 sensitive Visign for More 100 Flush plate sensitive 6.5 V 8352.12 Visign for More 100 Viega Eco Plus Universal shower WC element 8 from 22... - Page 9 Visign for Public 1 Cover plate Visign for Public 8326.9 Compatible cover plates The Viega Eco Plus shower WC element 8161.20 is suitable for mounting with the following cover plates: Cover plate model 8040.16, glass, article number 736866 suitable for...
- Page 10 Duravit SensoWash E shower WC top Villeroy & Boch VICLEAN shower WC top Equipment WC connection fitting WC sound insulation panel Flexible hose R ½ with union nut Rp ½ Ball valve R ½ Viega Eco Plus Universal shower WC element 10 from 22...
-
Page 11: Sound Protection
Immediate re-flushing is possible at the factory settings. Accessories Required accessories The shower WC element is delivered without cover plate. For mounting, you require one of the compatible cover plates, Ä „Compatible cover plates“ on page 9. Viega Eco Plus Universal shower WC element 11 from 22... -
Page 12: Handling
3.1.1 Mounting conditions Suitable walls The Viega shower WC element is suitable for mounting on masonry wall constructions and support profiles pursuant to the regulations in section Ä „Regulations from section: Fields of application / Mounting condi‐ tions“ on page 6. -
Page 13: Installation Dimensions
13 mm / 17 mm fork or ring spanner: 13 mm / 17 mm / 19 mm Phillips-tip screwdriver flat-blade screwdriver cordless screw driver silicone press Assembly 3.2.1 Mounting shower WC element Masonry wall Viega Eco Plus Universal shower WC element 13 from 22... - Page 14 INFO! Any errors made at this stage of the assembly are extremely difficult to correct afterwards! 1 , 0 0 - 2 0 Viega Eco Plus Universal shower WC element 14 from 22...
- Page 15 – Work on the electrics may only be carried out by trained elec‐ tricians. – Switch off the mains voltage before carrying out work on elec‐ trical parts. Connect on-site electricity (230 V). Reattach the template. Viega Eco Plus Universal shower WC element 15 from 22...
- Page 16 INFO! Any errors made at this stage of the assembly are extremely difficult to correct afterwards! 1 , 0 0 - 2 Viega Eco Plus Universal shower WC element 16 from 22...
-
Page 17: Set Up Element For Wall Covering - Using The Template
Set up element for wall covering – using the template Determine threaded rod height for sanitary object (SW 19). 3 9 0 3 7 0 3 5 0 3 3 0 3 1 0 0 - 2 0 Viega Eco Plus Universal shower WC element 17 from 22... - Page 18 4 5 m m Attach the template (polystyrene) to the element. Double clad the pre-wall element (2 x 12.5 mm). Clad up to the template. Lay tiles up to the template. Viega Eco Plus Universal shower WC element 18 from 22...
-
Page 19: Preparing Installation Of The Cover Plate
Loosen the four front threaded nuts on the sides of the H-beam (SW 17). Align all four points flush with the finished wall surface by screwing in and unscrewing the threaded screws. Check with spirit level. Viega Eco Plus Universal shower WC element 19 from 22... -
Page 20: Setting The Flush Volume
The shower WC element is factory-set at a small flush of approx. 3 l. The small flush volume can be set continuously from approx. 3 l up to approx. 4 l. Viega Eco Plus Universal shower WC element 20 from 22... -
Page 21: Cleaning And Maintenance
In areas or regions with hard water due to calcium or magnesium salts, there is the risk of limescale deposits developing on the inlet and drain valves. The valves may have to be replaced, depending on the extent of deposits. Viega Eco Plus Universal shower WC element 21 from 22... -
Page 22: Disposal
Handling Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Eco Plus Universal shower WC element 22 from 22...
