- Page 1 Instructions for Use Multiplex Trio E3 fitting, electronic mixing unit for filling a bathtub (electronically controlled), in connection with Multiplex Trio, Multiplex Trio F, Rotaplex Trio or Rotaplex Trio F F (optional electric driven) Model Year built (from) 6146.215 03/2012...
-
Page 2: Table Of Contents
Changing the water inlet 3.3.5 Using personal settings 3.3.6 Electronic operation of the drain 3.3.7 Configuring the menus and control 3.3.8 Cleaning functions 3.3.9 System diagnosis and statistics 3.4 Troubleshooting 3.5 Care and maintenance Multiplex Trio E3 fitting, electronic mixing unit... - Page 3 Table of contents 3.5.1 Care tips 3.5.2 Maintenance 3.5.3 Changing the filters in the corner valves 3.5.4 Replacing the rechargeable battery 3.6 Disposal Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 6: Product Information
Overflow function EN 274 Regulations from section: Maintenance Scope / Notice Regulations applicable in Ger‐ many Thermal disinfection after 72 VDI 6023 hours of non-use Thermal disinfection after 7 days EN 806-5 Multiplex Trio E3 fitting, electronic mixing unit... -
Page 7: Safety Advice
Ä ‘Regulations from section: Safety’ on page 6. Before opening the control casing, switch off the mains voltage and take steps to prevent accidental re-activation. Lay the cable in the control casing in such a way that it touches nothing. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 8: Intended Use
Ä Chapter 2.5 ‘Accessories’ on page 18. 2.3.2 Maintenance Regular maintenance is part of running the system properly Ä Chapter 3.5.2 ‘Maintenance’ on page 46. Inform the building owner, the operator or end customer of the maintenance obligations. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 9: Product Description

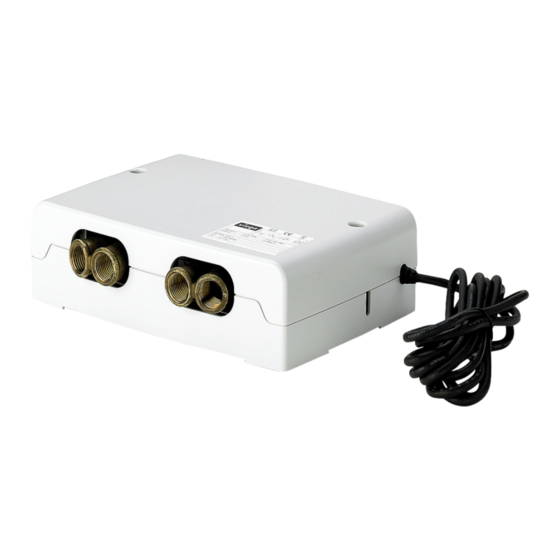

11 actuator unit for the hot and cold water mixer 12 control with plug contacts for all components 13 Mains adapter 230 V, with 3 m connection cable 14 battery for emergency operation 15 Casing Multiplex Trio E3 fitting, electronic mixing unit... -
Page 10: Technical Data
3 m) IP Code of electronic mixing IPX4 unit IP Code of control element IPX4 Fig. 2: Rate of flow without accessories (corner valves, filling hose, pipe interrupter) Multiplex Trio E3 fitting, electronic mixing unit... -
Page 11: Functions
Basic functions The electronic mixing fitting has been optimised for controlling electri‐ cally operated Viega bathtub drains/overflows. When a manually oper‐ ated drain and overflow fitting is used, all functions of the mixing fitting can be used, except for the electronic opening and closing of the drain. -
Page 12: Control Elements And Menus
Operating status [ON] with water supply switched on The display element shows various menus depending on the operating mode. In the menus, you can make settings for the mixing unit or acti‐ vate various functions. Multiplex Trio E3 fitting, electronic mixing unit... - Page 13 1 - Function symbol 2 - Frame that highlights the selected function 3 - Menu bar with function icons Menu display This example shows the display element in the operating mode [OFF] . Multiplex Trio E3 fitting, electronic mixing unit...
- Page 14 [OFF] : locking the extended menu list displaying the extended menu list Operating Menu status [ON] [OFF] The greyed-out symbols are visible in the extended menu list only. Multiplex Trio E3 fitting, electronic mixing unit...
- Page 15 Opening the drain; closing the drain Maintenance mode (control element is disabled for 45 seconds) Indicating the water consumption Limiting the water inlet time Limiting the water inlet temperature Starting diagnostic mode Show statistics Multiplex Trio E3 fitting, electronic mixing unit...
- Page 16 Acknowledgement symbol in statistics: total operating hours of the fitting Acknowledgement symbol in statistics: number of call-ups of program memory space 1 Acknowledgement symbol in statistics: number of call-ups of program memory space 2 Multiplex Trio E3 fitting, electronic mixing unit...
- Page 17 Furthermore, the menu symbol is indicated which symbolises the respective function in the display element. Example: Symbol Operating status [OFF] Action Briefly press the control element once. Result The water starts to flow. (Automatic stop after max. 99 minutes.) Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 18: Accessories
A water inlet and a drain/overflow fitting for the tub are required to be able to install the product completely. The following four Viega models are optimised for use with an electronic mixing fitting: Multiplex Trio drain / overflow, model 6175.1 Rotaplex Trio drain / overflow, model 6175.2... - Page 19 The extension set model 6146.221 enables installation of a display ele‐ ment on a wall or pre-wall. It contains a concealed socket, an conduit menu pipe for the connection cable and a fixing set with sealing collar and chrome-plated cover rosette. Multiplex Trio E3 fitting, electronic mixing unit...
- Page 20 Product information Extension cable 3 m extension cable for the control element: model 6146.22. 3 m extension cable for the display element: model 6146.222. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 21: Handling
Contact with splash water does not present a problem. Ø If the elements are to be mounted on the tub rim, Viega recommends having the drill holes made directly by the bathtub manufacturer, if possible. - Page 22 Observe the local standards and regulations. The pipe interrupter is not included in the scope of delivery and must be ordered separately. Observe the instructions for use of the pipe inter‐ rupter. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 23: Installation Dimensions
An electric shock can lead to burns and serious injury and even death. Only allow electrical work to be carried out by qualified electricians. Always de-energise the connection cable before work is commenced. Multiplex Trio E3 fitting, electronic mixing unit... - Page 24 Mount the corner valves to the hot and cold water installations. ▶ Unscrew the filter in an anti-clockwise direction. ▶ Remove the filter. ▶ Open the water inlet for a few seconds to flush the pipe. Multiplex Trio E3 fitting, electronic mixing unit...
- Page 25 Drill hole depth: 65 mm Use a spirit level for horizontal and vertical alignment. ▶ Screw on the mixing unit. ▶ Unscrew the safety screws. ▶ Seal the hoses. ▶ Screw the hoses onto the connecting pieces. Multiplex Trio E3 fitting, electronic mixing unit...
- Page 26 ▶ Connect the rechargeable battery to the control electronics. Make sure that it is properly aligned. Push the battery in until you feel the plug snap into place. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 27: Mounting The Control Element
The centres of the drill holes must be at least 80 mm apart. There must be clearance of at least 40 mm behind the drill holes. ▶ Guide the connecting cables of the operating element and the dis‐ play element through the drill holes. Multiplex Trio E3 fitting, electronic mixing unit... - Page 28 Connect the control element with the socket marked „TLI A“. Connect the display element with the socket marked „DISPLAY“. The plugs have a groove left and right on one long side which must face forward when plugging in. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 29: Connecting The Electrical Drain (Optional)
Connecting the electrical drain (optional) An electrically driven drain and overflow fitting must be used to be able to open and close the drain using the control element. Viega recom‐ mends one of the four models mentioned in Ä Chapter 2.5 ‘Accesso‐... -
Page 30: Control
The operating mode changes to [ON] . The illuminated ring of the control element flashes blue, orange or red, depending on the menu water temperature. The display shows the current water tempera‐ ture and inflow volume (see Figure). Multiplex Trio E3 fitting, electronic mixing unit... - Page 31 Turn the control element. Turn clockwise: warmer (orange illumi‐ nated ring) menu Turn anti-clockwise: colder (blue illumi‐ nated ring) Result The display shows the current water tempera‐ ture and inflow volume (see Figure). Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 32: Limiting The Water Inlet Time And Temperature
Limiting the water inlet time This setting is only possible via the extended menu list. First, enable the extended menu list as described in Ä ‘Displaying the extended menu list’ on page 37. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 33: Changing The Water Inlet
Briefly press the control element 1 x = program memory location 1 Briefly press the control element 2 x = program memory location 2 Briefly press the control element 3 x = program memory location 3 Multiplex Trio E3 fitting, electronic mixing unit... - Page 34 Saving personal settings This setting is only possible via the extended menu list. First, enable the extended menu list as described in Ä ‘Displaying the extended menu list’ on page 37. Symbol Operating status [OFF] Multiplex Trio E3 fitting, electronic mixing unit...
- Page 35 Restoring the factory settings on the program memory This setting is only possible via the extended menu list. First, enable the extended menu list as described in Ä ‘Displaying the extended menu list’ on page 37. Symbol Operating status [OFF] Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 36: Electronic Operation Of The Drain
3.3.6 Electronic operation of the drain To use this function, an electrically operated drain and overflow must be mounted and connected. Further infor‐ mation can be obtained from your trade professionals. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 37: Configuring The Menus And Control
After this, the menu list is locked again auto‐ matically to ensure that the protected func‐ tions are available to authorized persons only. To restore the lock immediately, select the symbol by turning and pressing the control element. Multiplex Trio E3 fitting, electronic mixing unit... - Page 38 If you have changed the key code and then forgotten it, you can set a new key code as described above. You do not need to enter the old key code. Restoring the factory settings on the mixing unit Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 39: Cleaning Functions
The display element shows a progress bar (see figure on the left). You can disable the care mode before expiry of the 45 seconds by selecting the symbol in the menu. Multiplex Trio E3 fitting, electronic mixing unit... - Page 40 Briefly press the operating or display ele‐ ment. Result Thermal disinfection starts. The display element shows a progress bar (see figure on the left). During thermal disinfection, the illuminated ring of the control element flashes red as a warning. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 41: System Diagnosis And Statistics
After completion of the diagnosis, the findings are indicated in the bottom centre of the display. The following results of a diagnosis can be indicated: Symbol Findings No malfunctions Temperature sensor malfunction Malfunction of the volumetric flow sensor Multiplex Trio E3 fitting, electronic mixing unit... - Page 42 Number of call-ups of personal settings with indication of the respective number (with a maximum deviation of ten call- ups) Number of thermal disinfections carried out Number of minutes in battery mode (with a maximum devia‐ tion of ten minutes) Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 43: Troubleshooting
Hot or cold water valve not fully Fully open the corner valves open Connection hoses kinked Check laying of the hoses Connection lines clogged Flush the lines Clean the filter Reservoir empty Check reservoir Multiplex Trio E3 fitting, electronic mixing unit... - Page 44 Motors not calibrated Carry out the "Diagnosis" function Ä ‘Using the diagnosis mode’ on page 41 Valves do not close Carry out the "Diagnosis" function Ä ‘Using the diagnosis mode’ on page 41 Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 45: Care And Maintenance
Strong stains can be removed using typical household cleaner. Rinse the detergent very thoroughly with clear water after the prescribed dwell time. There should be no residue on the components. Multiplex Trio E3 fitting, electronic mixing unit... -
Page 46: Maintenance
If the rechargeable battery is not sufficiently charged (e.g. due to age), the mixing unit will close and can no longer be used. The control ele‐ ment then flashes red five times. Viega recommends replacing the battery every 3–5 years, depending on use. Viega recommends replacing the battery every 3–5 years, depending on use. -
Page 47: Replacing The Rechargeable Battery
Turn the water supply to the mixing unit back on. 3.5.4 Replacing the rechargeable battery Viega recommends replacing the battery every 3–5 years, depending on use. If the rechargeable battery is not suffi‐ ciently charged (e.g. due to age), the mixing unit will close and can no longer be used. - Page 48 Loosen the screws of the casing cover and store them. ▶ Remove the casing cover. ▶ Pull the plug straight out of the control. ▶ Remove the rechargeable battery from the mixing unit and dispose of it properly. Multiplex Trio E3 fitting, electronic mixing unit...
-
Page 49: Disposal
Place the casing cover on the mixing unit and refasten it. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Multiplex Trio E3 fitting, electronic mixing unit... - Page 50 Viega GmbH & Co. KG service-technik@viega.de viega.com INT • 2023-05 • VPN180383...
