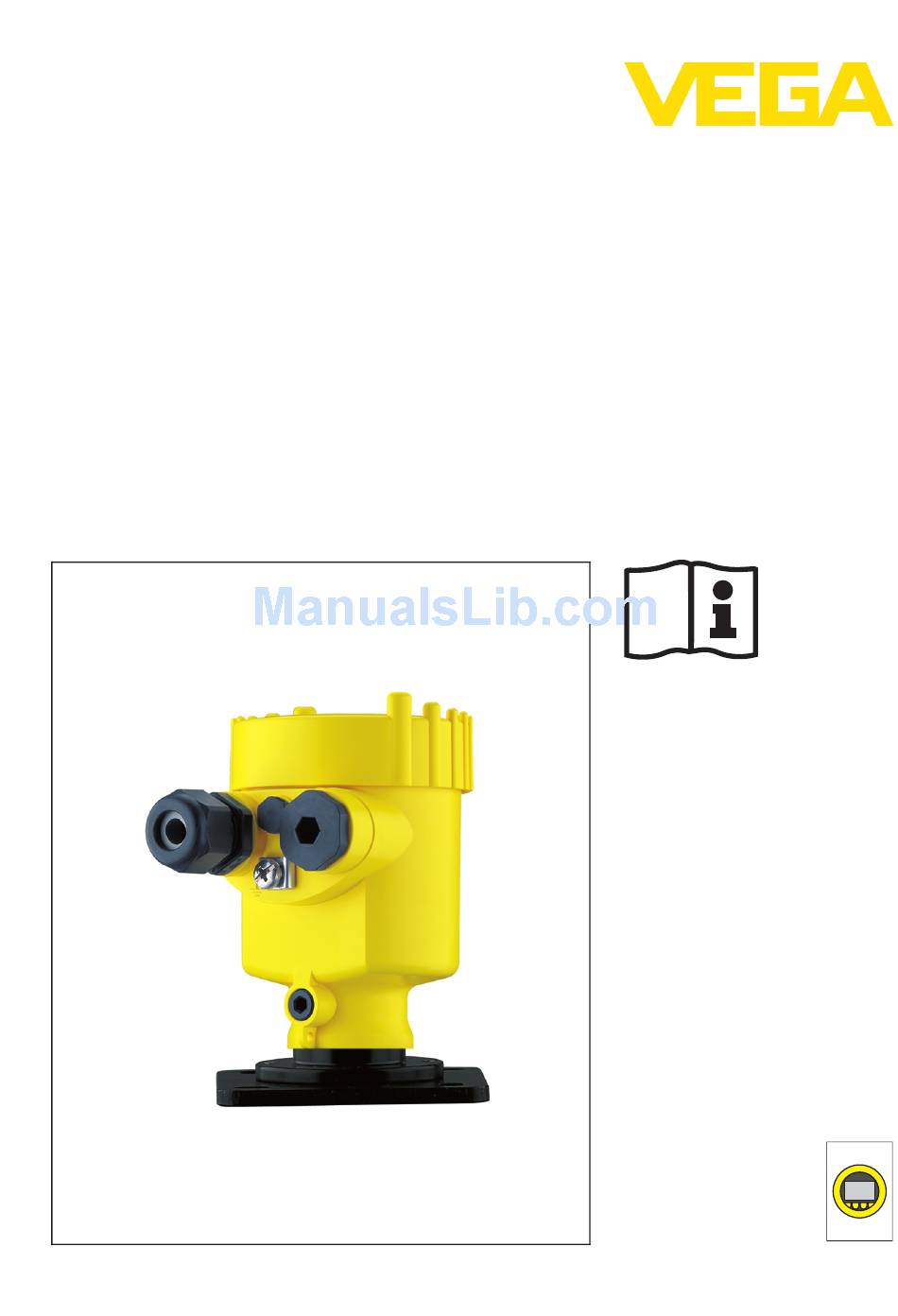

Page 1: Operating Instructions
Operating Instructions VEGADIS 61 Document ID: 27720 Indication and adjustment... -
Page 2: Table Of Contents
Technical data ......23 Dimensions ....... 25 VEGADIS 61... -
Page 3: Editing Status: 2012
Contents Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product description". Editing status: 2012-03-15 VEGADIS 61... -
Page 4: About This Document
This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGADIS 61... -
Page 5: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. 2.2 Appropriate use VEGADIS 61 is an external indicating and adjustment unit for VEGA ® plics sensors. You can find detailed information on the application range in chapter "Product description". -
Page 6: Safety Label On The Instrument
The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: Chapter "Packaging, transport and storage" Chapter "Disposal" VEGADIS 61... -
Page 7: Product Description
Housing with electronics Housing cover with integrated indicating and adjustment module The components are available in different versions. Fig. 1: VEGADIS 61 with plastic housing and mounting plate for wall mounting Housing cover with integrated indicating and adjustment module Housing with electronics... -
Page 8: Principle Of Operation
Operating instructions at the time of shipment (PDF) Go to www.vega.com, "Service" "VEGA Tools" and "serial number search". 3.2 Principle of operation The VEGADIS 61 is an external indicating and adjustment unit for ® VEGA plics sensors. The device enables remote measured value indication and adjustment of sensors at measuring sites that are difficult to access. - Page 9 3 Product description Application examples Fig. 3: Connection of VEGADIS 61 to the sensor. The measured value indication and sensor adjustment are carried out via the integrated indicating and adjustment module Voltage supply/Signal output sensor Sensor Connection cable VEGADIS 61 - Sensor...
-
Page 10: Packaging, Transport And Storage
3 Product description The VEGADIS 61 is connected with a four-wire cable to the sensor. Connection Via this cable, the communication and power supply of VEGADIS 61 is carried out through the sensor. Additional external energy is not required. Permissible cable lengths, see chapter "Technical data". -
Page 11: Mounting
4.2 Instructions for installation VEGADIS 61 for wall mounting is supplied with a mounting socket. Wall mounting 12 mm (0.47") 62 mm (2.44") 85 mm (3.35") Fig. 6: VEGADIS 61 for wall mounting, bottom view of mounting plate. Drilling dimensions VEGADIS 61... - Page 12 4 Mounting VEGADIS 61 for mounting on carrier rail is supplied with a mounting Carrier rail mounting adapter. Fig. 7: VEGADIS 61 for carrier rail mounting Adapter plate with screw M4 x 6 Carrier rail VEGADIS 61 for tube mounting is supplied with a meas. instrument Tube mounting holder and four screws M5 x 12 as mounting accessory.
-
Page 13: Connecting To The Sensor
VEGADIS 61 as well as the sensor. Cable screening and Connect the cable screen on both ends to ground potential. In VEGADIS 61 and in the sensor, the screen must be connected directly grounding to the internal ground terminal. The ground terminal on the outside of the housing must be connected to the potential equalisation (low impedance). - Page 14 (low impedance) 12 Tighten the compression nut of the cable entry. The seal ring must completely encircle the cable 13 Screw the housing cover back on The electrical connection is finished. Fig. 9: Connection steps 6 and 7 VEGADIS 61...
-
Page 15: Wiring Plan
HART Display 5 6 7 8 Fig. 11: Wiring plan VEGADIS 61 for 4 … 20 mA/HART sensors To the sensor Ground terminal for connection of the cable screen Connect screen here. Connect ground terminal on the outside of the housing as prescribed. - Page 16 Terminal 8 Connection via ready-made cable with 4-pin socket M12 x 1 Connection between VEGADIS 61 and sensor with 4-pin plug M12 x 1 is carried out according to the following chart. The specification of the wire colours refers to the ready-made cable from our own product line...
- Page 17 5 Connecting to the sensor Wire colour VEGADIS 61 Terminal 5 Black Terminal 6 White Terminal 7 Blue Terminal 8 Brown VEGADIS 61...
-
Page 18: Short Description
Screw housing cover with inspection window tightly back on Removal is carried out in reverse order. The indicating and adjustment module is powered by the sensor, an additional connection is not necessary. VEGADIS 61... -
Page 19: Adjustment System
6 Set up with the indicating and adjustment module Fig. 13: Installation of the indicating and adjustment module 6.3 Adjustment system Fig. 14: Indicating and adjustment elements LC display Indication of the menu item number Adjustment keys VEGADIS 61... -
Page 20: Setup Steps
Any values not confirmed with [OK] will not be saved. 6.4 Setup steps Setup and adjustment of the respective sensor is carried out according to the operating instructions manual of the respective sensor. VEGADIS 61... -
Page 21: Maintenance And Fault Rectification
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is available to you 7 days a week round-the-clock. Since we offer this service world-wide, the support is only available in the English language. -
Page 22: Dismounting
Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGADIS 61... -
Page 23: Supplement
9 Supplement 9 Supplement 9.1 Technical data General data 316L corresponds to 1.4404 or 1.4435, 316Ti corresponds to 1.4571 Materials VEGADIS 61 plastic PBT, Alu die-casting, 316L Housing Inspection window in housing cover for Polycarbonate (UL-746-C listed) indicating and adjustment module... - Page 24 Instruments with approvals can have different technical data depending on the version. That's why the associated approval documents have to be noted with these instruments. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools" and "serial number search" as well as via "Downloads" and "Approvals".
-
Page 25: Dimensions
½ NPT ½ NPT ½ NPT ~ 116 mm (4.57") ø 84 mm (3.31") M20x1,5/ M20x1,5 ½ NPT Fig. 15: VEGADIS 61 housing versions Plastic housing Stainless steel housing - precision casting Stainless steel housing, electropolished Aluminium housing VEGADIS 61... -
Page 26: Vegadis
9 Supplement mounting elements VEGADIS 61 60mm (2 ") 70mm (2 ") 84mm (3 ") Fig. 16: VEGADIS 61 mounting elements Mounting plate for wall mounting Clip for carrier rail mounting Strap for tube mounting VEGADIS 61... - Page 27 Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com Линии...
- Page 28 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2012 27720-EN-120329 Subject to change without prior notice...
