Operating Instructions

External display and adjustment unit for
4 ... 20 mA/HART sensors
VEGADIS 82
4 ... 20 mA/HART
Document ID: 45300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGADIS 82 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vega VEGADIS 82

  • Page 1: Operating Instructions

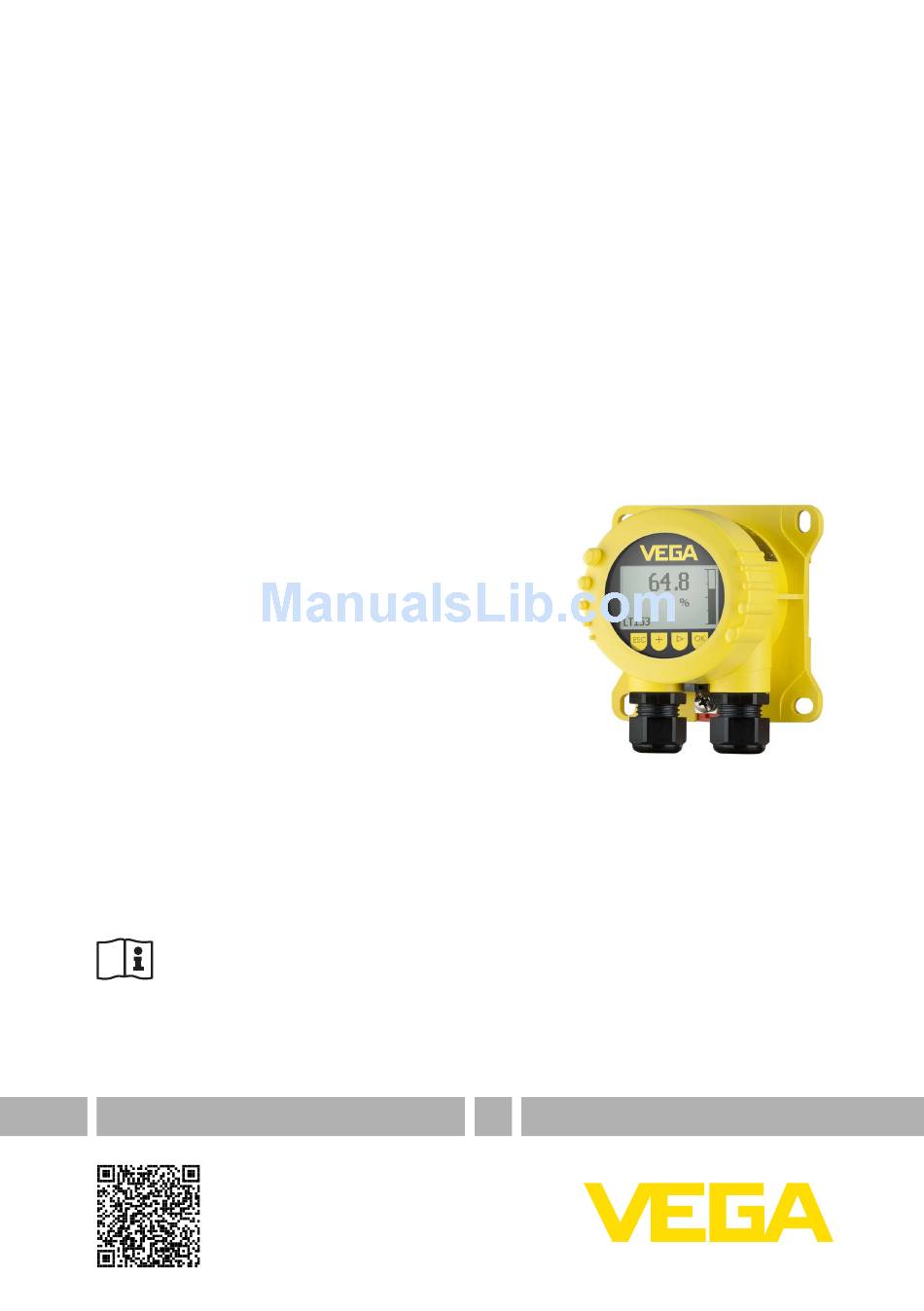

    Operating Instructions External display and adjustment unit for 4 … 20 mA/HART sensors VEGADIS 82 4 … 20 mA/HART Document ID: 45300...
