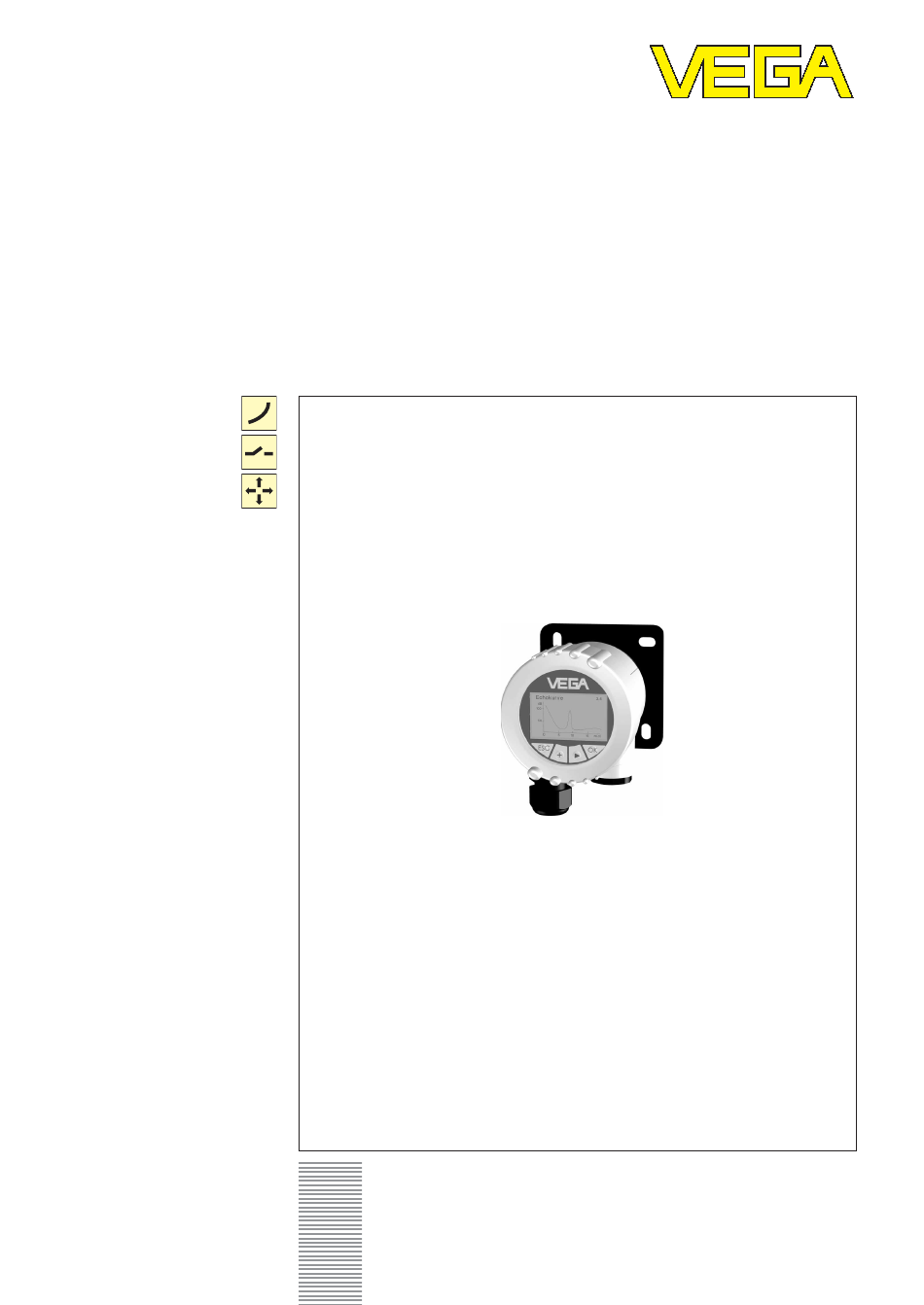

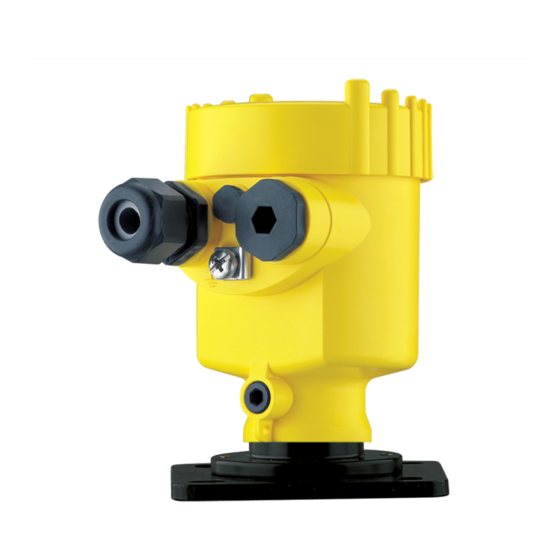

  • Page 1 Indication and Adjustment Product Information VEGADIS 61 Level Switching Pressure...
  • Page 2 VEGADIS 61...

  • Page 3: Table Of Contents

    3.1 Prepare connection ..................... 6 5.3 Wiring plans ....................... 6 Set-up with the indicating and adjustment module PLICSCOM ... 7 4.1 Adjustment system .................... 7 4.2 Set-up procedure ....................7 Supplement ....................8 Technical data ......................8 Dimensions ......................... 9 VEGADIS 61...

  • Page 4: Product Description

    PLICSCOM located below Power supply VEGADIS 61 is connected to the sensor via a four-wire, screened standard cable with a Mounting plate length of max. 25 m. An extra power supply is housing with not required.

  • Page 5: Mounting

    Mounting 2 Mounting Select installation position Protection against moisture VEGADIS 61 functions in any installation posi- Protect VEGADIS against moisture. tion. It is mounted either on a mounting plate or –> lead the connection cable located in front of rail 35 x 7.5 acc. to DIN EN 50 022. The housing the cable entry downwards.

  • Page 6: Connecting To The Sensor

    VEGADIS 61. 5 6 7 8 Select connection cable Spring terminal VEGADIS 61 is connected with standard four- for connection of wire cable to the sensor. An outer diameter of the sensor 5 … 9 mm ensures the seal effect of the cable entry.

  • Page 7: Set-Up With The Indicating And Adjustment Module Plicscom

    4.2 Set-up procedure The set-up and adjustment of the sensors must be carried out according to the operating in- structions of the sensor and the indicating and adjustment module PLICSCOM. VEGADIS 61...

  • Page 8: Supplement

    0.35 kg Ambient conditions Ambient temperature -20 … +70°C Storage and transport temperature -40 … +85°C Adjustment module PLICSCOM Supply and data transfer with VEGADIS 61 via sliding contacts (I²C-Bus) Display LC-Display in Full-Dot-Matrix Adjustment elements IP 20 Materials – housing –...

  • Page 9: Dimensions

    Supplement Dimensions VEGADIS 61 ca. 69,5 ø 77 M20x1 M20x1,5 VEGADIS 61...
  • Page 10 Supplement VEGADIS 61...
  • Page 11 Supplement VEGADIS 61...
  • Page 12 VEGA Grieshaber KG Am Hohenstein 113 77761 Schiltach Germany Phone +49 7836 50-0 +49 7836 50-201 E-mail info@de.vega.com www.vega.com You will have on our homepage www.vega.com under VEGA online Downloads of the following operating instructions manuals menu schematics software certificates approvals and many of other things.
