EVALUATION BOARD SOFTWARE

The control software for the
the EVAL-ADF4351EB1Z on a CD. To install the software, see
the Software Installation section.
To run the software, click the ADI ADF435x file on the desktop
or in the Start menu.
On the Select Device and Connection tab, choose your device,
your connection method, and click Connect.
EVAL-ADF4351EB1Z accompanies

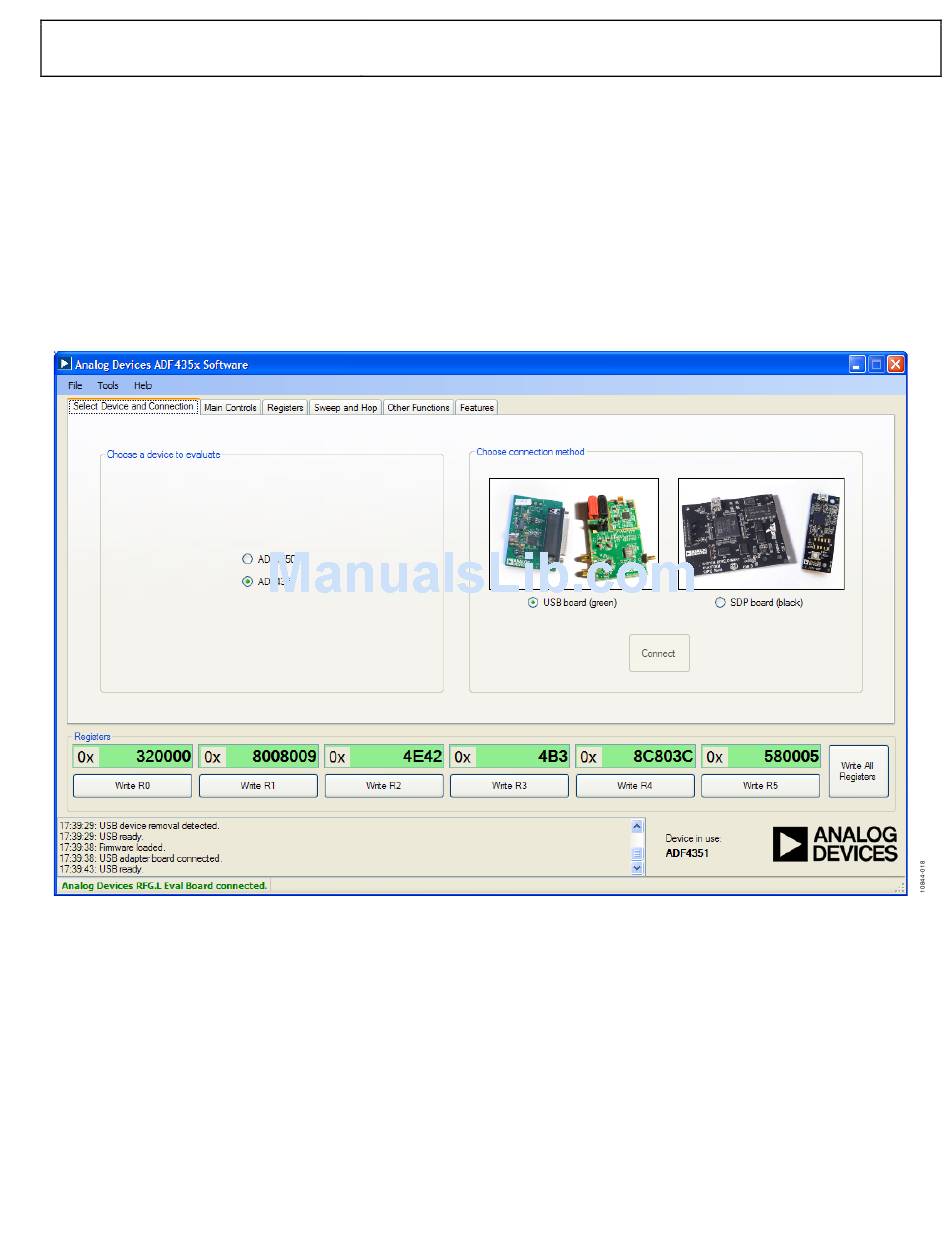

Figure 18. Software Front Panel Display—Select Device and Connection
Confirm that SDP board connected, ADF4xxx USB Adapter
Board connected, or Analog Devices RFG.L Eval Board
connected is displayed at the bottom left of the window.
Otherwise, the software has no connection to the evaluation
board.
Note that, when connecting the board, it takes about 5 sec to
10 sec for the status label to change.
Under the File menu, the current settings can be saved to and
loaded from, a text file.
