4079-00X
Manual Printhead Capping (Disabled Machine)
If there is no power to the machine and the printheads must be
capped, follow this procedure.

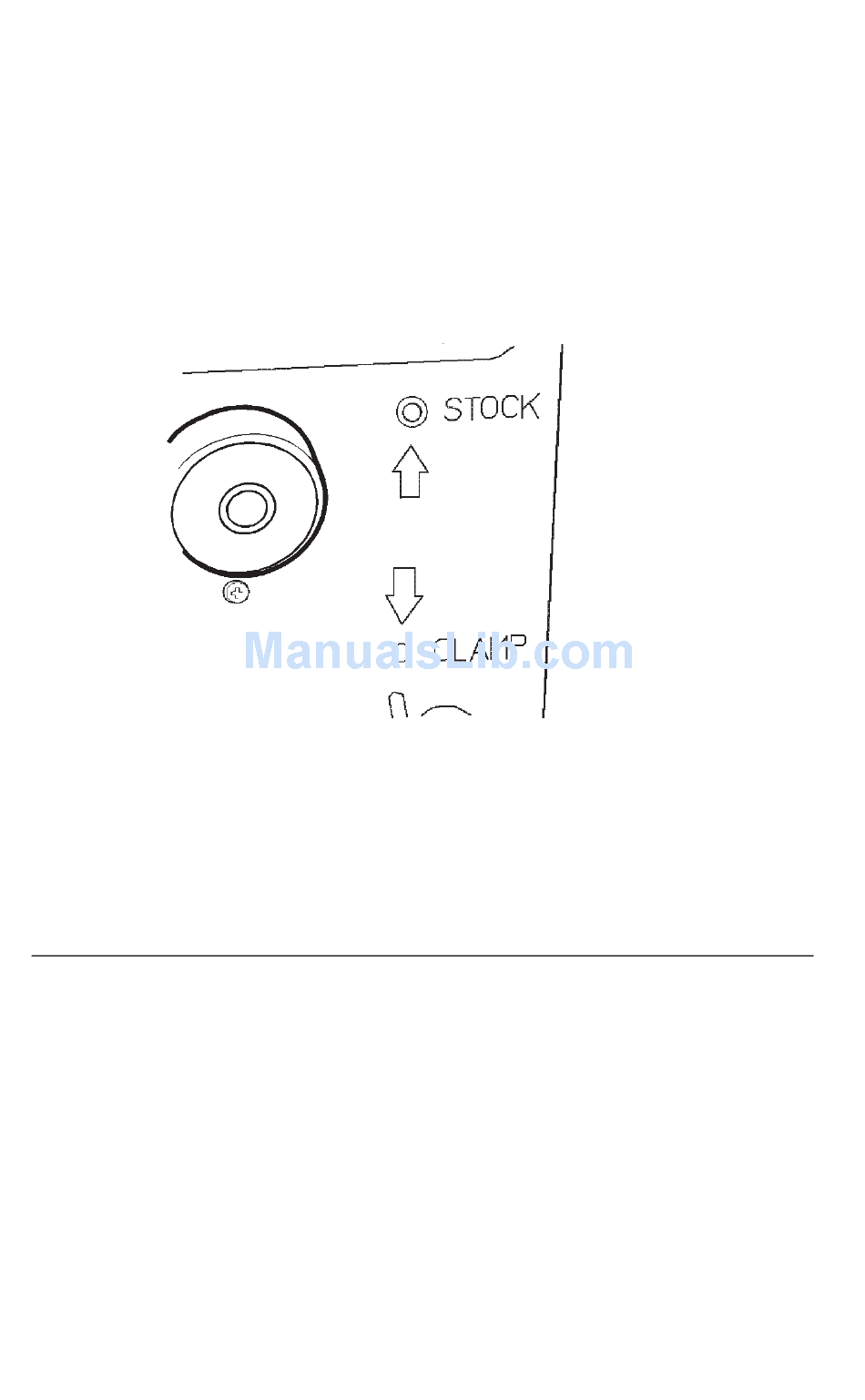

Remove the screw from the hole marked Stock in the base and
insert it in the hole marked Clamp.
As the screw is tightened, the capping mechanism is raised and the
printheads are capped.
Warning: You must remove this screw before the machine can be
used under power or to uncap the printheads for servicing.
Removal Procedures
The removals in this section are arranged in alphabetical order.
It is assumed that the machine is turned off, power cord is
unplugged, and the covers are removed before starting these
procedures. (See
To install parts, reverse the removal procedure, giving attention to
any special conditions listed.
4-11
"Cover Removals" on page
4-28).
