System Statuses

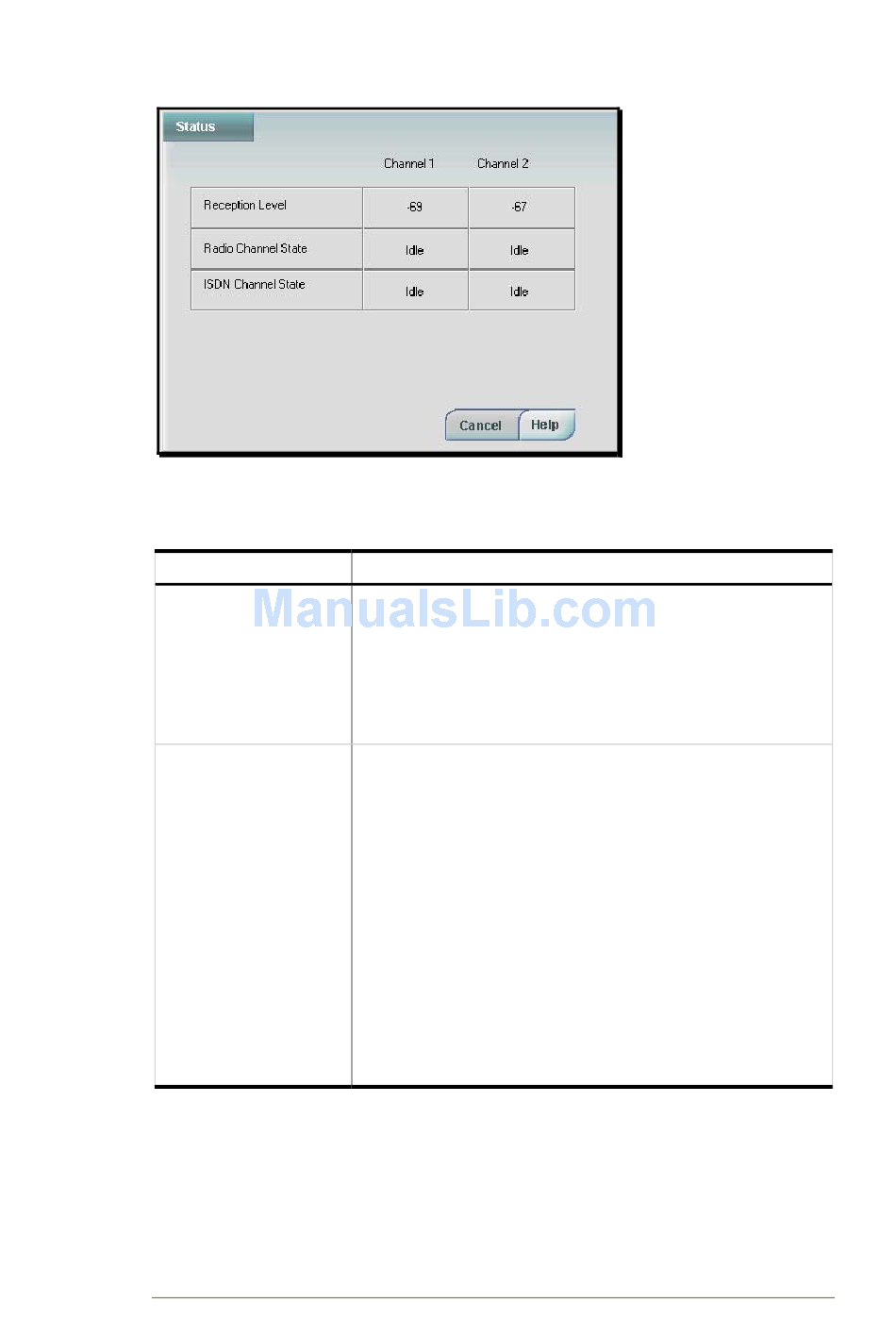

The Status window provides a dynamic display of the following status levels
for each radio channel. For more details on Error messages, which are also
displayed on the LCD, see page 15.
Status
Reception Level
Radio Channel Status
States
CGW-I Cellular Gateway BRI-GSM : Installation and Operation Manual
Description
The level of the received signal.
Range: -113 dBm (weak) to -51dbm (hi).
If reception level is low, the antenna location or type of cable
may need to be improved.
Suggestions to improve antenna placement: move close to
window or to a higher floor, place on larger metal plate,
connect cable providing lower signal loss.
Displays status of each radio channel:
• Idle
• Calling Out
• Connected
• Disconnecting
• Ringing In
• Initialize
• Stopped
• HW Reset
• No Radio Engine
• Disable
• Sending SMS
• No SIM Time.
(Receiving incoming call)
(After Reset or Power Up)
(Due to communication error)
