  • Page 1 CelluLine CGW-T GSM Gateway Installation and Programming Manual...
  • Page 3 CelluLine CGW-T Installation and Programming Manual Release 4, Revision 3, April 2004...
  • Page 4 NOTICE This manual describes the CelluLine CGW-T GSM Gateway. Additional copies of this manual may be obtained from ITS. No part of this document may be reproduced or transmitted in any form, by any means (electronic, photocopying, recording, or otherwise) without the prior written permission of ITS.

  • Page 5: Table Of Contents

    Table of Contents Introduction ....................1 Main Features....................2 Physical Description..................3 Pre-Installation ...................5 Installation....................7 SIM Card Insertion in the CelluLine CGW-T Unit ........7 CelluLine CGW-T Installation..............8 LCD Status Indicators and Diagnostics ...........9 LCD Status Indicators ...................9 Diagnostics....................12 DTMF Programming ................13 Technical Data ..................19...

  • Page 7: Introduction

    Introduction ITS is introducing the GSM Gateway – CelluLine CGW-T, a GSM cost reduction tool. In a period, in which companies focus on cost reduction (without influencing the integrity of the company), the CelluLine CGW-T will play an important role. The unit directly connects your PBX to the GSM network, eliminating the excessive interconnection fees, thus cutting your telephone costs significantly.

  • Page 8: Main Features

    Main Features The following is a list of Main Features of the CelluLine CGW-T GSM Gateway: • Integrated dual-band GSM module (900/1800, 850/1900 MHz) • Built-in LCD • Signal strength indicator • Cellular operator name indicator • Operational status •...

  • Page 9: Physical Description

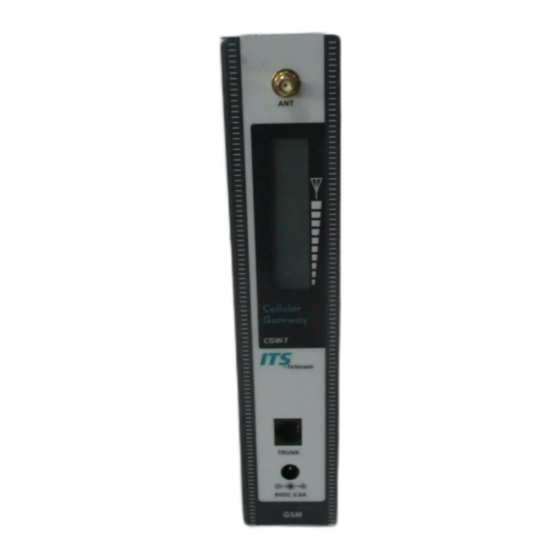

    Physical Description The Front panel of the CGW-T contains: The antenna connector The LCD The Trunk connector The Power Supply connector The Bottom to the CGW-T contains: The SIM release lever The SIM card tray CelluLine CGW-T Installation and Programming Manual...

  • Page 11: Pre-Installation

    2 Pre-Installation The CelluLine CGW-T unit contains a GSM engine. It therefore needs a SIM card from the local GSM network provider. Its registration to the GSM operator is similar to the registration of a mobile GSM phone. The PIN & PUK code request must be disabled. Is this not the case, use any GSM mobile phone to modify the SIM card or contact the local GSM Service Center.

  • Page 13: Installation

    SIM Card Insertion in the CelluLine CGW-T Unit Caution To avoid damage to the CelluLine CGW-T unit, the 9V adapter should be disconnected from the electric power-outlet. The physical description of the unit can be used as guideline for the following steps: •...

  • Page 14: Celluline Cgw-T Installation

    CelluLine CGW-T Installation • Mount the CelluLine CGW-T unit on the wall as a stand-alone unit or on the 6-fold wall mount bracket, which is a separate accessory. • Connect the Antenna into the Ant. connector on the side panel of the CelluLine CGW-T unit.

  • Page 15: Lcd Status Indicators And Diagnostics

    4 LCD Status Indicators and Diagnostics The CelluLine CGW-T GSM Gateway can be connected to the analog trunk interface of the PBX. At power-up of the CelluLine CGW-T GSM Gateway unit, the information on the LCD will provide the first diagnostics. In many cases further diagnostics is not needed. By connecting an analog telephone with the RJ-11 connector to the trunk connector in the unit, you are able to perform further diagnostics.
  • Page 16 No action is needed. mobile network). Calling… CGW-T dials to destination. Wait. Connected When called party answers. No action needed. Disconnected End of call. No action needed. CGW-T gets call from Incoming Call No action needed. network. CelluLine CGW-T Installation and Programming Manual...
  • Page 17 3. Check with your GSM operator. Registration denied and/or Replace the SIM card. Reg. Denied SIM card is not readable. Contact your GSM operator. Insert SIM Card No SIM card inserted. Insert SIM card. CelluLine CGW-T Installation and Programming Manual...

  • Page 18: Diagnostics

    Connect an analog telephone to the trunk connector (RJ-11) on the unit. Pick up the phone and if you receive: • A continuous dial tone, the unit is working correctly. • A busy tone, check for a message on the LCD. CelluLine CGW-T Installation and Programming Manual...

  • Page 19: Dtmf Programming

    After hearing the confirmation tone, enter the password (1234 by default). Notes: The CelluLine CGW-T will not answer any incoming calls when the analog telephone is directly connected to the unit. Exit from the programming mode by *900 or hanging up the telephone.
  • Page 20 3 seconds (default), before the dialing starts. Exactly XX digits, then the number will be dialed directly. More than XX digits, then the number will be cut off after XX has been reached. CelluLine CGW-T Installation and Programming Manual...
  • Page 21 This 2 = Reverse polarity for parameter is useful if call Incoming and Outgoing Calls accounting software is active. Output Volume Control. *330 + X where: X = 0 – 9 (9 is highest) CelluLine CGW-T Installation and Programming Manual...
  • Page 22 LCD for 5 seconds when in programming mode. Conversation Time-Out. *390 + XX 00 (unlimited) where: The telephone XX = number of minutes conversation will be 00 = unlimited automatically terminated after this time-out. CelluLine CGW-T Installation and Programming Manual...
  • Page 23 *400 + # (delete the whole restricted number list) Roaming. *500 + X where: The CGW-T will be able X = 0, off to register with another X = 1, on GSM operator. CelluLine CGW-T Installation and Programming Manual...
  • Page 24 X = 1, on restricted to show its SIM telephone number. Change programming *600 + new password 1234 password. where: password must be 4 digits (only digits 0-9) Reset the unit and set to *151 default values. CelluLine CGW-T Installation and Programming Manual...

  • Page 25: Technical Data

    RJ-11 (Trunk) - To analog trunk interface of PBX • Power Supply • SMA female - Antenna Off-hook AC impedance 600Ω On-hook line voltage 48VDC Off-hook line current Maximum 25mA Off-hook loop resistance 800Ω threshold Dial tone frequency 400Hz CelluLine CGW-T Installation and Programming Manual...
  • Page 26 800 - 2000MHz Antenna cable length 9.8ft Power supply Input: 110VAC, 60Hz 220VAC, 50Hz Output: 9VDC, 800mA Temperature range 0˚C-45˚C 32˚F-113˚F Maximum relative humidity Dimensions (HxWxD) 213x43x123mm / 8.4x1.7x4.8inch Weight 800g (1.76 lbs) CelluLine CGW-T Installation and Programming Manual...

  • Page 27: Celluline Cgw-T Accessories

    7 CelluLine CGW-T Accessories Currently there are 3 accessories for the CelluLine CGW-T gateway: Multiple Antenna Holder (holds 6 antenna’s) Wall Mount Bracket for 6 units and 3 units CelluLine CGW-T Installation and Programming Manual...
