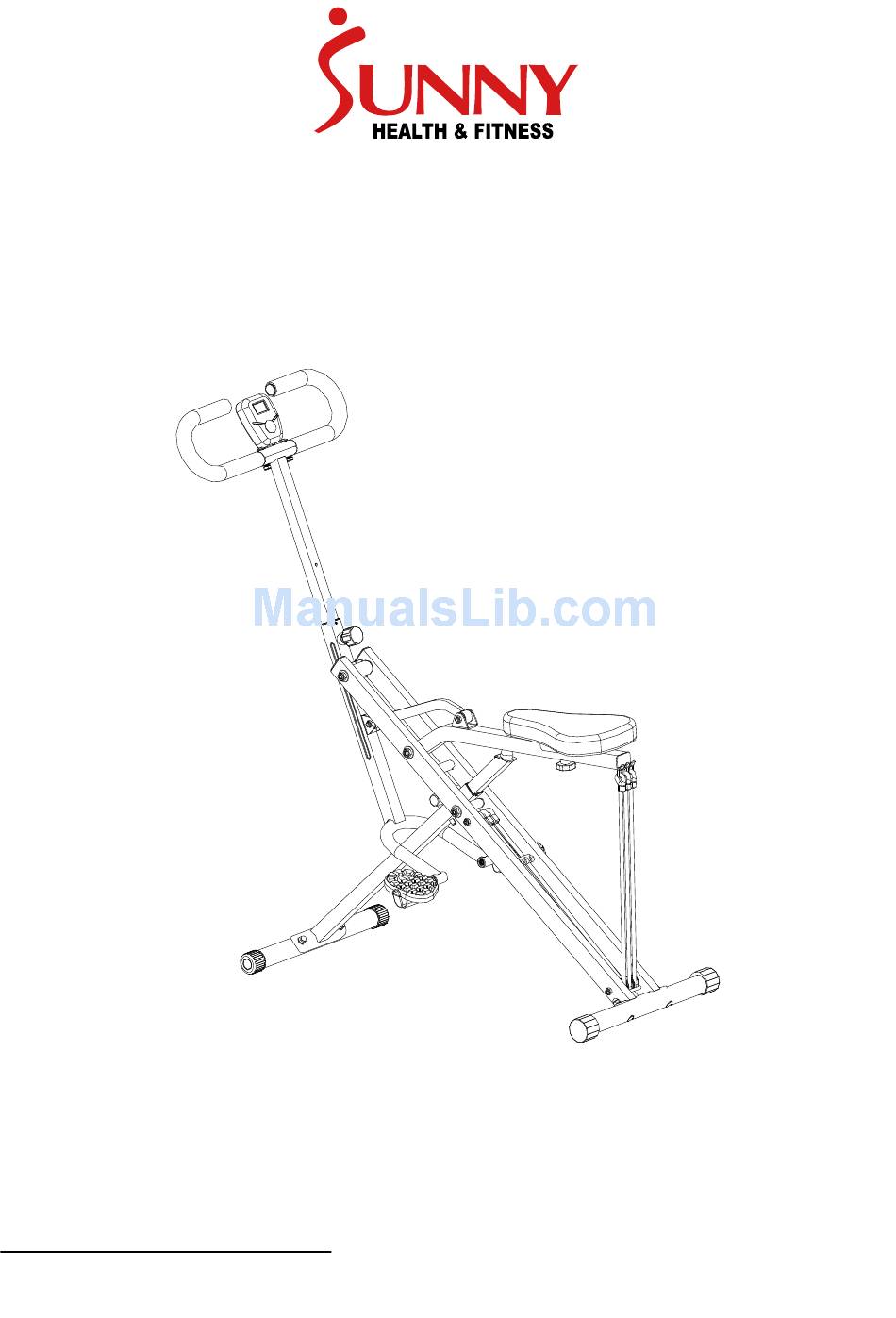

- Page 1 Upright Row-N-Ride Exerciser No. 077 IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Open the product as shown in the picture below. 2. Attach the Front and Rear Stabilizers (No. 15 and No. 16) to the Main Frame (No. 8) using 4 Bolts (No. 14), 4 Nuts (No. 12) and 4 Washers (No. 4) and secure with Spanner (B). 3. - Page 6 4. Loosen the Knob (No. 7) and insert the Handle Bar Tube (No. 6) into the Main Frame (No. 8). Tighten the Knob (No. 7) to secure. 5. Attach the Handle Bar (No. 3) to the Handle Bar Tube (No. 6) using 2 Bolts (No. 2), 2 Washers (No.
- Page 7 8. The assembly is completed!
-
Page 8: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME…………………………………………………..00:00-99:59 Min/Sec. COUNT………………………………………………... 0-9999 STROKES CALORIES…………………………………………… .0-9999KCAL TOTAL CNT……………………………………………….0-9999 STROKES FUNTION: 1. TIME: Displays the workout time while exercising. 2. COUNT(CNT) Accumulate the strokes while exercising. 3. CALORIES(CAL) Displays calories amount burned while exercising. 4. TOTAL CNT(TOT.CNT) Displays the total number of strokes since batteries installed. -
Page 9: Adjustment Instructions
ADJUSTMENT INSTRUCTIONS Handle Bar Tube Adjustment: Loosen the Knob (No. 7) and pull. Raise or lower the Handle Bar Tube (No. 6) to desired height. Tighten the Knob (No. 7). Seat Adjustment: Loosen and remove the knob located under the Seat Post. Move seat, insert knob and tighten to secure. - Page 10 Seat Tube Adjustment: To adjust the Seat Tube, lift the Seat Post. Remove Pin (No. 13) and raise or lower the Seat Tube. Insert pin to secure. Lower the Seat Post. Raising or lowering Seat Tube will change the difficulty of your exercise. Exercise Band adjustment: You can adjust the difficulty of your exercise by adjusting the Exercise Bands.
-
Page 11: Folding Instructions
FOLDING INSTRUCTIONS a. Adjust the handle bar post to the lowest level b. Adjust the seat tube to the lowest level c. Hold the handle bar and fold the product. Version 1.1...
