CyberData 011049 Operation Manual page 67

Web Page Item
Current Time
Encryption
Encryption Key
Door State
Relay State
Button State
LED
Alarm State
JP4, 6, 9, 10
Note
Operations Guide
Table 2-20. DSR Page Configure Device Parameters (continued)
Description
Sets the current time.
Note: Be sure to save the current time by clicking on the Set Time button.
Encryption can either be set to None or AES-256.
Sets the AES encryption key. If encryption is currently enabled, the
response to this command will be sent using the "old" key. The new key
should be sent as 64 ASCII hexadecimal characters.
This field displays the current door state and is not configurable.
This field displays the current relay state and is not configurable.
This field displays the current button state and is not configurable.
This field displays the current LED state and is not configurable.
This field displays the current alarm state and is not configurable.
This shows whether jumpers JP4, JP6, JP9, or JP10 are either enabled or
disabled through the four digit sequence (0000). The 0 turns to 1 for an
enabled jumper. For example, 0011 would mean jumpers JP9 and JP10
are activated, but JP4 and JP9 are not.

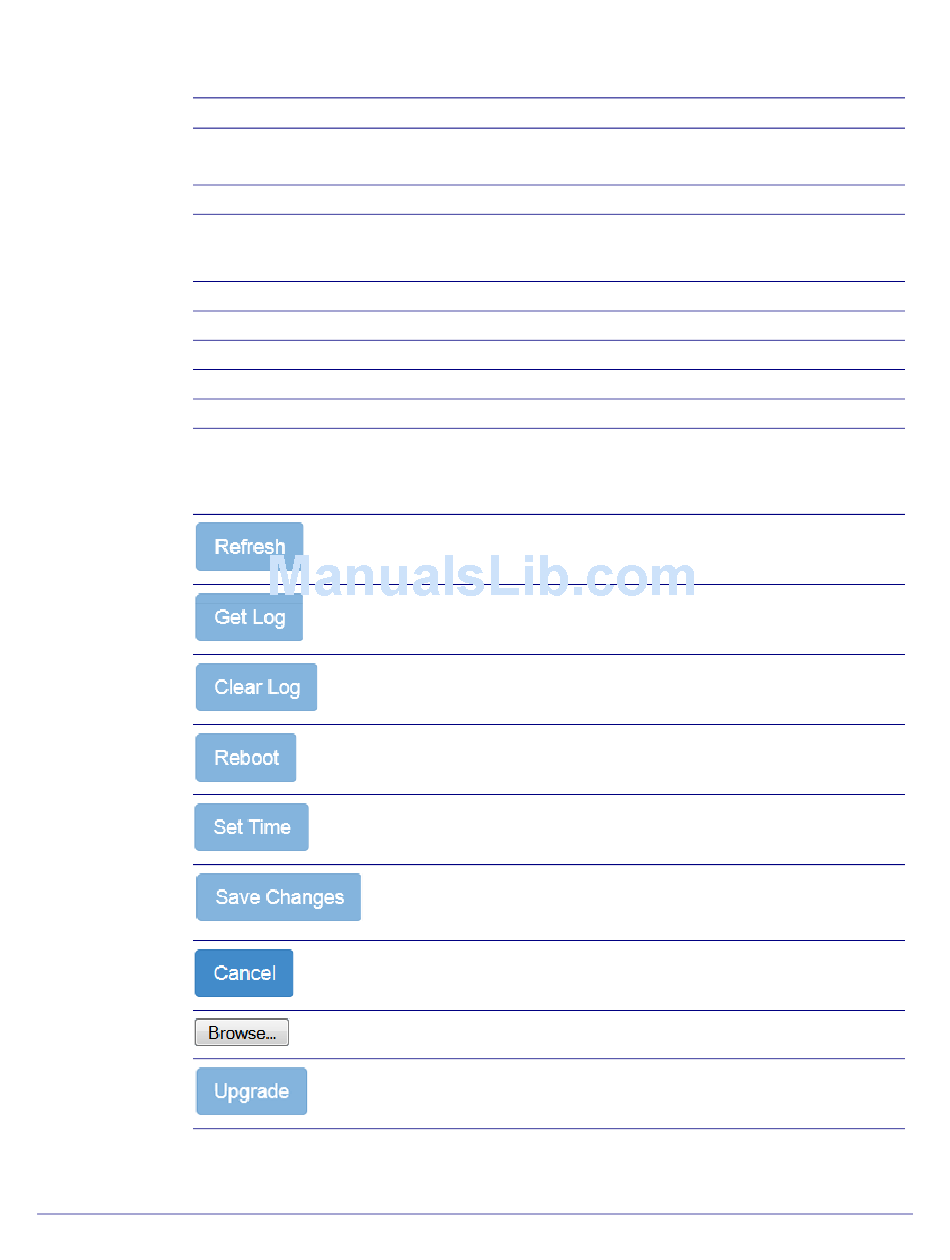

Click on the Refresh button to refresh the Device Configuration page.
Click on the Get Log button to get a log of the associated door strike relay
activity. The door strike relay has 128Kb non-volatile storage for log data,
storing an average of 10 days' worth of log data before it is overwritten.
Click on the Clear Log button to clear the log from the door strike relay
Click on the Reboot button to reboot any "discovered" remote relays and
clear any associated devices.
Click on the Set Time button to change the time.
Click on the Save Changes button to save any changes that are made to
the Device Configuration page.
Note: The time setting must be saved by pressing the Set Time button.
Click on the Cancel button to cancel any changes that were made to the
Configure Device page and return to the DSR page.
Click on the Browse button to navigate through your computer and find
firmware files.
Click on the Upgrade button to upgrade the firmware of the door strike
relay.
You must click on the Save button and then the Reboot button for the changes to take
effect.
