2. On the Device page, you may enter values for the parameters indicated in
Note
Web Page Item
Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
Activate Relay While Call Active
Activate Relay on Button Press
Relay on Button Press Duration
Misc Settings
Device Name
Auto-Answer Incoming Calls
Button Lit When Idle
Button Brightness (0-255)
Play Ringback Tone
Operations Guide
The question mark icon (
after the Toggle Help button is pressed

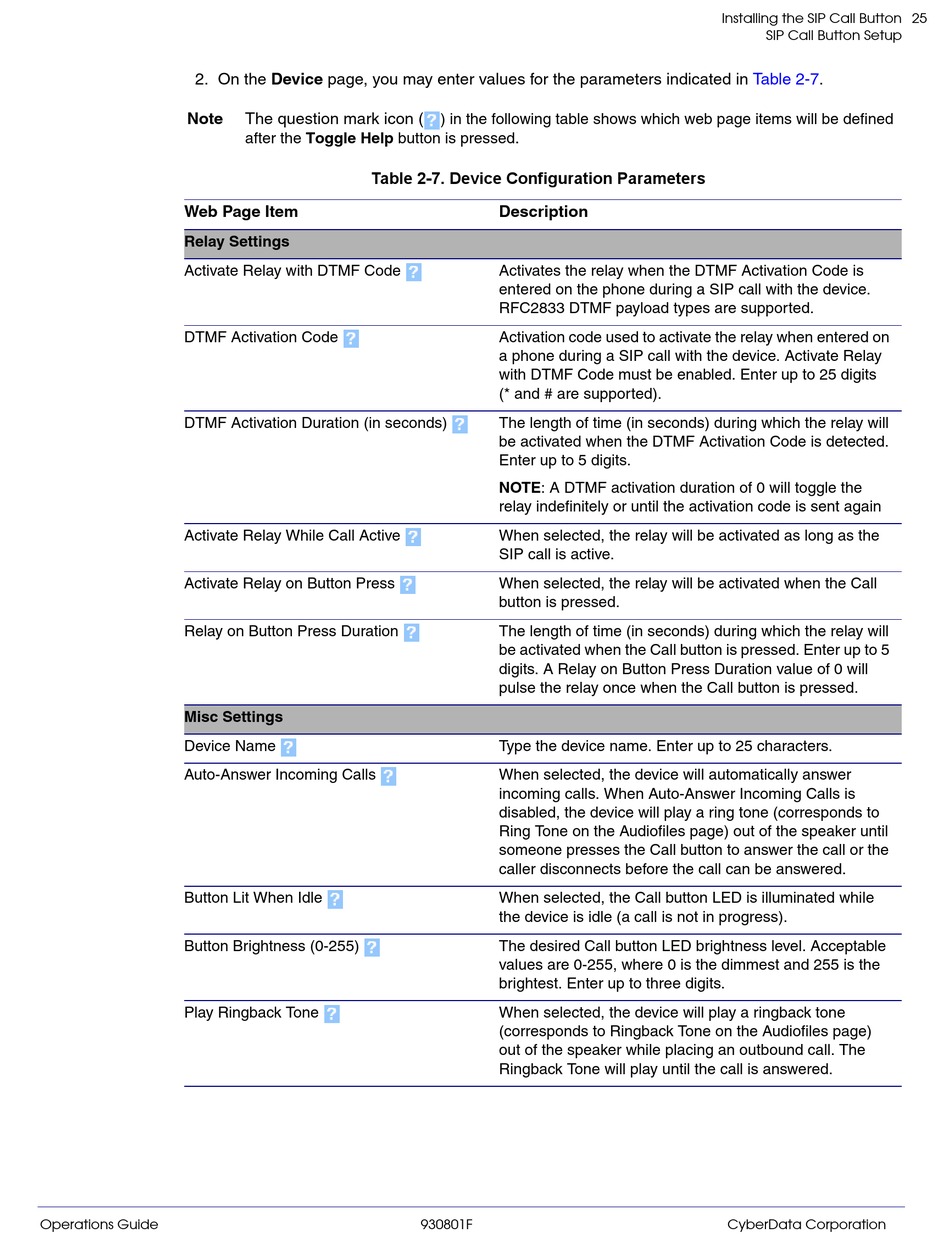

Table 2-7. Device Configuration Parameters
930801F
) in the following table shows which web page items will be defined
.
Description
Activates the relay when the DTMF Activation Code is
entered on the phone during a SIP call with the device.
RFC2833 DTMF payload types are supported.
Activation code used to activate the relay when entered on
a phone during a SIP call with the device. Activate Relay
with DTMF Code must be enabled. Enter up to 25 digits 
(* and # are supported).
The length of time (in seconds) during which the relay will
be activated when the DTMF Activation Code is detected.
Enter up to 5 digits.
NOTE: A DTMF activation duration of 0 will toggle the
relay indefinitely or until the activation code is sent again
When selected, the relay will be activated as long as the
SIP call is active.
When selected, the relay will be activated when the Call
button is pressed.
The length of time (in seconds) during which the relay will
be activated when the Call button is pressed. Enter up to 5
digits. A Relay on Button Press Duration value of 0 will
pulse the relay once when the Call button is pressed.
Type the device name. Enter up to 25 characters.
When selected, the device will automatically answer
incoming calls. When Auto-Answer Incoming Calls is
disabled, the device will play a ring tone (corresponds to
Ring Tone on the Audiofiles page) out of the speaker until
someone presses the Call button to answer the call or the
caller disconnects before the call can be answered.
When selected, the Call button LED is illuminated while
the device is idle (a call is not in progress).
The desired Call button LED brightness level. Acceptable
values are 0-255, where 0 is the dimmest and 255 is the
brightest. Enter up to three digits.
When selected, the device will play a ringback tone
(corresponds to Ringback Tone on the Audiofiles page)
out of the speaker while placing an outbound call. The
Ringback Tone will play until the call is answered.
Installing the SIP Call Button
SIP Call Button Setup
Table 2-7.
