Operating menu
Assign measurement variable
Navigation
Description
Selection
Factory setting
Additional information
Process variable value
Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
Switch output simulation
Navigation
Description
* Visibility depends on order options or device settings
202

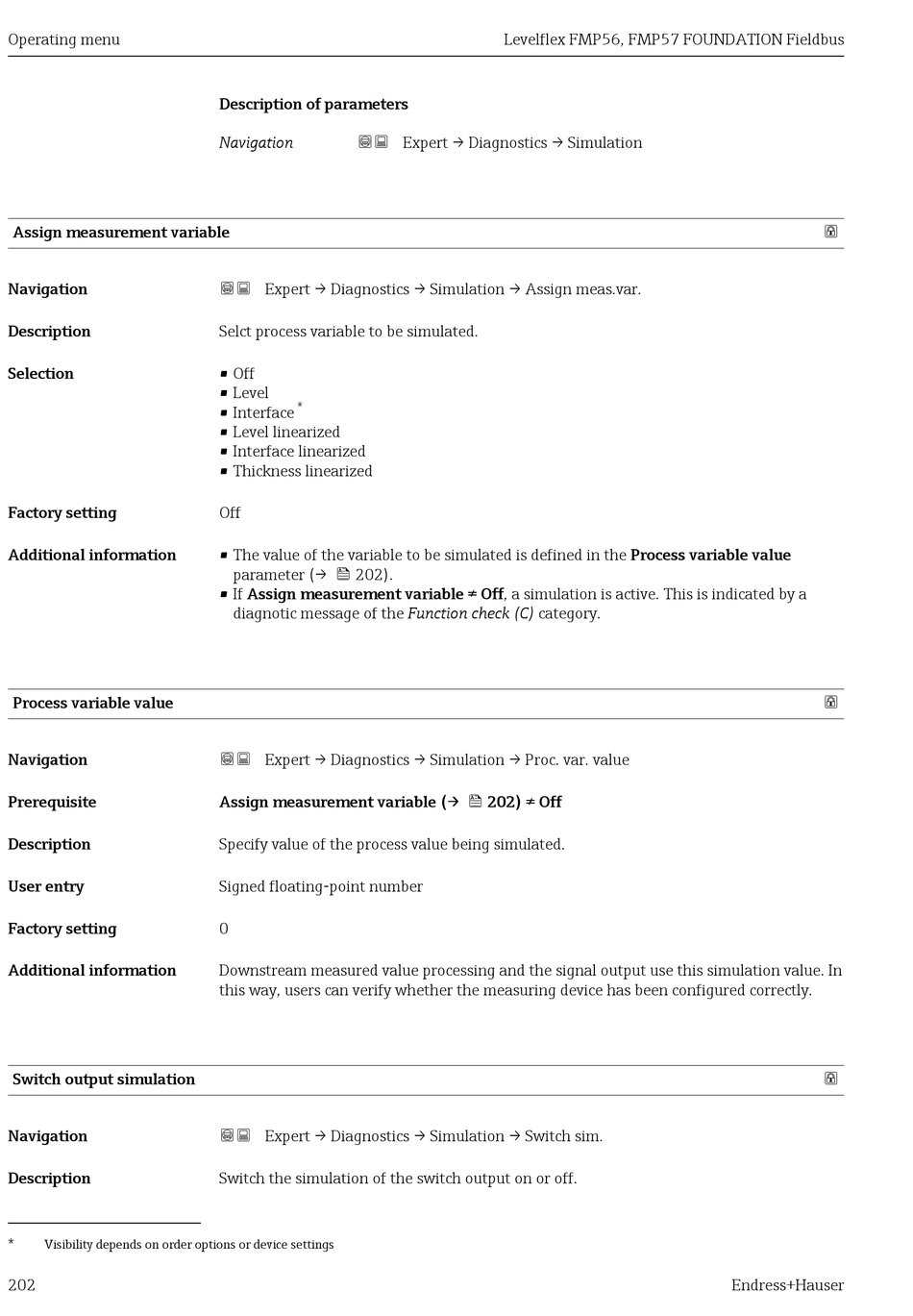

Description of parameters
Navigation  Expert → Diagnostics → Simulation
 Expert → Diagnostics → Simulation → Assign meas.var.
Selct process variable to be simulated.
• Off
• Level
*
• Interface
• Level linearized
• Interface linearized
• Thickness linearized
Off
• The value of the variable to be simulated is defined in the Process variable value
parameter (→  202).
• If Assign measurement variable ≠ Off, a simulation is active. This is indicated by a
diagnotic message of the Function check (C) category.
 Expert → Diagnostics → Simulation → Proc. var. value
Assign measurement variable (→  202) ≠ Off
Specify value of the process value being simulated.
Signed floating-point number
0
Downstream measured value processing and the signal output use this simulation value. In
this way, users can verify whether the measuring device has been configured correctly.
 Expert → Diagnostics → Simulation → Switch sim.
Switch the simulation of the switch output on or off.
Levelflex FMP56, FMP57 FOUNDATION Fieldbus



