Levelflex FMP56, FMP57 FOUNDATION Fieldbus
Endress+Hauser
7.1.3
Device plug connectors
For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be
connected without opening the housing.

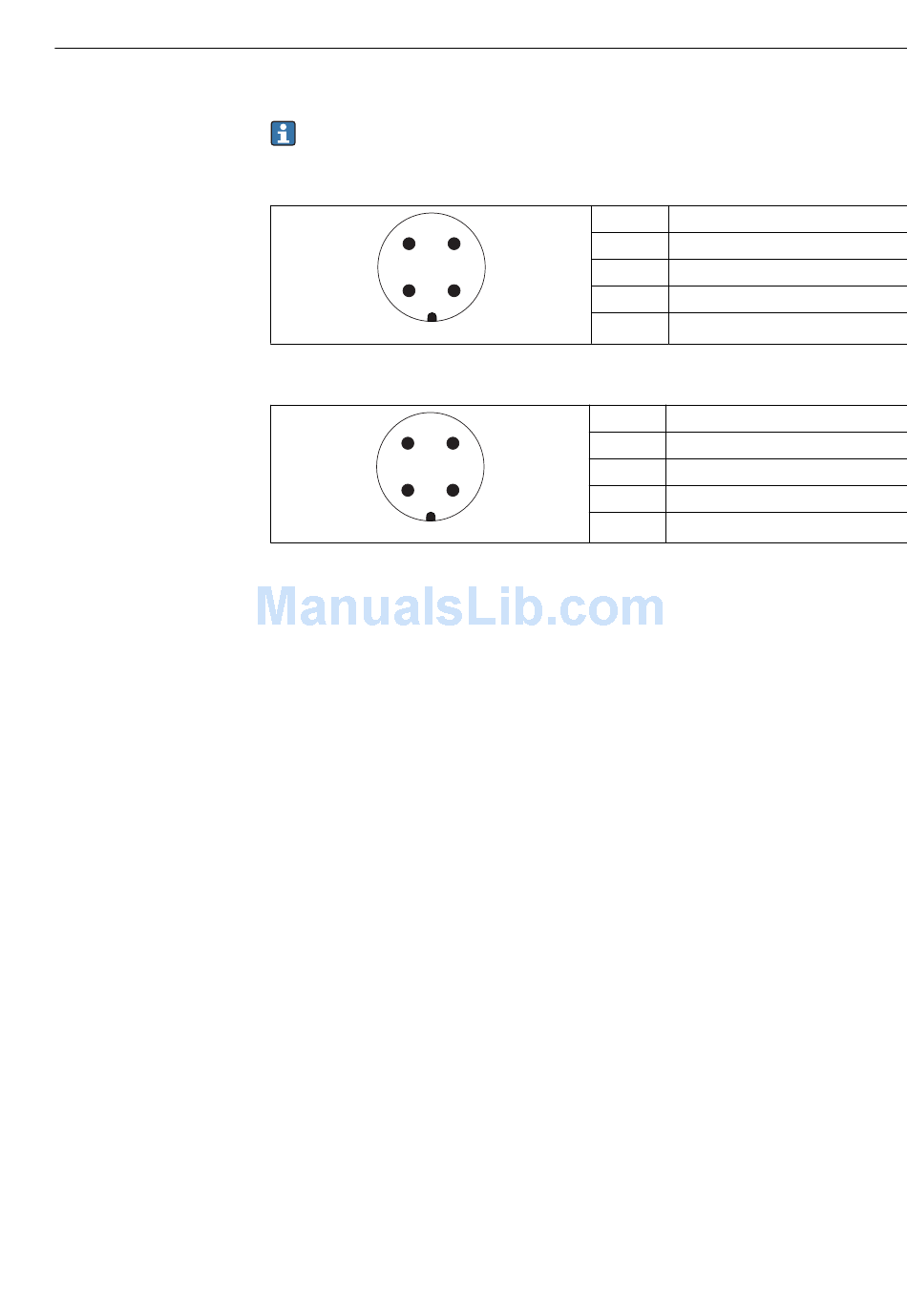

Pin assignment of the M12 plug connector
4
3
1
2
Pin assignment of the 7/8" plug connector
1
3
2
4
Pin
Meaning
1
Signal +
2
not connected
3
Signal -
4
Ground
A0011175
Pin
Meaning
1
Signal -
2
Signal +
3
Not connected
4
Screen
A0011176
Electrical connection
47
