ASSEMBLY & INSTALLATION
TWO-PERSON ASSEMBLY REQUIRED
6

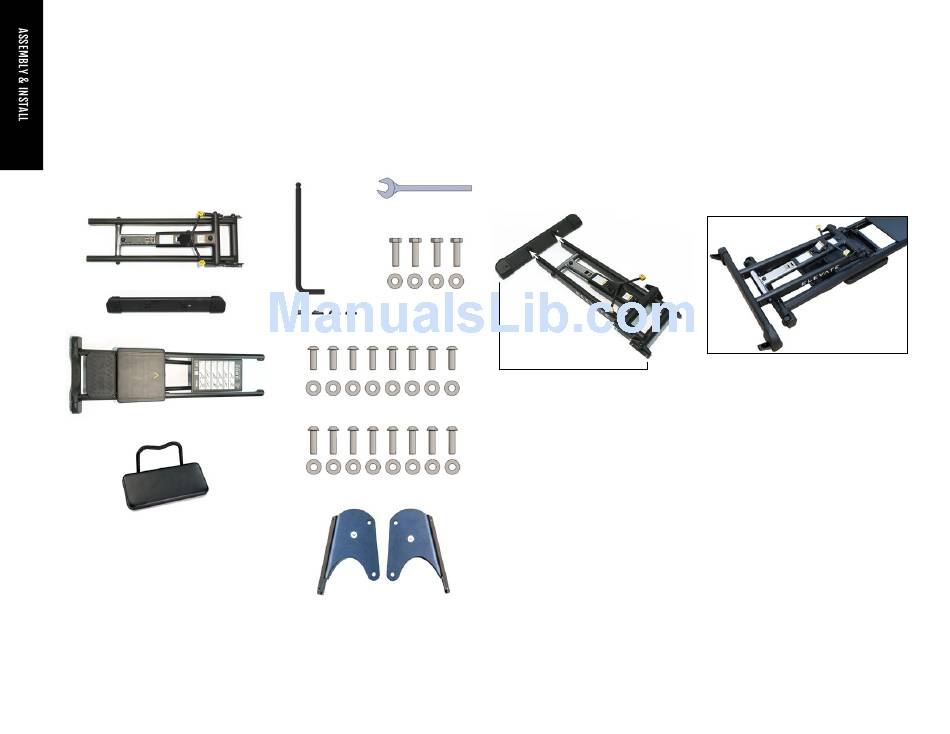

STEP 1. Carefully unpack all the parts and
the Information & Hardware box at the
installation site if possible.
A
Rear Struts & Incline Strut
B
Rear Base
C
Rail Assembly
SCRUNCH Pad
STEP 2. Open the Information & Hardware
box. Inside there will be:
13 mm
Open End Wrench
5 mm
Hex Wrench
M8 Hex Head Screws
& Washers (4)
Black Screw Caps (4)
Short M8 Button Head Screws & Washers (8)
Long M8 Button Head Screws & Washers (8)
SCRUNCH Brackets (Left and Right)
STEP 3. Attach B to A as shown. Using
the 5 mm Hex Wrench install all eight
Short M8 screws with washers. Do not
tighten completely until all eight screws
have been installed.
B
A
D
A B D
+ creates
STEP 4. Now that you have assembled
A and B to create D as shown in STEP
3, you will need to take D and lay it over
the top of C. Be sure to place a cloth or
packing material between the surfaces.
Using the 5 mm Hex Wrench, attach
the hinges on to C with four Long M8
screws and washers. Do not tighten
any completely until all four screws are
installed.
