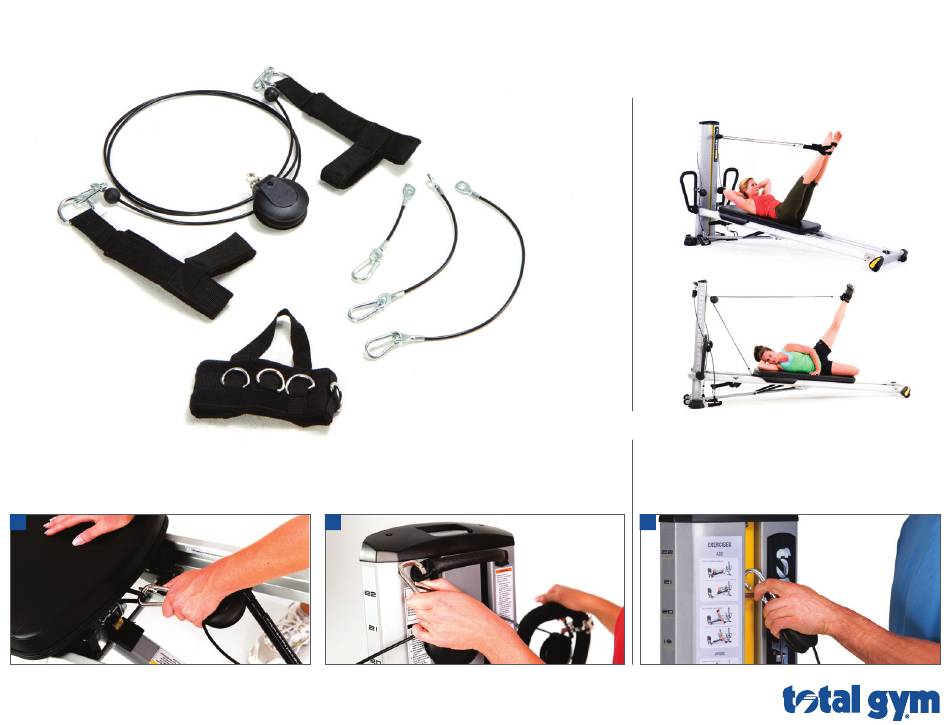

ACCESSORIES |
INCLINE BODYWEIGHT TRAINING
Leg Pulley System
Foot
Harness
Ankle
Harness
DETACH ARM PULLEY CABLE
TO BEGIN INSTALLATION:
Lower the folding foot holder.
STEP 1.
Unhook the arm pulley cable's snap link from the
glideboard ring.
1
TotalGym.com | 858 586 6080
© 2012 Total Gym Global Corp
/ 5101-01
Leg Pulley
System Clip
STEP 2.
Store the arm pulley cable by attaching the center pulley
snap link to the pulley storage ring located on the back of the tower.
2

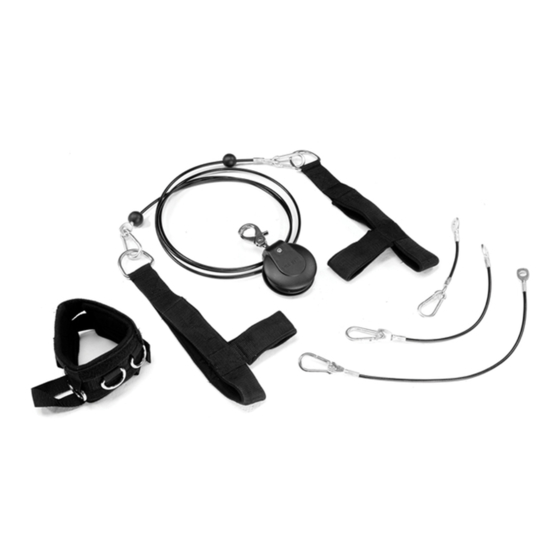

PARTS:
Foot Harnesses (2), Ankle Harness (1), Cable Extension Kit with 6", 12" and 18" extensions, Snap Links (6)
Foot
Harness
6"
12"
18"
Cable Extension Kit
ACCESSORY IN USE
ASSEMBLE AND ATTACH LEG PULLEY SYSTEM
STEP 1.
Attach the pulley snap link to a tower crosspin in the
NOTE:
center channel of the tower.
Reverse side shows set up
variations for unilateral or bilateral usage.
1
Foot Harnesses for
bilateral exercise
(both legs at once).
Ankle Harness for
unilateral exercise
(one leg at a time).
