Total Gym LEVATE Core ADJ Owner's Manual page 7

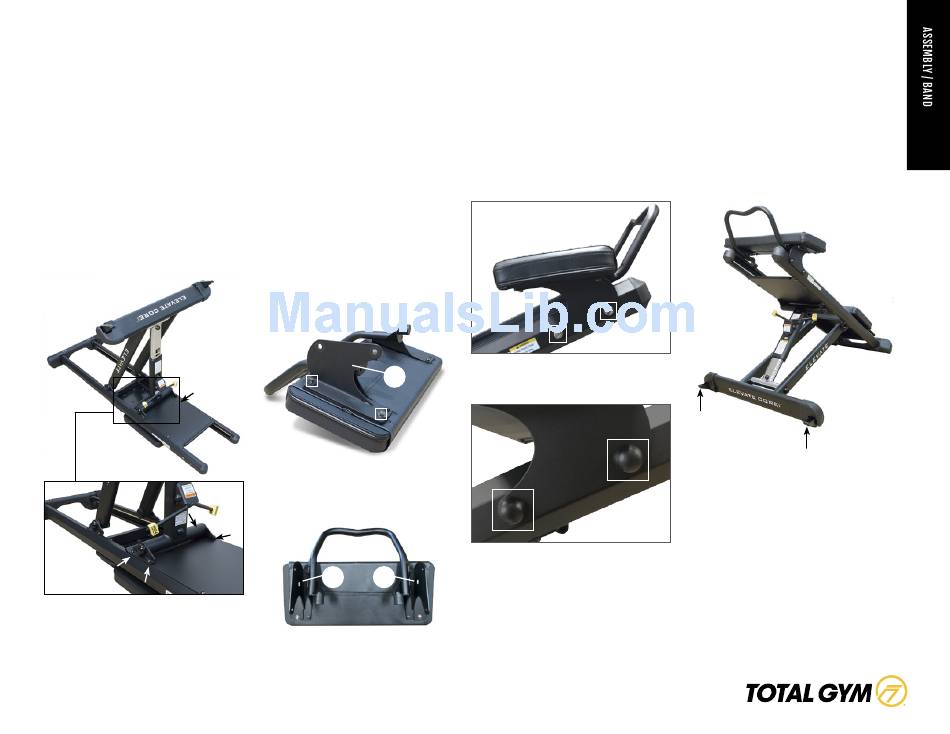

STEP 5. While one person holds the
Incline Strut up as shown, the other
person aligns the hinges on it to the set of
holes in the rails near the Placard Plate.
Using the 5 mm Hex Wrench attach the
hinges on to the C with four Long M8
Button Head Screws and Washers. Do
not tighten any completely until all four
screws are installed.
Placard
Plate
Carefully turn the ELEVATE Core ADJ unit
over.
STEP 6. Locate the SCRUNCH Pad and lay
it upside down. NOTE: It is best to place
the SCRUNCH Pad on a soft surface (i.e.,
carpet) to avoid scratching the SCRUNCH
Pad bar.
Inside your Hardware and Information
Box, locate the two SCRUNCH Pad
brackets marked R (right) and L (left).
Install the right bracket on the SCRUNCH
Pad with 2 M6 Screws and Washers;
repeat the process for the left bracket.
R
NOTE: the L and R will seem reversed
as the SCRUNCH pad is upside down for
bracket installation.
R L
STEP 8. Attach the SCRUNCH Pad to the
left and right rails using the 4 M8 Hex
Screws. Do not tighten the Hex Screws
until all Hex Screws are installed.
After tightening Hex Screws, install the 4
Black Screw Caps
ELEVATE CORE ADJ OWNER'S GUIDE
®
TM
STEP 10. Position your ELEVATE Core
ADJ in a permanent location then bolt to
floor through the Anchor Feet. Bolts not
included.
Anchor
Foot
Anchor
Foot
7
