SEAT OR FOOT PLATFORM:
ROLLER REMOVAL & ASSEMBLY
8

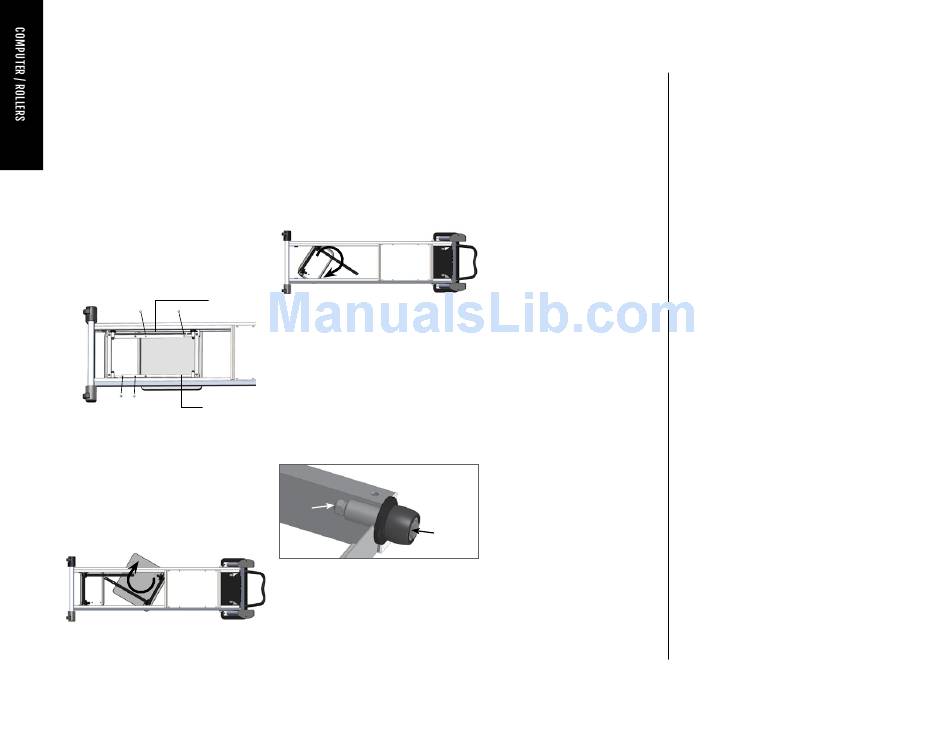

STEP 1. Lie on your back and slide under
the rails to disconnect the Upper L-Frame
and glideboard from the Lower L-Frame
and rubber foot plate. You will need a 10
mm open end wrench to unscrew the four
screws from the Upper L-frame and Lower
L-frame.
Lower L Frame
Screw #3
Screw #4
Screw #2
Screw #1
Roll the glideboard up,then lower the
glideboard and unscrew Screws #3 and
#4 from the glideboard.
STEP 2. Rotate the glideboard and Upper
L-frame until a roller comes out of the rail;
then tilt and lift it out of the rail assembly.
STEP 3. Rotate the rubber foot plate and
Lower L-frame until a roller comes out of
the rail; then tilt it and lift it off of the rail
assembly.
STEP 4. To remove the wheels: Use a
13 mm socket wrench and a 13 mm open-
end wrench.
Insert socket wrench over the bolt on the
outside of the roller as you engage the
open-end wrench on the nut on the inside
Upper L Frame
of the frame; turn to unscrew.
NOTE: Socket wrench and open-end
wrench not included.
Nut
STEP 5. Replace the rollers as
needed and reinstall the bolt and
nut. Tighten just enough so that
the wheel can roll but does not
slide lengthwise on the axle. DO
NOT OVER TIGHTEN.
STEP 6. To reinstall the
glideboard and rubber foot plate,
first slightly angle the rubber
footplate and lower until it is
sitting on the rails. Rotate the
rubber foot plate until the rollers
slide into rail grooves. Repeat this
process with the glideboard.
STEP 7. Using a 10 mm open end
wrench, lie on your back and slide
under the rails to re-install all four
screws.
Bolt
PAD
REPLACEMENT
The pad on the glideboard and the SCRUNCH
assembly can be replaced by the method
below.
TO CHANGE THE GLIDEBOARD PAD:
STEP 1: First, follow the procedure to
remove the glideboard.
STEP 2: Unscrew and remove the (second)
lower L-frame from the glideboard pad.
STEP 3: Replace the old pad with the new
pad.
STEP 6: Screw on the lower L-frame
and follow instructions to reinstall the
glideboard.
TO CHANGE THE SCRUNCH PAD:
STEP 1: Using the 10 mm open-end
wrench, remove the four bolts that hold the
SCRUNCH Pad to the strut frame.
STEP 2: Remove the four bolts (using 10 mm
open-end wrench) that hold the handle bar
to the SCRUNCH Pad.
STEP 3: Replace the old pad with the new
pad.
STEP 4: Re-attach the handle bar to the
SCRUNCH Pad with the same four bolts.
STEP 5: Follow instructions for attaching
SCRUNCH assembly to the strut frame.
®
