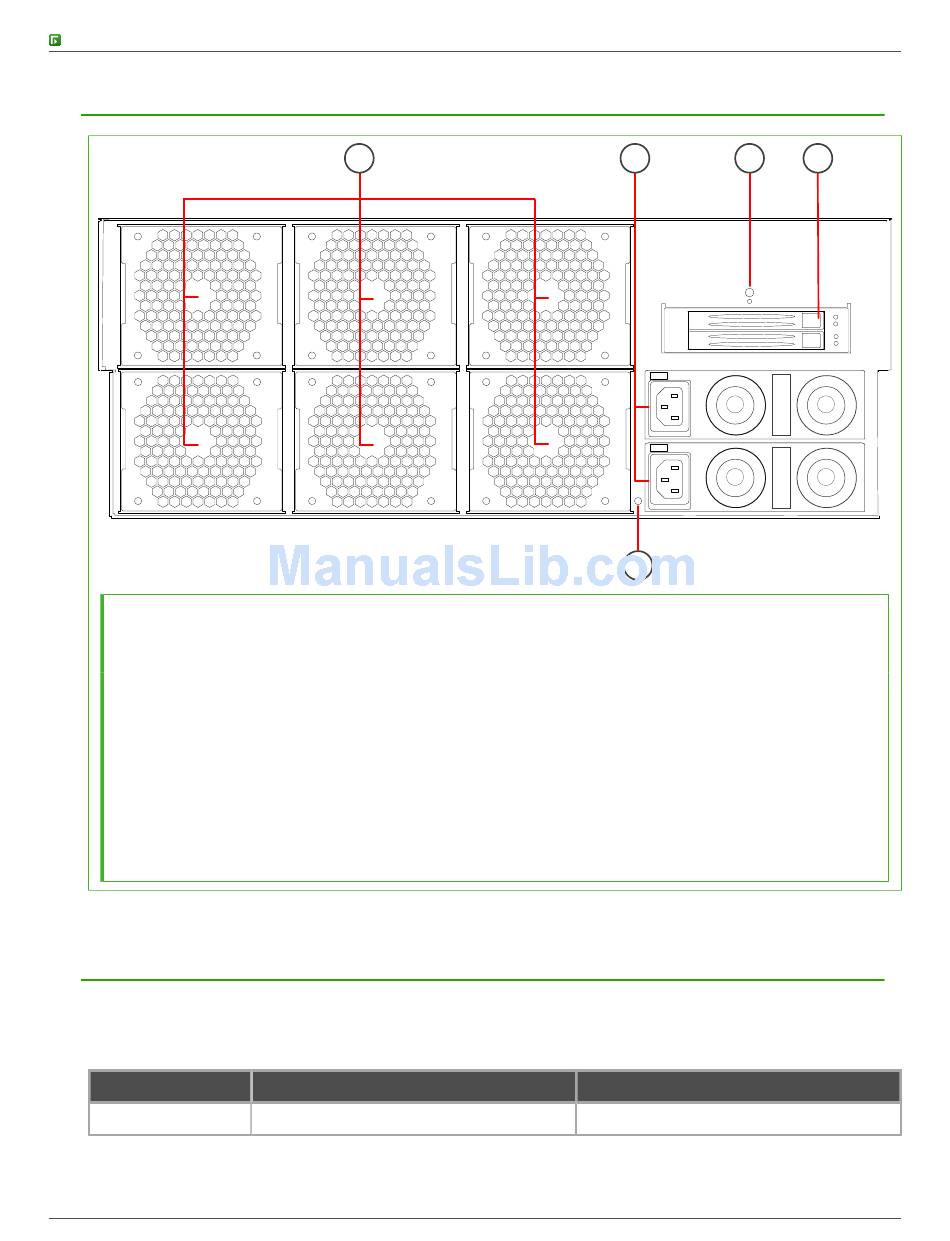

6205 back panel
1 Fans
The upper fans are numbered 1, 3, and 5 from left to right.
The lower fans are numbered 2, 4, and 6 from left to right.
2 Power supplies 1—2
The upper power supply is 2.
The lower power supply is 1.
3 Unit identification (UID) button
Used to locate the appliance in a rack. When you press the UID button, the UID light on the front and
back panel turns on until you press the button again.
4 SSD slots
5 Grounding nut
Ethernet port names
Ethernet port names are based on the slot and port numbers.
The first number in the name represents the slot on the appliance. The second number represents the port on the
slot. For example, eth2_0 is located on port 0 of slot 2.
Component
Fixed Ethernet ports 0
1
Slot number
2 3
5
Port numbers
eth0_0, eth0_1, and eth0_2.
