- Page 1 Next Generation Firewall 120 Series Model 120W (APP-120C1) Internet Security Device Hardware Guide Revision A...
-
Page 2: Table Of Contents
There, you can access product documentation, release notes, Knowledge Base articles, downloads, cases, and contact information. You might need to log on to access the Forcepoint support website. If you do not yet have credentials, create a customer account. See https://support.forcepoint.com/CreateAccount. -
Page 3: Model 120W Features

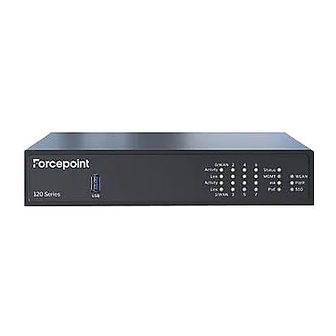

Next Generation Firewall Hardware Guide | Model 120W Model 120W features The figures and tables show the components and features of the 120W (APP-120C1) appliance. Front panel This panel has the following parts. USB port Indicators for Ethernet interface port activity and link status Indicators for status, management (MGMT), high availability (HA), and power over Ethernet (PoE) Indicators for wireless LAN (WLAN) connectivity, power (PWR), and disk activity (SSD) - Page 4 Next Generation Firewall Hardware Guide | Model 120W Back panel This panel has the following parts. Antenna connectors Grounding point Power connector DC IN 1 — Provides 12V DC power for the appliance. Power connector DC IN 2 — Optionally provides 54V DC power for the power over Ethernet (PoE) ports. Note PoE is an optional feature.
-
Page 5: Indicator Lights
Next Generation Firewall Hardware Guide | Model 120W Indicator lights Indicator lights show the status of the appliance and any fixed Ethernet ports. Ethernet port indicators Status indicators Indicator Color Description Activity/ Unlit No link. link status Green Link OK. Flashes on activity. light for each Ethernet... -
Page 6: Ethernet Port Indicators
The precautions provide safety guidance when working with Forcepoint appliances and electrical equipment. CAUTION Forcepoint appliances cannot be serviced by end users. Never open the appliance covers for any reason. Doing so can lead to serious injury and void the hardware warranty. - Page 7 Next Generation Firewall Hardware Guide | Model 120W For additional safety information, see the Forcepoint Product Safety and Regulatory Compliance Guide. General safety precautions Read the safety information and follow these rules to ensure general safety whenever you are working with electronic equipment.
-
Page 8: Install The Appliance
■ The on-site installer is responsible for installing the appliance. For more information, see the Forcepoint Next Generation Firewall Installation Guide. To prepare for the appliance installation, the SMC administrator must do the following: If the SMC has not yet been installed, install the SMC. - Page 9 Next Generation Firewall Hardware Guide | Model 120W If the plug-and-play configuration method is not used, the on-site installer must use the USB drive that contains the initial configuration files to configure the NGFW Engine software. When you have finished installing the appliance, inform the SMC administrator so that the administrator can check the status of the appliance in the Management Client.
- Page 10 Next Generation Firewall Hardware Guide | Model 120W Make sure that the heads of the screws fit into the mounting holes on the bottom of the appliance before you drill the mounting holes in the wall. Steps Drill two holes 120mm (4.7 inches) apart in the wall in a horizontal orientation. Make sure that you leave enough clearance around the appliance.
- Page 11 Next Generation Firewall Hardware Guide | Model 120W Connect the power adapters Use the power cable to plug in the appliance. Note We recommend using a UPS to ensure continuous operation and minimize the risk of damage to the appliance in case of sudden loss of power. Steps Attach a suitable power plug for your region to the 12V power adapter for the appliance.
-
Page 12: Turn Off The Appliance
Wait until the power indicator light turns red or is unlit, then unplug all power cables from the appliance. Compliance information Forcepoint NGFW appliances that have wireless support are in compliance with certain EU directives and FCC standards for wireless devices intended for home and office use. - Page 13 Next Generation Firewall Hardware Guide | Model 120W The frequencies and maximum transmitted power in the EU are: FCC Standards This appliance is in compliance with FCC Part Applied technologies The appliance uses these technologies. ■ Safety — Dual band products ■...
- Page 14 Next Generation Firewall Hardware Guide | Model 120W 2 This Class B digital apparatus complies with Canadian ICES-003. 2 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 3 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.
- Page 15 Next Generation Firewall Hardware Guide | Model 120W Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 16 © 2020 Forcepoint Forcepoint and the FORCEPOINT logo are trademarks of Forcepoint. All other trademarks used in this document are the property of their respective owners. Published 08 July 2020...
