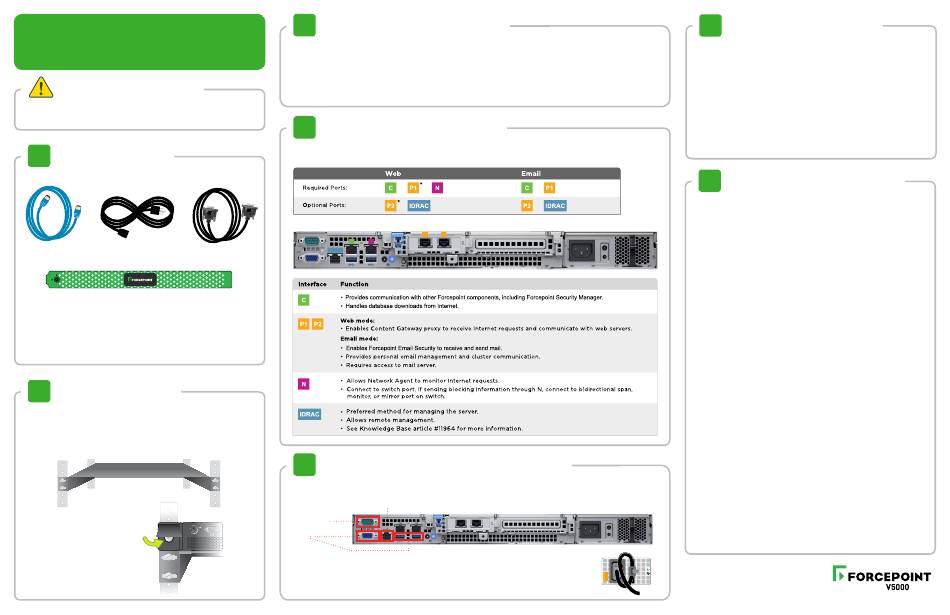

Quick Start Guide
Forcepoint V5000 G4R2
Web or Email Security Appliance
Before you begin...
Plan your deployment before setting up the appliance. See the
back of this guide for a deployment overview and reference sheet.
1
Verify Contents
Ethernet Cables (4)
Power Cable
Bezel (faceplate)
Rack tray/rail kit not included. Optional Static Rail Kit available.
Contact your Forcepoint account representative.
Contact Forcepoint Technical Support if any items are missing.
Rack Installation
2
To mount the V5000 appliance, use a rack tray or rail kit (not
included). If using a rack tray:
1. Install rack tray into desired server rack.
2. Place appliance on tray
and secure to server rack
using mounting screws on
front of appliance.
©2019 Forcepoint. All rights reserved.
3
Determine Security Mode
The appliance supports the following security modes:
• Web (Forcepoint Web Security or Forcepoint URL Filtering)
• Email (Forcepoint Email Security)
Based on your subscription and deployment plan, determine the appropriate security mode for this
appliance.
4
Connect Network Cables
Connect the appliance interfaces required by the security mode for this appliance. Cat 5E cables (or
better) are required. Do not use crossover network cables.
*Not used for Forcepoint URL Filtering.
C
N
Serial Cable
iDRAC
5
Connect Input Device & Power On
Connect to the appliance via serial port or KVM in order to access the command line interface for initial
configuration. Serial port settings are: 9600 baud, 8 bits, no parity.
iDRAC
Serial Port
KVM
Notes:
• Get the default iDRAC password from the Dell information tag.
• Best practice: Secure power cables using velcro straps and plug power cables into an
appropriate power source.
P1
P2
Power On Appliance
6
Power on the appliance and check the following indicators:
Front
• Power button is illuminated.
Rear
• LEDs for connected interfaces (NICs) are green.
• System status indicator (LED left of power supplies) is solid
blue.
Contact Forcepoint Technical Support if any indicators are not
illuminated correctly.
7
Configuration Overview
Please refer to the Forcepoint Appliances Getting Started guide
for more details.
Initial Configuration
Firstboot Script
• Configure security mode.
• Configure the appliance management communication
interface (C).
• Configure NTP servers/system time.
Appliance Command Line
• Configure applicable network interfaces.
• Configure other settings as desired.
Web Mode
Forcepoint Security Manager
• Enter subscription key, update Master Database, configure
Network Agent, and configure policies in Forcepoint
Security Manager.
• Requires Windows Server (see latest Security Manager
release notes for supported versions).
Content Gateway Manager (proxy)
• If your site uses the Forcepoint proxy, configure user
authentication and select protocols.
Email Mode
Forcepoint Security Manager
• Complete configuration wizard, enter subscription key, and
configure policies in the Email Security module. Configure
email DLP policies in the Data Security module.
• Requires Windows Server (see latest Security Manager
release notes for supported versions).
G4R2
QSG240-100_RevA
