  • Page 1 Stonesoft Next Generation Firewall Hardware Guide Model 320X Revision C...

  • Page 2: Table Of Contents

    Table of contents 1 Appliance features............................... 3 Front panel..............................3 Back panel..............................3 Indicator lights..............................4 2 Precautions................................5 Safety precautions............................5 Electrical safety precautions.......................... 5 Power supply safety precautions........................6 3 Install the appliance............................7 Mount the appliance............................7 Connect antennas and cables........................8 4 Compliance information............................

  • Page 3: Appliance Features

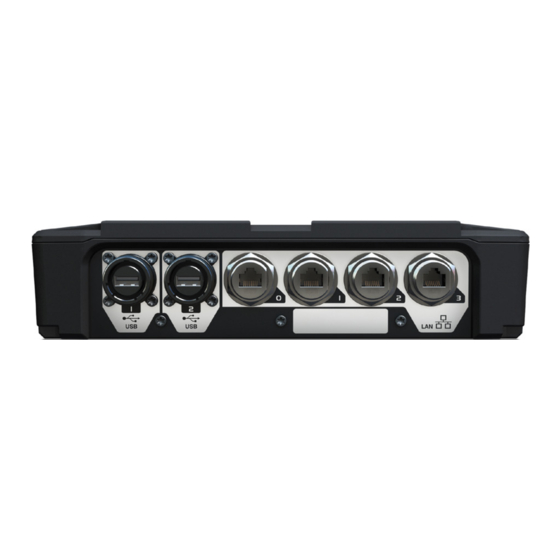

    Appliance features Familiarize yourself with the front panel, back panel, and indicator lights. Front panel The front panel contains the Ethernet ports and the USB ports. Figure 1: 320X appliance front panel USB ports Ethernet ports 0–3 Back panel The back panel contains connection ports and indicator lights. Figure 2: 320X appliance back panel Console port (speed 9600 bps) Power switch...

  • Page 4: Indicator Lights

    Power connector Indicator lights WLAN ports VGA port (C1 model only) Indicator lights The indicator lights show the appliance connection and activity status. Figure 3: 320X appliance back panel indicator lights Number Indicator Status Definition Ethernet ports 0–3 Unlit No link. Green Link OK.

  • Page 5: Precautions

    Precautions The precautions provide safety guidance when working with Forcepoint appliances and electrical equipment. Safety precautions Read the safety information and follow the procedures whenever you are working with electronic equipment. CAUTION: Forcepoint appliances cannot be serviced by end users. Never open the appliance covers for any reason.

  • Page 6: Power Supply Safety Precautions

    Power supply safety precautions Depending on the type of power supply that your Stonesoft NGFW appliance uses, different safety precautions and installation guidelines apply. Power supply This appliance uses a DC power supply. Follow these guidelines for safe installation and use. •...

  • Page 7: Install The Appliance

    Install the appliance Prepare and install the appliance in your network. • You have installed a Stonesoft Management Center (SMC) on a separate server. • You have configured the Firewall element in the Management Client, and saved the initial configuration on a USB drive.

  • Page 8: Connect Antennas And Cables

    Connect antennas and cables Connect the antennas, power supply cable, and network cables. Network settings and cables Follow these network settings and cable guidelines. Copper cable types Use at least CAT5e-rated cables for gigabit networks. 320X appliances use these cable types: •...
  • Page 9 Connect the antennas The 320X appliance ships with two WLAN antennas and 1–2 optional magnetic car antennas and extension cables. Figure 5: 320X appliance car antennas WLAN antenna Car antenna WLAN plug For optimal performance, we recommend that you use two antennas. Note: The supported frequencies of the WLAN antennas are 2.4 GHz and 5 GHz.
  • Page 10 Connect the power supply Use the power cable to plug in the appliance. Note: We recommend using a UPS to ensure continuous operation and minimize the risk of damage to the appliance in case of sudden loss of power. Connect the power cable to the power connector on the back panel of the appliance. Plug the power cable into a grounded, high-quality power strip that offers protection from electrical noise and power surges.

  • Page 11: Compliance Information

    Compliance information Stonesoft NGFW appliances that have wireless support are in compliance with the EMC directive (2014/30/EU) and the FCC standard (FCC Part 15) for wireless devices intended for home and office use. This information is valid for all dual band products (2.4 GHz, IEEE 802.11b/g/n, and 5 GHz, IEEE 802.11n). The supported channels and frequencies for Stonesoft NGFW appliances are listed by country in the Management Client.

  • Page 12: Find Product Documentation

    On the Forcepoint support website, you can find information about a released product, including product documentation, technical articles, and more. You can get additional information and support for your product on the Forcepoint support website at https://support.forcepoint.com. There, you can access product documentation, Knowledge Base articles, downloads, cases, and contact information.
