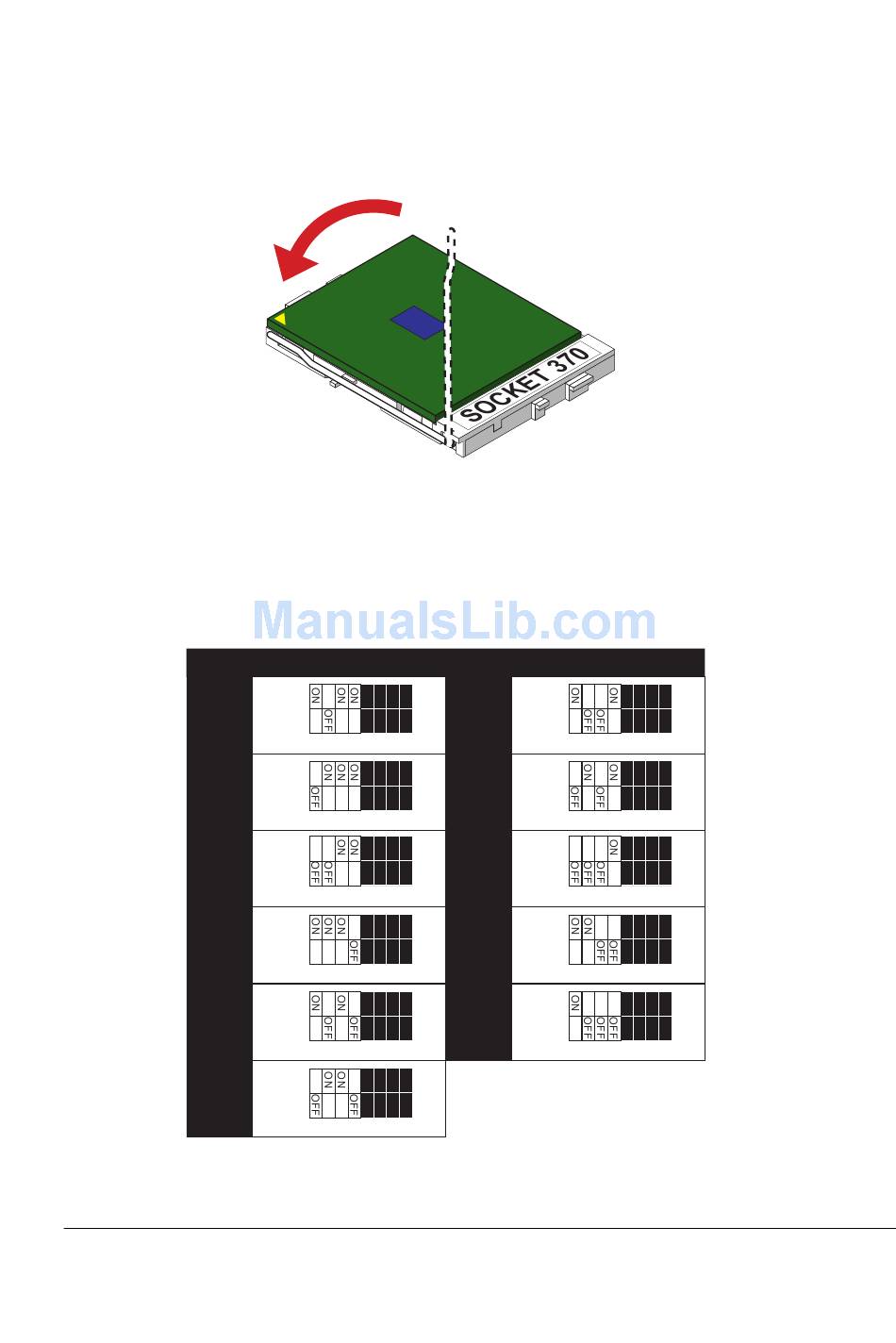

3. Make sure that the CPU positions in the socket tightly, and then put the
lever down to complete the CPU installation.

2-2.1 BUS RATIO SELECT

3.0x
4.0x
5.0x
6.0x
7.0x
8.0x
14
SW1 DIP1 ~ DIP4 SETTING
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
3.5x
1 2 3 4 5 6 7 8
ON
4.5x
1 2 3 4 5 6 7 8
ON
5.5x
1 2 3 4 5 6 7 8
ON
6.5x
1 2 3 4 5 6 7 8
ON
7.5x
1 2 3 4 5 6 7 8
