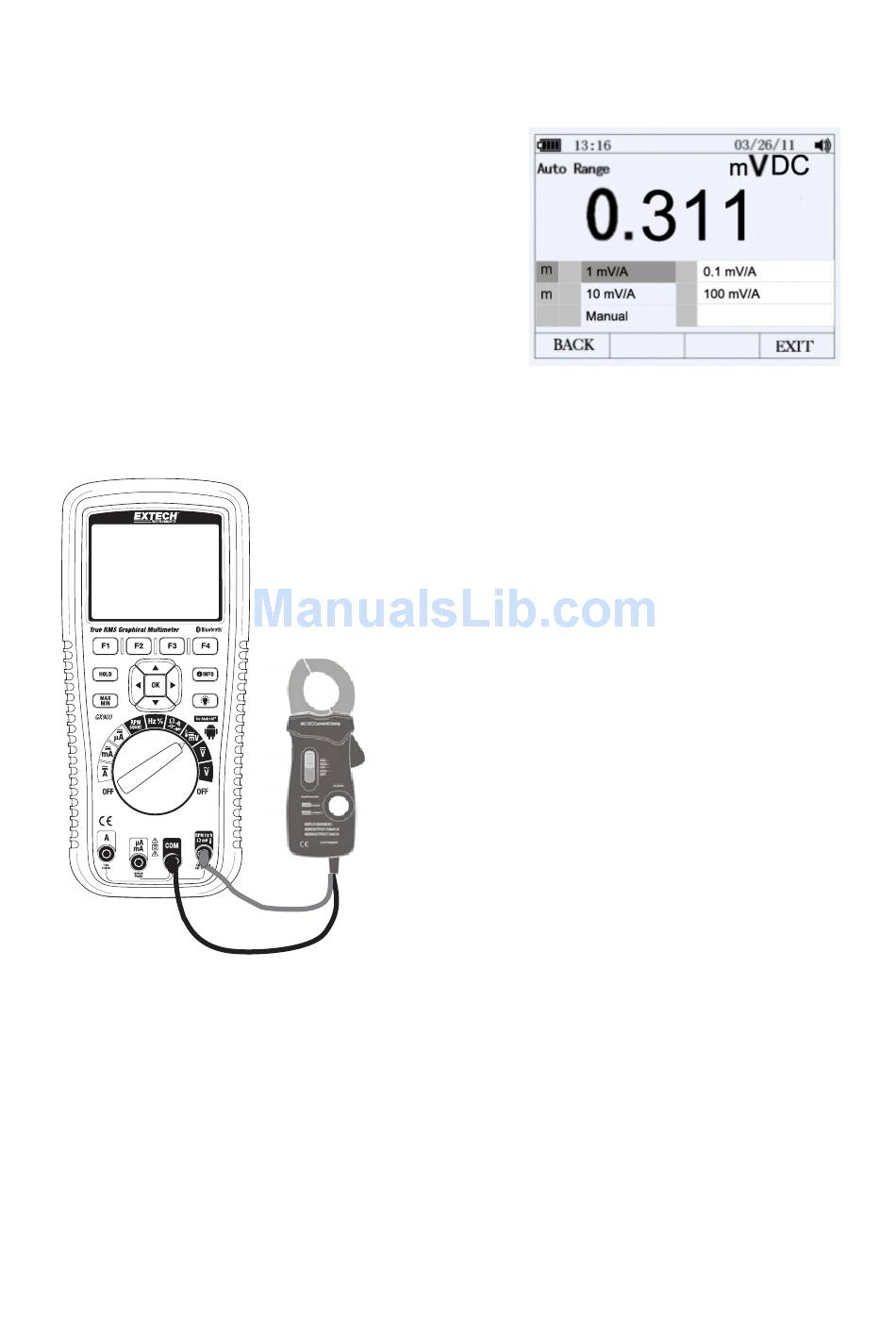

CURRENT CLAMP MEASUREMENTS
1. This meter offers remote current clamp measurement functionality.
2. Set the rotary switch to the mV position.
3. Press the F1 key (MENU), move the menu
selector to the item labeled CLAMP DC/AC,
and then press the OK key.
4. Select the item labeled RANGE
(0.1~100mV/A) and then press the OK key.
5. Connect the remote clamp to the input
terminal jacks ensuring proper polarity.
Insert the clamp's negative lead into the negative COM jack and connect the
clamp's positive lead into the meters positive V jack.
6. Read the measurement in the display.
17
Extech Instruments
GX900-EU-EN V1.6 4/14
