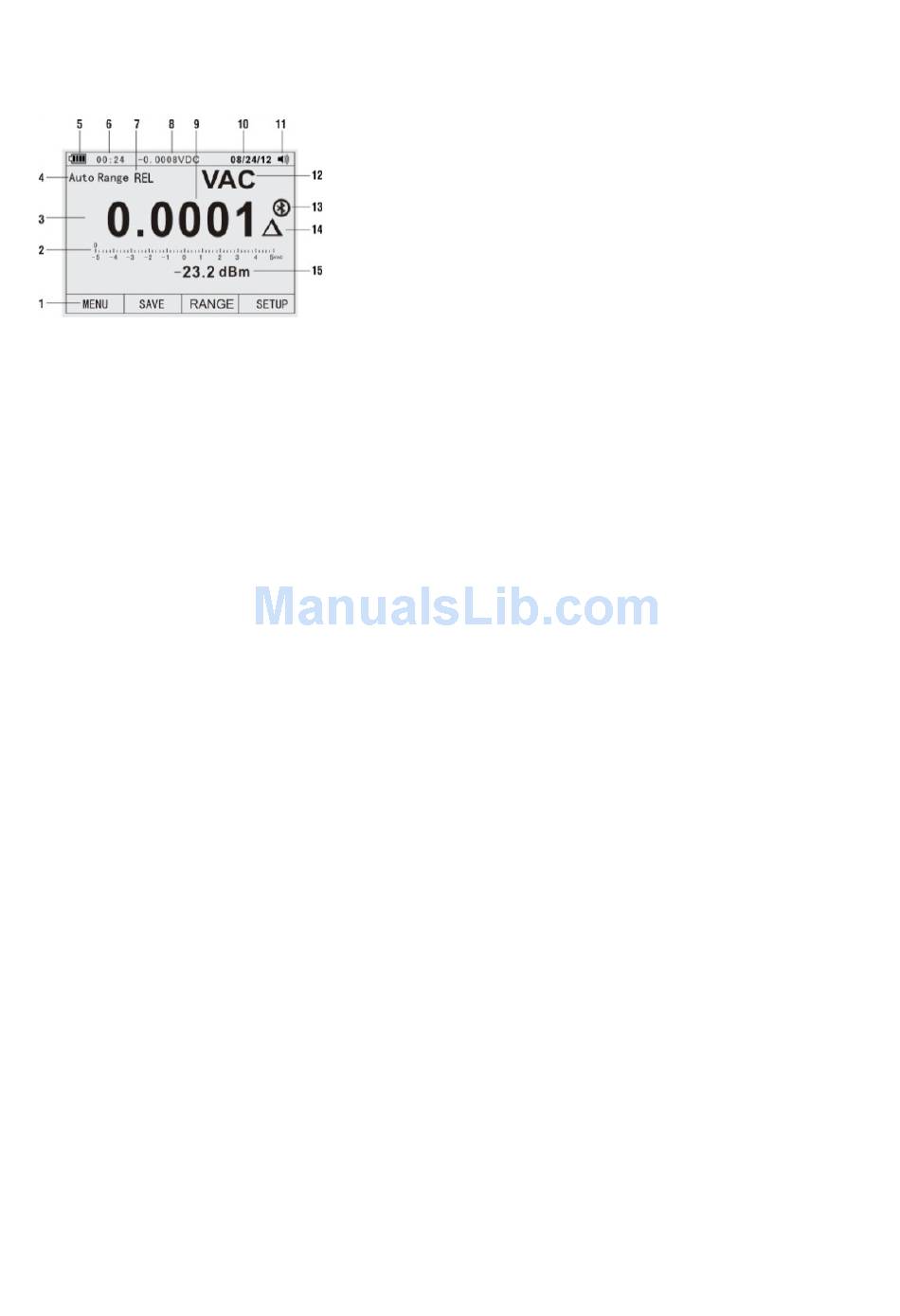

LCD DISPLAY DESCRIPTION
1. Soft key labels indicate the function of the button just below the displayed label.
2. Bar graph Analog display for the input signal (See the "Bar Graph" section for more
information).
3. Primary measurement display area* (minus sign indicates a negative reading).
4. Range indicates the meter's present range and the ranging mode (auto or manual).
5. Battery level indicates the battery charge level.
6. Time indicates the time set for the internal clock.
7. Mode annunciators indicate the Meter's mode.
8. Mini‐measurement display shows the input value when the primary and secondary
displays are busy with a menu screen or pop‐up message. Also shows the lightning
bolt icon (when necessary) in this area.
9. Main display provides measurement information regarding the input signal.
10. Date indicates the date set for the internal clock.
11. Beeper indicates the Meter's audible feedback is enabled (this is not associated with
the continuity beeper).
12. Unit indicates the units of measure. Auxiliary Units indicates measurements that use
factors instead of units (such as Crest Factor).
13. Blue tooth indicates communication link activity.
14. Relative indicates that the displayed value is relative to a stored reference value.
15. Secondary display shows secondary measurement information concerning the input
signal.
*The Primary display area indicates the most important value of the selected function.
The secondary display contains the bar graph and other values that may be measured in
addition to the primary function (for example, frequency measurements along with the
primary AC voltage measurement).
