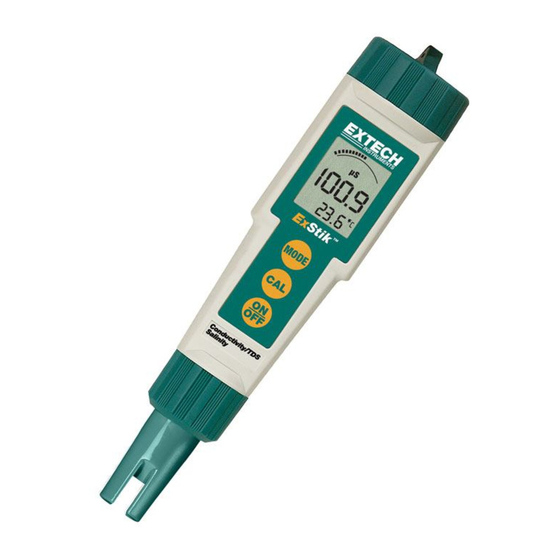

Extech Instruments ExStik II EC400 User Manual

Conductivity/tds/salinity/temperature meter
Hide thumbs Also See for ExStik II EC400:

Advertisement

Table of Contents

User Manual
ExStik
II EC400
®
Conductivity / TDS / Salinity / Temperature Meter
1.800.561.8187
information@itm.com
www.
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExStik II EC400 and is the answer not in the manual?

Questions and answers

Related Manuals for Extech Instruments ExStik II EC400

Summary of Contents for Extech Instruments ExStik II EC400

  • Page 1 User Manual ExStik II EC400 ® Conductivity / TDS / Salinity / Temperature Meter 1.800.561.8187 information@itm.com www. .com...

  • Page 2: Getting Started

    Introduction ® Congratulations on your purchase of the ExStik II EC400 Conductivity/Total Dissolved Solids (TDS) / Salinity / Temperature meter. With the EC400’s dynamic cell-constant technology it is possible to measure a wide range of Conductivity, TDS, and Salinity with the same electrode. Careful use and maintenance will provide years of reliable service.

  • Page 3: Meter Description

    Meter Description Front Panel Description 1. Battery compartment 2. LCD Display 3. MODE/HOLD button (change mode, Hold and store data) 4. CAL/RECALL button (calibrate, change temperature units, recall data) 5. ON/OFF button 6. Electrode Collar 7. Electrode LCD Display 1. Bargraph display 2.

  • Page 4: Measurement Procedure

    Measurement Procedure Sample Preparation: For Conductivity, TDS or Salinity place the test sample in a sample cup with enough depth (2.5cm minimum) to cover the electrode. Stir the solution to remove any air bubbles. Measurement: Press the ON button. ( and then “SELF CAL”...

  • Page 5: Storing Readings

    Changing Measurement Function The meter can be set to measure Conductivity, TDS or Salinity. To change the mode: 1. Press and Hold the MODE/HOLD button for 2 seconds and the display will begin to scroll through the units. µS (Conductivity); ppm (TDS); mg/l (TDS); ppm S (Salinity); Note: The “HOLD”...
  • Page 6 Recalling Stored Readings 1. Press the CAL/RECALL button and then press the MODE/HOLD button. A location number (1 through 25) will briefly appear and then the value stored in that location will appear. The displayed units will flash, indicating that the storage recall mode is active. 2.
  • Page 7 Measurement and Display Considerations If the unit appears to be locked (display frozen). It is possible that the Data Hold mode has been inadvertently accessed by pressing the MODE/HOLD button. (“HOLD” will be displayed in the bottom left of the LCD.) Simply press the MODE button again or turn the meter off and then on.

  • Page 8: Operational Matrix

    Considerations and Techniques Do not touch the inner surfaces of the conductivity electrodes. Touching the surface of the platinized electodes may damage and reduce the life of the probe. Store the electrode dry, in the storage cap. Always rinse the electrode in de-ionized water between measurements to avoid cross contamination of the sample.

  • Page 9: Specifications

    Specifications Display 2000 count LCD with Bargraph Conductivity ranges 0 to 199.9µS/cm 200 to 1999µS/cm 2.00 to 19.99mS/cm TDS ranges 0 to 99.9ppm or mg/L (Variable ratio) 100 to 999ppm or mg/L 1.00 to 9.99ppt or g/L Salinity range 0 to 99.9ppm 100 to 999ppm 1.00 to 9.99ppt TDS Ratio...

  • Page 10: Maintenance

    Maintenance Battery Replacement Twist off the battery compartment cap. Holding the battery housing in place with a finger, pull out the battery carrier using the two small tabs. Replace the four (4) CR2032 batteries observing polarity. Replace the battery compartment cap Never dispose of used batteries or rechargeable batteries in household waste.

  • Page 11: Cleaning Recommendations

    Cleaning Recommendations When cleaning the probe, take care not to scratch or damage the platinized electrode surfaces. Contaminant Cleaning Solution Instructions Water soluble substances Deionized water Soak or scrub gently with a soft brush. Rinse thoroughly with DI water, and dry Grease &...

This manual is also suitable for:

Exstik ec400
