Installation Notes - ZCS 1.1K-3KTL User Manual

Outlines of this chapter
This topic describes how to install the ZCS 1.1K-3KTL inverter.

Installation notes

Do NOT install the ZCS 1.1K-3KTL on a flammable material.
Do NOT install the ZCS 1.1K-3KTL in an area used to store flammable or
explosive materials.
Danger
The enclosure and heat sink are very hot while the inverter is working, therefore
do NOT install the ZCS 1.1-3KTL in places where you might touch them
inadvertently.
Caution
Consider the weight of ZCS 1.1K-3KTL when transporting and moving the
ZCS 1.1-3KTL inverters.
Choose an appropriate mounting position and surface.
Assign at least two persons to install the ZCS 1.1-3KTL inverter.
Attention
Packing materials and components may be damaged during transportation. Therefore, check
the outer packing materials before installing the inverter. Check the outer packing materials
for damage, such as holes and cracks. If any damage is found, do not unpack the ZCS 1.1k-
3KTL and contact the dealer as soon as possible. You are advised to remove the packing
materials within 24 hours before installing the ZCS 1.1k-3KTL inverter.
All rights reserved C Zucchetti Centro Sistemi S.p.A.

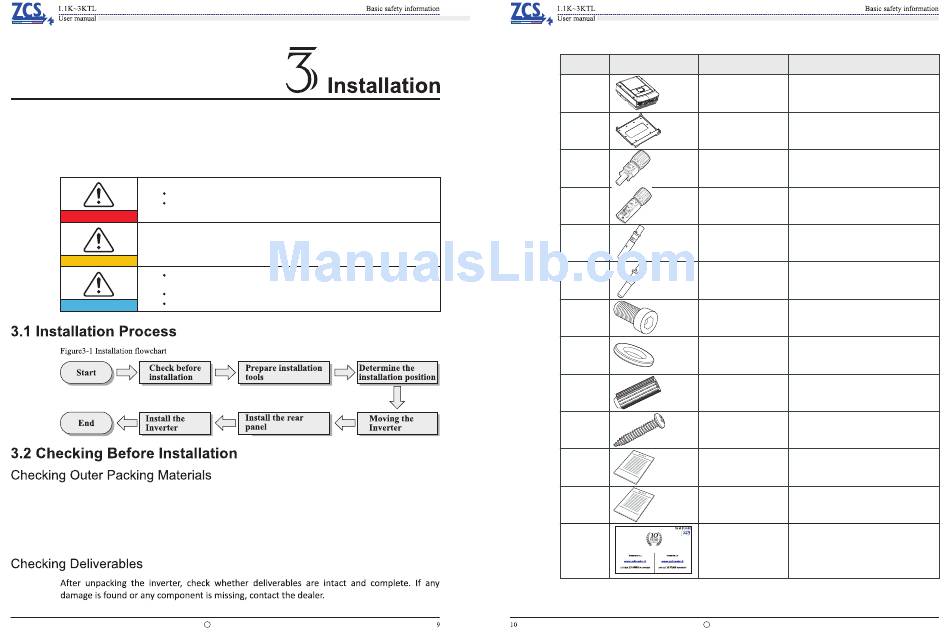

Table3-1 shows the components and mechanical parts that should be delivered
Description
No. Pictures
ZCS 1.1K~3KTL
1
Rear panel
2
PV+ input terminal
3
PV-input terminal
4
Metal terminals secured
5
to PV+ input power
cables
Metal terminals secured
6
to PV- input power
cables
M5 Hexagon screws
7
M6 flat washer
8
Expansion bolts
9
Self-tapping screw
10
Manual
11
The warranty card
12
Registration Form
13
All rights reserved C Zucchetti Centro Sistemi S.p.A.
Quantity
1 pcs
1 pcs
2 pcs
2 pcs
2 pcs
2 pcs
2 pcs
7 pcs
7 pcs(spare 2pcs)
5 pcs
1 pcs
1 pcs
1 pcs
