Summary of Contents for ZCS Azzurro HYD 3000 ES

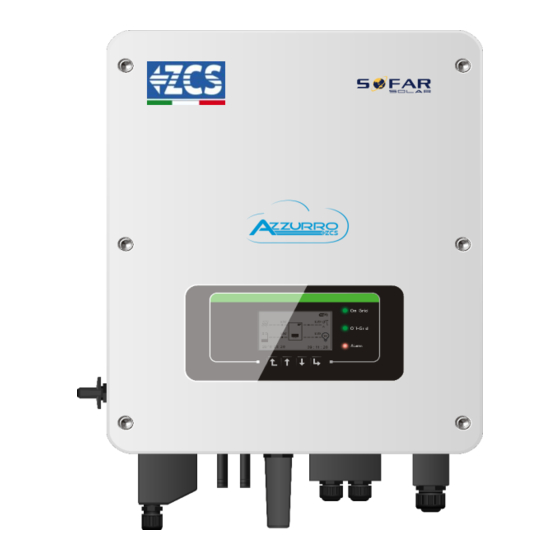

- Page 1 QUICK INSTALLATION GUIDE HYBRID INVERTER...
- Page 2 1. INSTALLATION AND DISTANCES Always wear protective General notice - Always consult the clothing and/or personal Important Safety manual protective equipment Instructions Maximum height from ground permitted: 180 cm 1. INSTALLATION Distances for the installation of multiple inverters Correct installation in Maximum inclination vertical position permitted: 15°...
-
Page 3: Lights And Buttons
3. LIGHTS AND BUTTONS Charge On Grid Off-Grid Alarm Status of the HYD-ES Menu/Back System status inverter Green light Green light Red light PV production On-grid Down 10. Grid power Standby (On-Grid) Intermittent Enter/Forward 11. Home Off-Grid Discharge status consumption Charge status 12. - Page 4 5. QUICK INFO ON SYSTEM STATUS Press the “↓” key once from the main menu to access the instantaneous information on the battery and AC grid. Press the “↑” key once from the main menu to access the instantaneous information on the DC side of the inverter. 6.
-
Page 5: Battery Connection
3.1 Battery connection If the system has to be switched off, make sure to disconnect the AC voltage first by opening the dedicated switch. NEVER turn off the batteries before disconnecting the AC voltage, therefore with the storage system connected to the AC grid. 7. - Page 6 8.2 PYLONTECH BATTERIES IN PARALLEL Note: To connect multiple batteries in parallel, use the appropriate cables (power and connection) contained in the kit. 3.1 Battery connection Master Slave 1 Slave n Note: The DIP switch positions must be set according to the factory settings When connecting multiple batteries in parallel, connect the communication cable previously connected to the inverter's CAN port to the CAN port of one of the batteries.
- Page 7 Note: Turn off the batteries each time the position of the DIP switches changes. In case of multiple batteries connected in parallel or when adding new batteries to a system with batteries already installed and working, make sure that the difference between the voltages of all the batteries is less than 1.5 Volt. Each battery must be measured individually, therefore make sure the batteries are not connected to each other.
- Page 8 Connecting 2 batteries SLAVE MASTER Connecting 3 batteries MASTER SLAVE 1 SLAVE 2 Connecting 4 batteries MASTER SLAVE 1 SLAVE 2 SLAVE 3 Connecting 5 batteries MASTER SLAVE 1 SLAVE 2 SLAVE 3 SLAVE 4...
-
Page 9: Current Sensor Connection
9. CURRENT SENSOR CONNECTION For the extension cable, it is recommended to use a category five 8-pole mains cable, or a 2x0.5 mm² cable. In the first case, four conductors will be connected to one pole of the sensor and the other four will be connected to the other pole. To prevent the conductor wires from breaking, it is recommended to use a cable with flexible and non-rigid conductors. -
Page 10: Connecting To The Grid
HYBRID Protection Protection PV panels switch switch Meter Current sensor Critical Loads Utilities Batteries The sensor must include all phase cables entering or leaving the meter 10. CONNECTING TO THE GRID 1) Unscrew the 4 screws (A) of the central cover with a screwdriver. 2) Remove the cover (B), loosen the cable gland (C), and then remove the stopper (G). - Page 11 Make sure that all the DC string parameters are acceptable to the inverter in accordance with the technical specifications given in the datasheet and in the Azzurro ZCS configurator. In addition, check that the polarities of the photovoltaic cables are correct. Insert the positive and negative connectors of the HYD-ES inverter until you hear a “click.”...
-
Page 12: Initial Set Up Procedure
12.1 INITIAL SET UP PROCEDURE HYD 3-6 GRID Make sure that the AC circuit breaker of the hybrid inverter is open and that no voltage is present on the inverter's terminal block. Check that the DC circuit breaker of the inverter is in the OFF position. -
Page 13: Advanced Settings
12.2 INITIAL SET UP PROCEDURE - FREEZING OF CURRENT SENSOR The procedure for blocking the current sensors is available from version 2.00 of the Service Code onwards; in the event of lower Service Codes, contact technical support. To perform the freezing operation, follow the instructions below: “Password 0001”... -
Page 14: Date And Time
13. INITIAL SETTINGS - BATTERY PARAMETERS 1.PYLON (PYLONTECH) 4.3 Initial settings - Battery 1.Advanced “Password 0001” settings 1.Battery parameters 4.GENERAL LITHIUM (WECO) 1. Battery type Depth of discharge 2. Depth of Discharge 3. Save * EPS depth of discharge * After setting the parameters, Safety Buffer confirm by moving the cursor to “Save and press... -
Page 15: Checking For Correct Operation
16. CHECKING FOR CORRECT OPERATION 1) Turn the PV circuit breaker to the OFF position and disconnect the inverter from the grid Hybrid Inverter GRID Battery 2) Restore AC voltage by flicking the dedicated switch upwards: Hybrid Inverter GRID Battery 3) Check that the power value taken from the grid display is approximately equal to the power consumption shown on the meter, or to the value obtained by using a current meter to measure under the import/export meter. - Page 16 Once the countdown is over, the batteries will start to deliver power to the utility according to availability, and will attempt to reset the consumption from the grid. Check that the value of the consumption remains constant* as the power supplied by the battery increases during discharge.
- Page 17 17. CHECKING THE INVERTER SETTINGS To check whether the parameters set are correct, enter the display menu under “Inverter Info” and check the data, especially those highlighted: Inverter Info (1) Inverter Info (4) Serial DRMs0 Control: Serial number of the machine ZE1ES330J28307 Information on DRMs0 mode Disabled...
- Page 18 19.1 EPS MODE (OFF GRID) In the event of a power failure or operation in OFF-Grid mode, if the EPS function is enabled, the HYD-ES inverter will operate in Emergency Power Supply (EPS) mode using the PV power and energy stored in the battery to supply power to the critical load via the LOAD connection port.
- Page 19 CHANGE-OVER SWITCH In case of maintenance of the components of the photovoltaic system or in case of an inverter that cannot be used, it is recommended to install a change-over switch so that the loads normally connected to the inverter's load line can be fed directly from the grid.
- Page 20 In the event of a blackout, the alternating voltage supplied by the grid will be lost; this condition will cause the internal contacts of the hybrid inverter to switch over which, once the set activation time has expired, will continue to supply an alternating voltage of 230V to the LOAD output, supplying power only to the critical loads according to the availability of the batteries and PV system.
- Page 21 1. Depth of Discharge in ON-Grid mode e.g. Depth of Discharge Max charge value 100% Min discharge value 20% 2. Depth of Discharge in EPS (or OFF-Grid) mode, beyond EPS Depth of Discharge which the inverter stops supplying power to the connected loads.
- Page 22 20.1 OFF GRID MODE ONLY By switching on the HYD-ES inverter when there is no grid, it will be able to supply the energy coming from the PV system and stored in the batteries to the pre-defined critical loads. To do this, it is necessary to activate the EPS (Emergency Power Supply) mode.
- Page 23 21. OPERATION OF PHOTOVOLTAIC SYSTEM ONLY PV panels HYBRID Meter Utilities The system can also work as a photovoltaic inverter only, and therefore without batteries. In this case, the display will only show the values relating to: .Photovoltaic production .Load consumption .Power exchanged with the grid NOTE: In this case, the AC wire must be connected to the GRID port...
-
Page 24: Data Sheet
23. DATASHEET...
