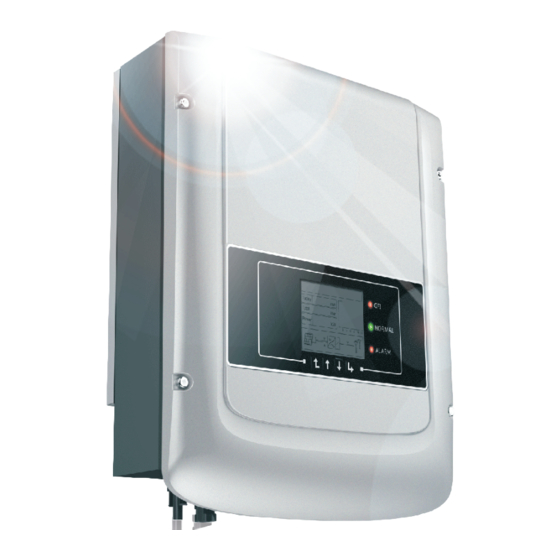

ZCS 1.1K-3KTL User Manual

Pv grid-connected inverter

Hide thumbs

page of 35

/ 35
Bookmarks

Quick Links

Download this manual

Zucchetti Centro Sistemi S.p.A.

ADD:Via Lungarno 305/A - 52028 Terranuova Bracciolini (AR)，Italy

Tel : +39 055 91971

Fax :+39 055 9197515

innovation@zcscomany.com

http://www.zcscompany.com

User manual

PV Grid-Connected Inverter

Product Model: ZCS 1.1K~3KTL Document Version 1.1(2016.07.13)

Zucchetti Centro Sistemi S.p.A.

Table of Contents

Need help?

Do you have a question about the ZCS 1.1K-3KTL and is the answer not in the manual?

Questions and answers

Summary of Contents for ZCS ZCS 1.1K-3KTL

Page 1 User manual PV Grid-Connected Inverter Product Model: ZCS 1.1K~3KTL Document Version 1.1(2016.07.13) Zucchetti Centro Sistemi S.p.A. ADD:Via Lungarno 305/A - 52028 Terranuova Bracciolini (AR)，Italy Tel : +39 055 91971 Fax :+39 055 9197515 innovation@zcscomany.com Zucchetti Centro Sistemi S.p.A. http://www.zcscompany.com...
Page 2 (including software, etc.), and 1100TL 1600TL 2200TL 2700TL 3000TL no reproduction or distribution of it in any form or by any means. All rights reserved. ZCS Keep this manual where it will be accessible at all times.
Page 4 If you find packing problems that may cause the damage of the inverter, or find any visible Zucchetti Centro Sistemi S.p.A. damage, please immediately notice the responsible transportation company. You can ask syour solar system installer or Zucchetti Centro Sistemi S.p.A. for help if necessary. Transport of the equipment, especially by road, must be carried out with suitable means for protecting the components (in particular, the electronic components) from violent shocks, humidity, vibration, etc.
Page 5 Touching the power grid or the terminal of equipment may lead to die of electric shock or fire! Don’t touch the terminal or conductor which connect to the power circuit; Pay attention to anything about grid connection and security document. Inverter should work again after removing any faults.
Page 7 F. Data transmission The inverter or a grid of inverters may be monitored remotely through an advanced communications system based on an RS-485 serial interface, or remotely via the WIFI. G. Software update SD card is used for updating the firmware Electrical block diagram Figure2-4 Electrical block diagram Input...
Page 8: Installation Notes
Check the outer packing materials for damage, such as holes and cracks. If any damage is found, do not unpack the ZCS 1.1k- 3KTL and contact the dealer as soon as possible. You are advised to remove the packing...
Page 10: Moving The Inverter
Moving the inverter max 15º This topic describes how to move the inverter to the installation position horizontally Step 1 Opening the packing, insert hands into the slots on both sides of the inverter and hold the handles, as shown in Figure 3-3 and Figure 3-4. Figure 3-3 Moving the inverter Figure 3-4 Moving the...
Page 13 inverter For Italy, single phase solar inverter can NOT be used in 3-phase power supply system. inverter inverter All rights reserved Zucchetti Centro Sistemi S.p.A. All rights reserved Zucchetti Centro Sistemi S.p.A.
Page 14 ≥4 Multi core copper wire mm² 1.4% 2.5mm² 4.0mm² 6.0mm² 1.2% 8.0mm² 10.0mm² 1.0% 0.8% 0.6% 0.4% 0.2% 0.0% 100m Length All rights reserved Zucchetti Centro Sistemi S.p.A. All rights reserved Zucchetti Centro Sistemi S.p.A.
Page 20 2. Clear Energy Press “Back” button in standard interface to enter main interface: This allows users to set total energy to zero. Press "OK" to clear the energy. Press “Back” 3. Clear Events This allows users to clear events in the event list. Press "OK" to clear the events. 4.
Page 21 This allows users to change the total energy. Press "OK", then "input password" will be 6. Relay Command Press “OK” displayed, press "OK" again to input the password (0001), press "Up" or "Down" to change the number, press "OK" to go to next digit. 1.
Page 22 . Relay Test Test 59.S1 OK! This allows users to test relay on the display. Press “OK” button and start to test relay Press “Down” button to see the test results “Success” is displayed when the Relay Test is correct. 59.S1:230V 183ms .
Page 23 Press “Down” button to see the test results Test 59.S1 OK! 81>S2:49.9Hz 89ms Press “Down” button to see the test results Wait for another test 59.S1:230V 183ms Testing 81<S1... Wait for another test Wait Testing 59.S2... Test 81<S1 OK! Wait Press “Down”...
Page 24 (C) “SystemInfo” Interface as below: 81>S2:49.9Hz 89ms Wait for another test 3.SystemInfo Press “OK” Testing 81<S1... 1.Inverter Type 7. Power Factor Wait Test 81<S1 OK! 2.Serial Number 8.Reflux Power Press “Down” button to see the test results Down 9.P(f) 3.SoftVersion 81<S1:50.0Hz85ms 10.Q(v) 4.HardVersion...
Page 25: Update Software
.when set over, if the password is wrong， Step 4 ZCS will send the Software code to the user who needs to update. After user receive the LCD will display “Error! Try again”, at this time ,you should re-enter your password .If the the file, please decompressing file and cover the original file in SD card.
Page 26 Step 7 Input the password, if password is correct, and then begin the update process, the original password is 0715. Step 8 System update main DSP、slave DSP and ARM in turns. If main DSP update success ,the LCD will display “Update DSP1 Success”, otherwise display “Update DSP1 Fail”; If slave DSP update success ,the LCD will display “Update DSP2 Success”, otherwise display “Update DSP2 Fail”...
Page 27 Check whether too many PV modules are series connected in a PV string, thus the voltage(Voc) of the PV string is higher than the maximum input voltage of inverter. If yes, adjust the number of series connected PV modules to decrease the voltage of the PV string to fit the input voltage range of inverter.
Page 28: Maintenance
“DC switch”, wait for 5 minutes, then turn ON the unrecoverable hardware “DC switch”. Check whether the fault is rectified. If fault no, please contact technical support. ZCS 1.1K~3KTL ID66 UnrecoverBusOVP The bus voltage is too high UnrecoverOCPInstant ID70...
Page 30 http://10.10.100.254/ Waiting for 10.10.100.254 Windows Security The server 10.10.100.254 is asking for your user name and password. The server reports that it is from IGEN-WIFI. Warning: Your user name and password will be sent using basic authentication on a connection that isn’t secure. admin admin Remember my credentials...
Page 31 Staus Dear users: Wizard Wireless Cable Advanced Thank you for choosing our device. Next, you can follow the setup wizard to Account complete the network setting step by steep; Update or you can select the left menu for detailed setting. Restart Note: Before setting, please make sure that Reset...
Page 32 Staus Staus Please fill in the following information: Setting completel Wizard Wizard Wireless Wireless Cable Cable Advanced Advanced Obtain an IP address Enable Click OK, the settings wil take ffect and the system will automatically Account Account restart immediately. IP address 0.0.0.0 Update Update...
Page 33 Control Panel Network and Internet Manage Wireless Networks Search MA... File Edit View Tools Help Manage wireless networks that use Sign In Windows tries to connect to these networks in the order listed below. Email: Remove Move down Adapter properties Profile types Network and Sharing Center Password:...
Page 34 Create a New Account Site Name Inverter Maximum 20 Letters Maximum file size: 4M; Upload lmage Default.jpg File types: jpg,png, bmp,gif ,pjpeg,jpg Country China Province/State Anhui City GUANGZHOU Street Locate Your Site On Map ZIP Code (GMT +08:00) Beijing,Chongqi Timezone Number Format 1234567.89 System Size(kWp)
Page 35 Home My Site Public Sites Account Zucchetti Centro Sistemi S.p.A. ZCS 1.1K~3KTL 3000TL Overview Real Time History Alert Report Settings Zucchetti Centro Sistemi S.p.A. nearby 28-34 C 6/5 light rain shower 28-33 C 6/6 Moderate or heavy rain shower 28-33 C...
