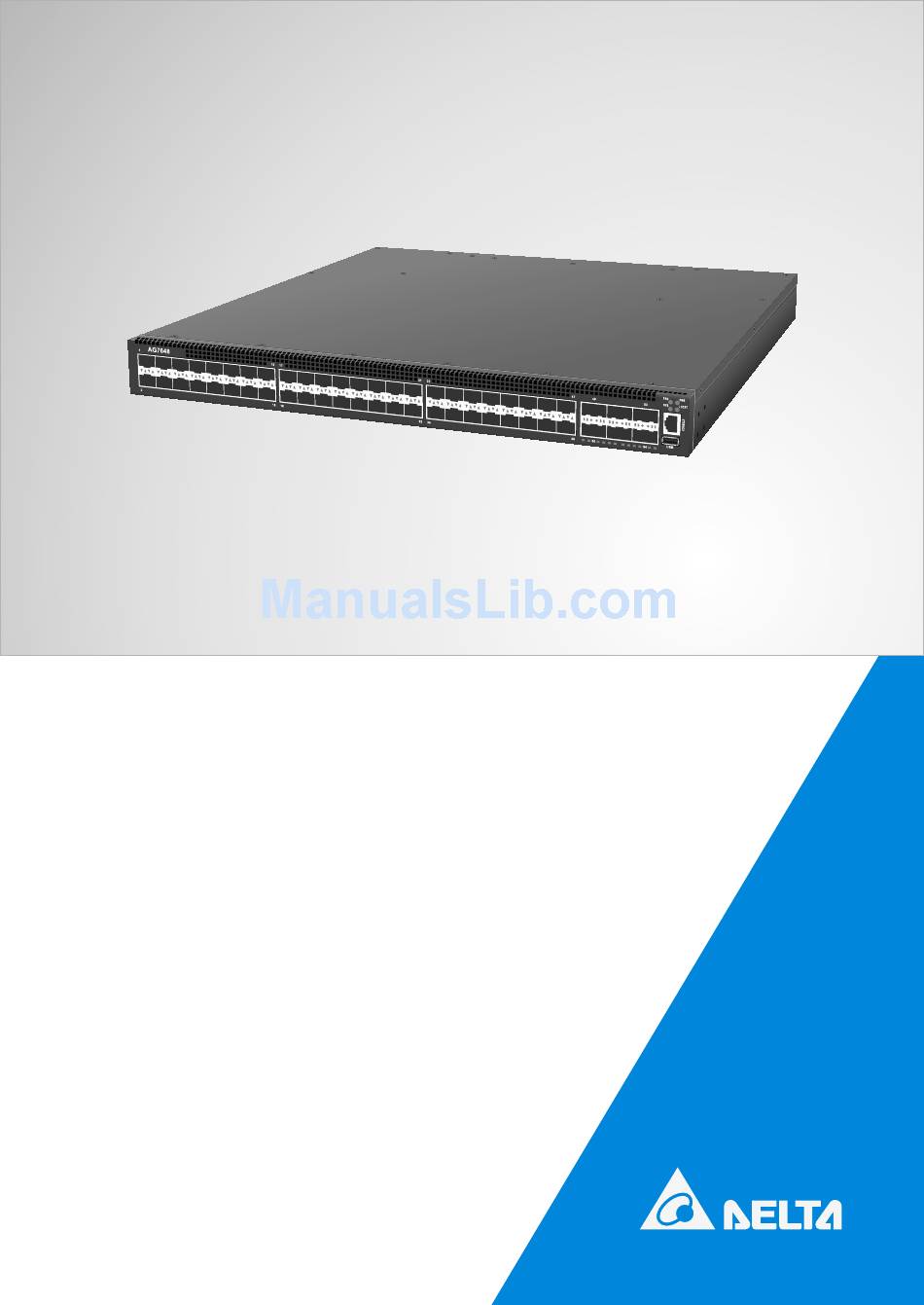

- Page 1 Delta Networking – Agema Family AG7648 ToR/leaf Switch Installation Guide...
- Page 2 All trademarks and logos mentioned in this guide are the properties of their respective holders. Copyright © Delta Products Corporation. All rights reserved. Regulatory and Safety Information This product has been tested in accordance to, and complies with the following safety standards and electromagnetic compatibility (EMC) inspection standards.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1: Introduction -------------------------------------------------------------------1 1.1 Overview ------------------------------------------------------------------------------------ 1 1.2 Package Content -------------------------------------------------------------------------- 1 1.3 Features ------------------------------------------------------------------------------------- 2 Chapter 2: Appearance and Mechanism --------------------------------------------3 2.1 Product Overview ------------------------------------------------------------------------- 3 2.2 LED Identification ------------------------------------------------------------------------- 4 2.3 System Requirements ------------------------------------------------------------------- 6 2.4 Data Center Deployment ---------------------------------------------------------------- 6 2.5 Power Supply Modules ------------------------------------------------------------------ 7 2.6 Fan Tray Module -------------------------------------------------------------------------- 8... -
Page 4: Chapter 1: Introduction
Chapter 1: Introduction Overview The AG7648 is a high performance ToR/leaf bare metal switch design for today data centers, who wish to avoid the vendor lock-in with integrated switch designs. The device has forty-eight 10GbE SFP+ ports and six 40GbE QSFP ports which provides comprehensive hardware capability on supporting layer 2, layer 3 and data center features, including VxLAN, L2GRE, NVGRE and MPLS, etc.. -
Page 5: Features
Chapter 1 • Introduction Features The following lists the main features of the AG7648 switch: • 48 x 10GbE SFP+ ports • 6 x 40GbE QSFP ports • 1 x OOB Management • 1 x Console port (RJ-45 type) • 1 x USB port •... -
Page 6: Chapter 2: Appearance And Mechanism
Redundant PSU x 2 (Figure 2-2: Rear View) NOTE: The switch supports up to two PSUs. However, it is shipped with one power supply pre-installed in the rear panel of the switch. You may purchase an additional PSU for redundancy. AG7648 ToR/leaf Switch... -
Page 7: Led Identification
Chapter 2 • Appearance and Mechanism LED Identification This section provides an overview of the front and rear LEDs. 2.2.1 Front LEDs QSFP+ Port LED Power LED System LED Upper SFP+ Port LED Locator LED Fan LED Lower SFP+ Port LED (Figure 2-3: Front LED Identification) Description Off –... - Page 8 • Solid Green – Power is ok • Power Supply Solid Yellow – Power supply critical event causing a shutdown; failure • Blinking Yellow – Power supply warning events where the power supply • continues to operate AG7648 ToR/leaf Switch...
-
Page 9: System Requirements
PWR1 PWR2 SYS FAN PWR1 PWR2 SYS FAN PWR1 PWR2 SYS FAN MGMT CONSOLE MGMT CONSOLE MGMT CONSOLE MGMT CONSOLE 40GbE QSFP+ uplink AG7648 AG7648 AG8032 Leaf AG7648 AG7648 LOCAT LOCAT PWR1 PWR2 SYS FAN MGMT CONSOLE 10GbE SFP+ 10GbE SFP+... -
Page 10: Power Supply Modules
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. • Remove the power cable from the module prior to removing the module itself. Power cable must not be connected prior to insertion in the chassis or equivalent. AG7648 ToR/leaf Switch... -
Page 11: Fan Tray Module
Chapter 2 • Appearance and Mechanism Fan Tray Module The fan tray module is part of the switch air cooling system that provides cooling for the switch. You must install the fan tray module in the switch that matches the airflow direction of the installed power supply unit. -
Page 12: Chapter 3: Installation
2. Mount the device in the rack, using four 12-24 rack-mounting screws. NOTE: Rack screws and clip nuts are not supplied in the rack-mounting kit. CAUTION: Due to the switch’s weight, it should be installed by at least two people. AG7648 ToR/leaf Switch... -
Page 13: Horizontal Surface Mounting
Chapter 3 • Installation (Figure 3-2: Installing the Switch in a Rack) 3. If installing a single switch only, go to “ Connecting to a Power Source ”. 4. If installing multiple switches, mount them in the rack, one below the other, in any order. 3.1.2 Horizontal Surface Mounting The switch includes four pre-installed rubber feet for horizontal surface mounting. -
Page 14: Installing An Optional Sfp+/Qsfp Transceiver
• SFP+/QSFP transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver. • SFP+/QSFP transceivers are not provided in the switch package. AG7648 ToR/leaf Switch... -
Page 15: Connecting To The Console Port
Chapter 3 • Installation Connecting to the Console Port This port is used to connect a console device to the switch through a nullmodem serial cable. The console device can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal. -
Page 16: Installing A Dc Power Supply
Power LED is on. If not, check that the power cable is correctly plugged in. 4. Repeat steps 1 and 2 when a second PSU module is installed. Two installed PSU modules operate in a load-sharing mode and provide 1+1 redundancy. AG7648 ToR/leaf Switch... - Page 17 Chapter 3 • Installation b. Adapter connector for DC source connection 1. Attach the connector directly into the DC socket of a PSU located at the back of the switch. -48V_RTN (+DC) -48V(-DC) (Figure 3-9: Assembling a DC Connector and Power Wires) 2.
-
Page 18: Chapter 4: Making The Network Connections
Chapter 4: Making the Network Connections The AG7648 switch is designed to provide high-speed, lossless Ethernet connections between server racks through its 10G SFP+ or 40G QSFP ports. This chapter describes how to make network connections to the switch. Twisted-pair Connections The switch’s Management port connection requires an unshielded twisted-pair (UTP) -
Page 19: Fiber Optic Connections
Chapter 4 • Making the Network Connections Fiber Optic Connections Optional 10G SFP+ or 40G QSFP transceivers can be used for fiber connections from the switch to other network devices in the data center. An SFP+ or QSFP transceiver may also be used for long distance connections to devices at another site. -
Page 20: Ethernet Cabling
• Protection from radio frequency interference emissions • Electrical surge suppression • Separation of electrical wires (switch related or other) and electromagnetic fields from data based network wiring • Safe connections with no damaged cables, connectors or shields AG7648 ToR/leaf Switch... -
Page 21: Appendix 1 : Technical Specifications
Appendix 1 : Technical Specifications Item Description Key components Switch controller BCM56854 x 1 BCM54616S x 1 (for console Management port) Intel Rangeley C2338 Processor Flash 16MB SPI Storage 8GB mSATA SSD System memory 2GB DDR3-SDRAM Network Protocol and Standards Compatibility •... -
Page 22: Appendix 2 : Warranty
During the warranty period, products for which proper claims are made will, at Delta’s option, be repaired or replaced at Delta’s expense. Customers may contact Delta’s technical support for warranty services, which may be provided either through Resellers or by Delta directly. -
Page 23: Return Policy
Any product returned to Delta or Resellers without prior Return Material Authorization (RMA) from Delta will be considered an unauthorized return, and you will not receive any repair or replacement for the product and Delta will not ship the product back to you. The authorization will be provided through the e-mail: AgemaTechSupport@deltaww.com.
