Installation, Operation, and
Maintenance Manual

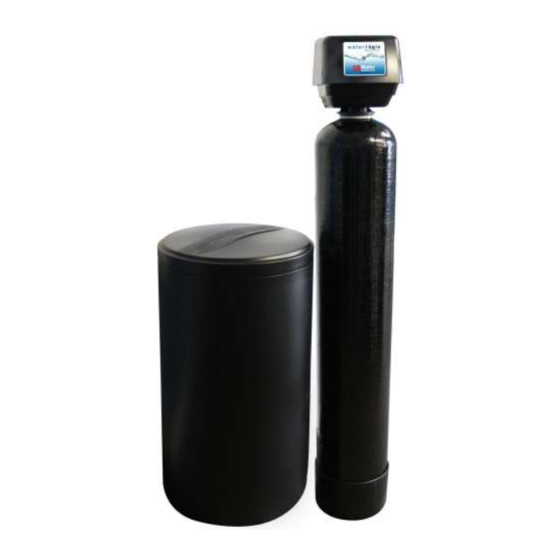

Waterlogix Metered Residential
Water Softener
Waterlogix WLS-075
Waterlogix WLS-075C
Waterlogix WLS-100
Waterlogix WLS-100C
Waterlogix WLS-150
Waterlogix WLS-200
US Water Systems, Inc.
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
support@uswatersystems.com
www.uswatersystems.com
Advertisement
Table of Contents
Related Manuals for US Water Systems Waterlogix WLS-075
Summary of Contents for US Water Systems Waterlogix WLS-075

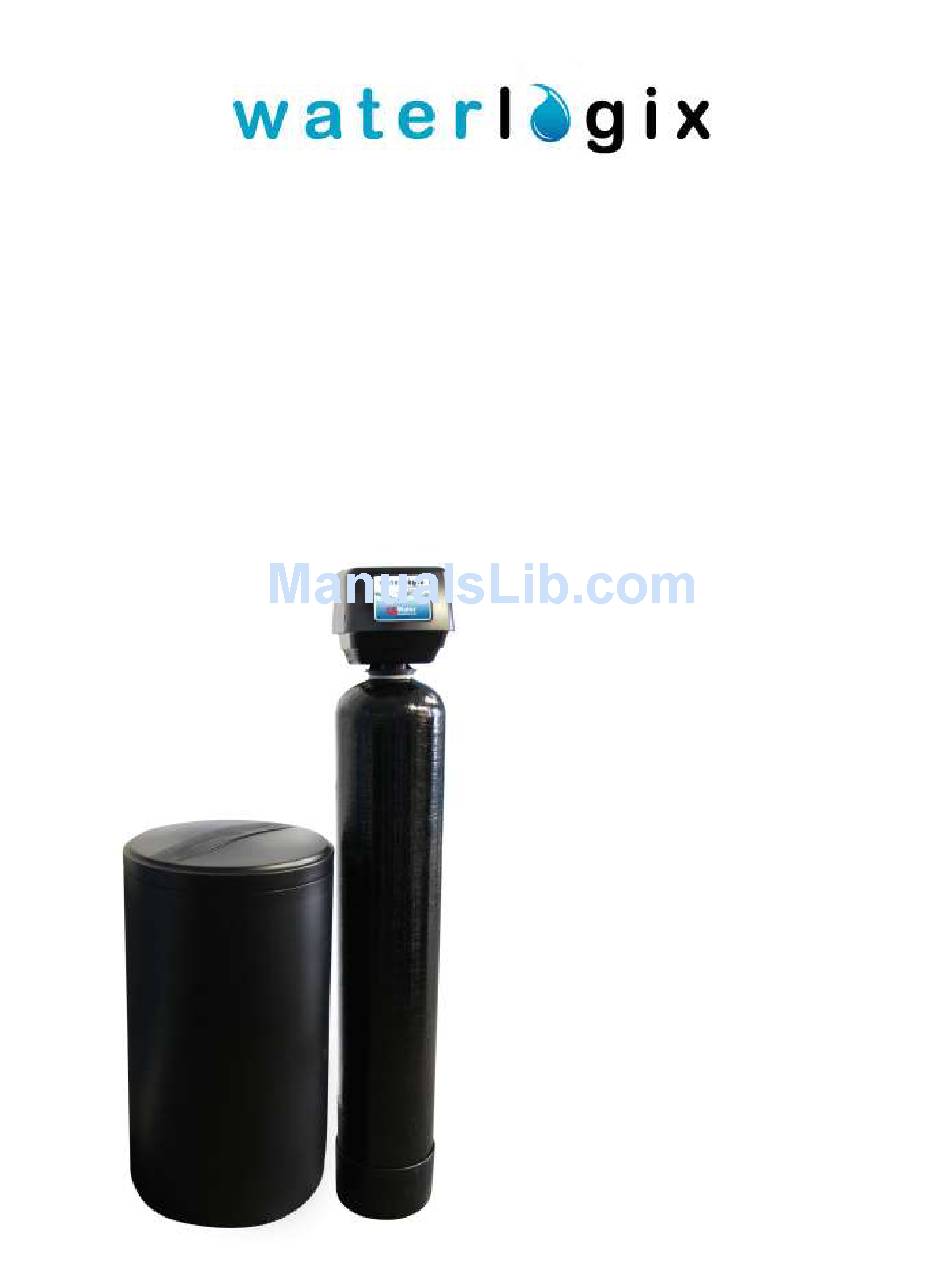

- Page 1 Installation, Operation, and Maintenance Manual Waterlogix Metered Residential Water Softener Waterlogix WLS-075 Waterlogix WLS-075C Waterlogix WLS-100 Waterlogix WLS-100C Waterlogix WLS-150 Waterlogix WLS-200 US Water Systems, Inc. 1209 Country Club Road Indianapolis, IN 46234 1-800-608-8792 support@uswatersystems.com www.uswatersystems.com...
-
Page 2: How A Water Softener Works
PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 – 125 PSI OPERATING TEMPERATURE RANGE : 33º F – 120º F INLET / OUTLET PIPE SIZE : 1” FNPT PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES!! Please read the entire Owner’s Manual and Instructions before installation. This Owner’s Manual must stay with the unit. -
Page 3: Installation Procedure
Softener Location / Other Requirements Locate the unit near an unswitched, 115 volt / 60 Hz grounded electrical outlet. Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic). NOTE : If household plumbing is galvanized and you intend to make the installation with cooper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. - Page 4 With the tape in place, install the supplied funnel and start to pour the media in the tank. You will put all the media that was sent to you in the tank. If you received gravel with your unit, you will pour the gravel in first before the softening resin.
- Page 5 at the outlet of the drain line is advisable to keep the drain line full and assure correct flow during regeneration. Elbows or other fittings must be kept at a bare minimum. NOTE : Where the drain line is elevated above the control valve or exceeds 20 foot in length, 3 / 4” I.D. drain line tubing should be used.
- Page 6 Metered Controls – Setting the Regeneration Schedule – When adjusting the softener settings, it is a good idea to write down the settings you used to determine the adjustment so you have that information in the future. You will need to know the size of your unit and the level of your hardness in GPG (Grains per Gallon).
-
Page 7: Start-Up Procedure
You have a 53,000 Grain Softener with a regeneration capacity of 36,000 Grains and a hardness level of 26 GPG. First add 5 GPG to 26 GPG = 31 GPG Then use the following formula; 36,000 Grains/31 GPG = 1,161.00 Subtract 75 gallons per person in the family 4 x 75 = 300 gallons So we would set the capacity wheel to 861 Gallons. - Page 8 Total Unit Capacity Regen Capacity Salt dosage Cubic Feet of Resin Chlorine Dosage 26,000 18,000 6 lb 0.75 .9 ounces 35,000 24,000 8 lb 1.00 1.2 ounces 53,000 36,000 12 lb 1.50 1.8 ounces 70,000 48,000 18 lb 2.00 2.4 ounces –...
- Page 9 US WATER WATERLOGIX WATER SOFTENER LIMITED WARRANTY This water conditioner is guaranteed to be free of material of manufacturing defects at the time of installation, where originally installed, to the original purchaser. The warranty period begins on the installation date, but but shall not begin later than six (6) months from the date of sale. There is a ten (10) year warranty on the fiberglass resin tank and brine tank, five (5) years on the valves, electronics, and all other parts.
