B e f o r e y o u s t a r t
This package contains a Source Four CDM profile spotlight with remote (2m)magnetic control gear.
Ensure that you have the correct fixture (5°, 10°, 19°, 26°, 36°, 50°) – this will be indicated on the carton.
In addition to the luminaire you will also have been supplied with;

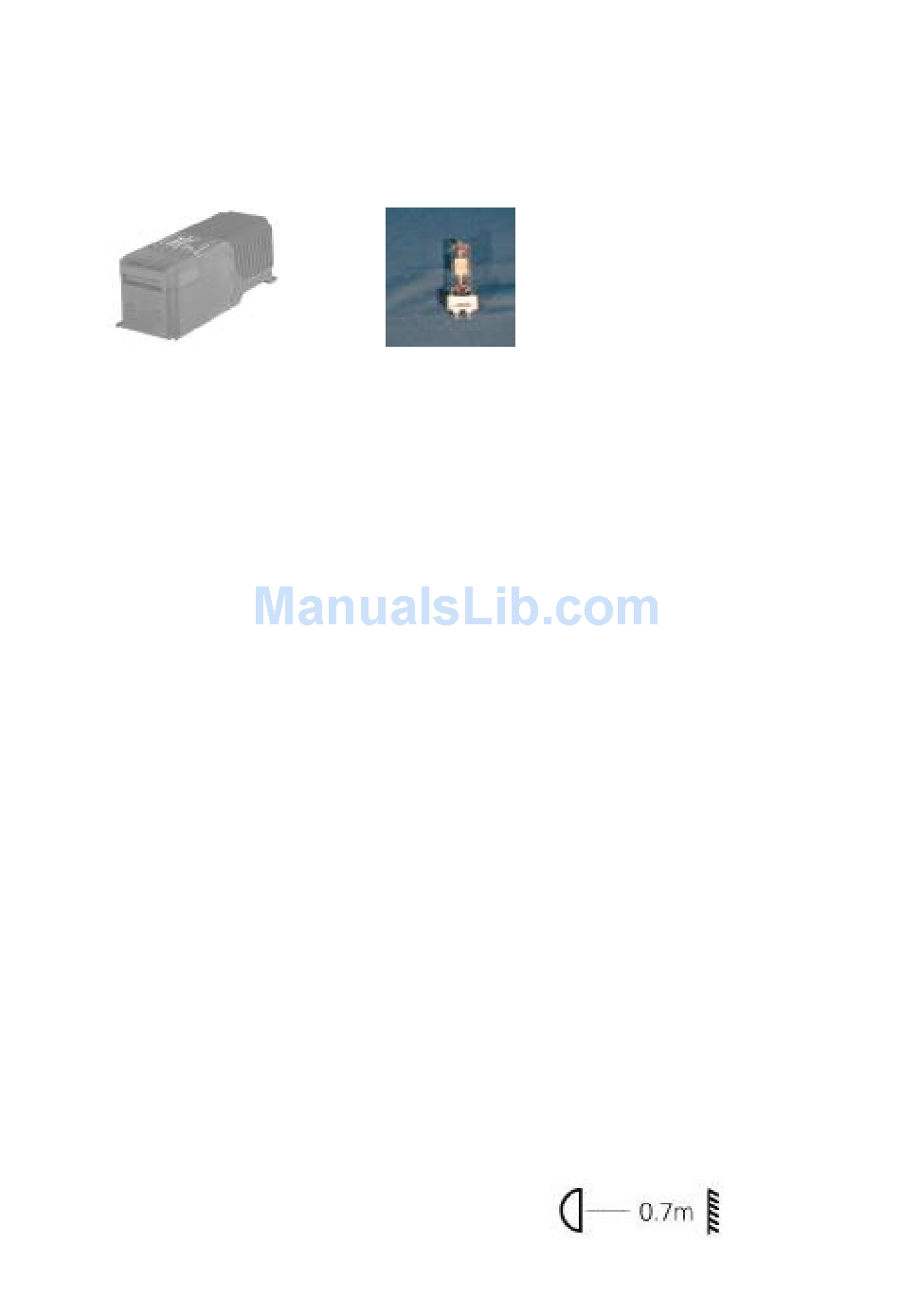

70/150W Magneticremote control
gear to suit local supply voltage
and frequency
Ensure that you have control gear to match the lamp wattage. Ensure that you have the correct colour temperature
lamp (see lamp replacement for further details)
Unpack & check for damage.
The Source Four CDM luminaire box should contain;
1 x Source Four CDM luminaire fitted with special lampholder assembly
1 x Hex Key
1 x Colour filter holder
If ordered with the fixture, other items including iris diaphragm, pattern holders and patterns may be included or
fitted. Please consult your box label and packing list for details.
S a f e t y I n f o r m a t i o n
This fixture is for professional use only. Read the entire manual before use.
•
Do not mount this fixture on or near a flammable surface
•
This fixture is for interior use only – for exterior applications use Callisto Exterior spotlight
•
We recommend the use of a safety cable as a secondary suspension
•
Always ensure that the colour frame clip is left in the locked position
•
Always replace the lamp if it is damaged or thermally deformed or is slow to start
•
Keep luminaire 0.7m from any lighted object
•
Disconnect the luminaire from power before cleaning, maintenance or re-lamping
•
Maximum ambient temperature t
•
Maximum surface temperature t
Philips mastercolour
70/150W CDM-T lamp
=45°C
a
=180°C
max
Page 2
