Full line seizure wiring with one premises phone
If a single phone is all that exists on the premises, full line seizure can be accomplished without an RJ31X
(Figure 8 on page 25).
1. Disconnect the phone from the premises phone jack and plug it into the panel PHONE jack
jack is disconnected automatically whenever the panel reports.
2. Connect the included phone cord to the panel LINE jack and the premises phone jack
Note: If customers add phones or other phone devices to another phone jack, full line seizure no longer exists. Inform them to
contact you if they want to add a phone or other device so that you can rewire for full line seizure by adding an RJ31X.

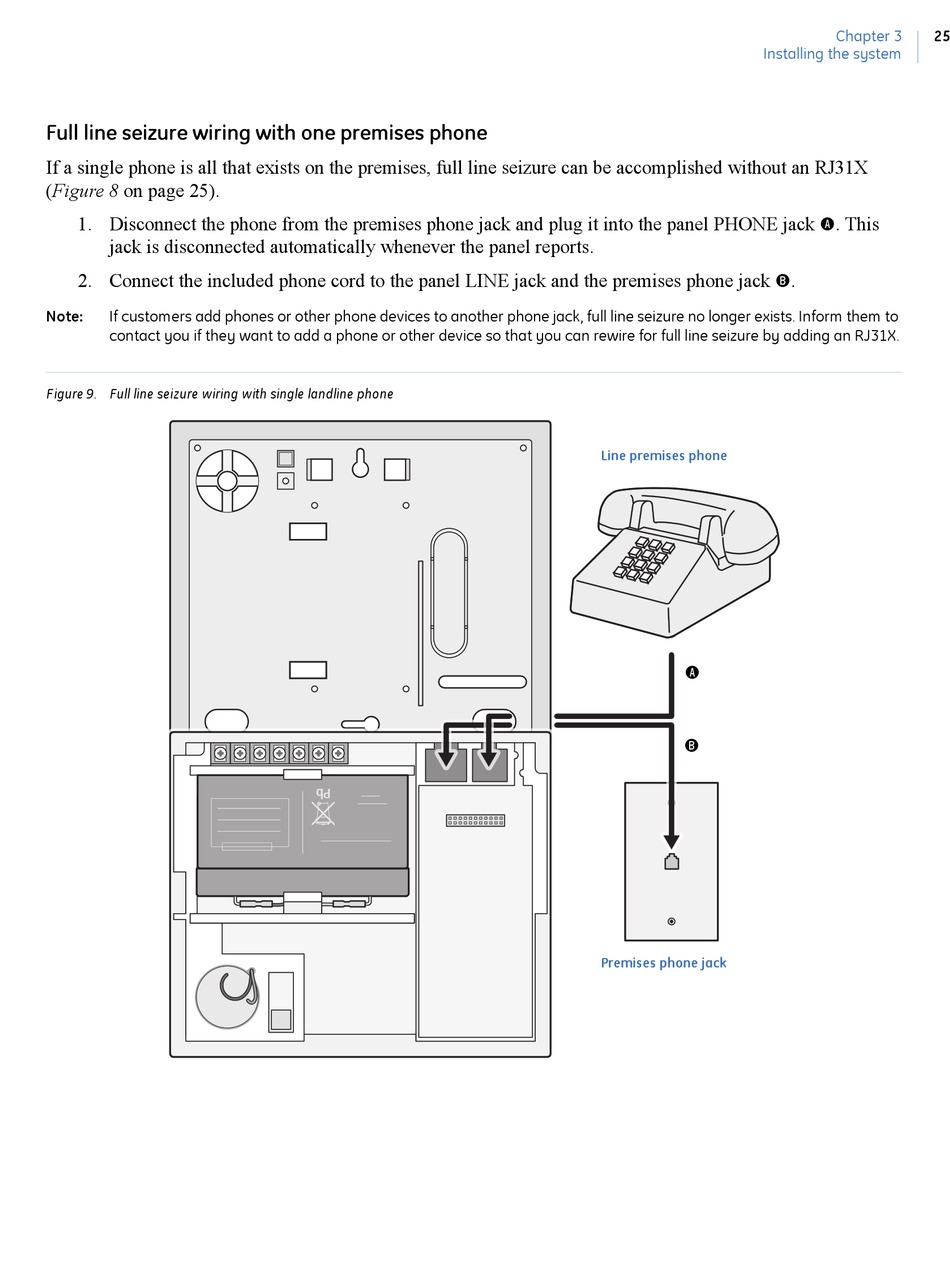

Figure 9. Full line seizure wiring with single landline phone
Installing the system
B
Line premises phone
A
B
Premises phone jack
Chapter 3 25
. This
A
.
