EO
TRANSOM-MOUNT ELECTRIC OUTBOARD MOTOR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EO 1/2 HP and is the answer not in the manual?

Questions and answers

Summary of Contents for MINN KOTA EO 1/2 HP

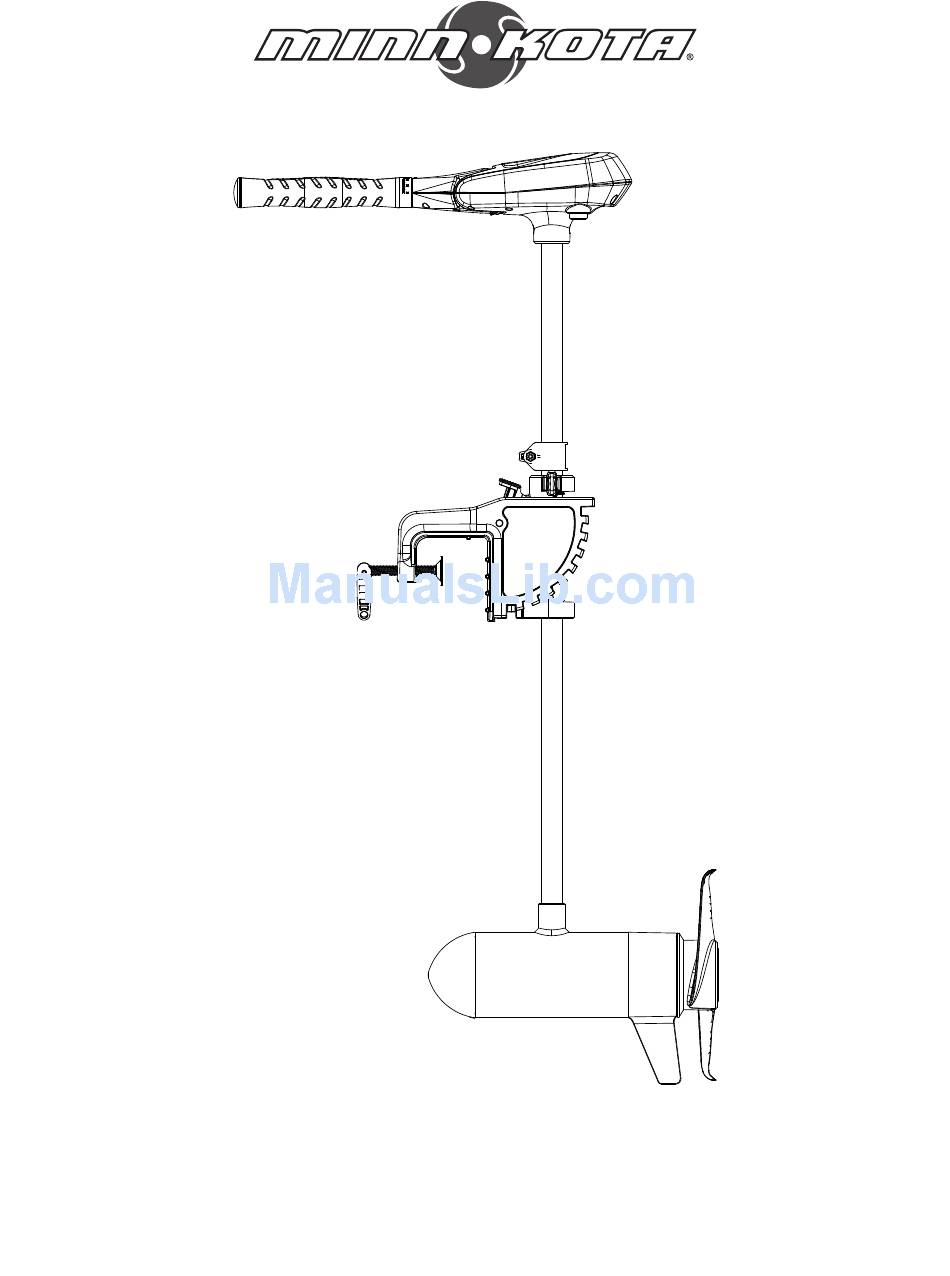

  • Page 1 TRANSOM-MOUNT ELECTRIC OUTBOARD MOTOR USER MANUAL...
  • Page 2 REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR MOTOR. NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center.
  • Page 3 FEATURES Battery Meter Tilt/Extend Tiller Controls: on/off, speed, forward/reverse and direction EO Digital Maximizer™ Quick Release Depth Collar Quick Release Tilt Lever Steering Tension Knob 9-Position, Heavy-Duty Lever Lock Mounting Bracket Transom Clamp Screws Weedless Wedge 2 Prop Lifetime Warranty Flexible Composite Shaft Cool Quiet Power Motor Specifications subject to change without notice.
  • Page 4: Motor Installation

    Ball Detent 3. Push the outer handle into the control box until handle “clicks” into place. The handle is held in place with locking fingers, so some force may be required to lock the handles together. INSTALLATION 4. Once the handle is locked into the control box, it can be rotated and extended for normal use. Outer Handle 5.
  • Page 5: Battery Wiring & Installation

    CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below.
  • Page 6: Selecting The Correct Batteries

    (within 12-24 hours) is the leading cause of premature battery failure. We offer a wide selection of lead-acid chargers to fit your charging needs. We recommend that you use separate batteries for your Minn Kota EO motor. Advice Regarding Batteries: •...
  • Page 7: Motor Wiring Diagram

    MOTOR WIRING DIAGRAM BATTERY METER BLACK SPEED ADJUSTMENT KNOB CONTROL BOARD RED B+ BLACK B- 12V BATT 1 MOTOR 12V BATT 1 12V BATT 2...
  • Page 8: Using & Adjusting The Motor

    USING & ADJUSTING THE MOTOR ADJUSTING THE DEPTH OF THE MOTOR Adjustable Depth Collar Knob When setting the depth be sure the top of the motor is submerged at least Quick-Release Depth Collar Steering Tension Knob 12” to avoid churning or agitation of surface water. The propeller must be Steering Tension Knob completely submerged.
  • Page 9: Stowing The Motor

    USING & ADJUSTING THE MOTOR ADJUSTING THE TILT TWIST TILLER™ The twist grip tiller handle is shipped in the down position. Firmly pull the handle up to the horizontal position. The handle has seven available positions: 45˚ 30˚ and 15˚ up and down from 0˚.
  • Page 10: Service And Maintenance

    SERVICE & MAINTENANCE PROPELLER REPLACEMENT Propeller TOOLS AND RESOURCES REQUIRED: • Box End Wrench • 9'16" Box End Wrench - 1/2” for motors with 70 lbs thrust or lower. - 9/16” for motors with 80 lbs thrust or higher. • Screwdriver (optional) Anode/Nut Washer CAUTION:...
  • Page 11: Troubleshooting And Repair

    TROUBLESHOOTING & REPAIR 1. Motor fails to run or lacks power: • Check battery connections for proper polarity. • Make sure terminals are clean and corrosion free. Use fi ne sandpaper or emery cloth to clean terminals. • Check battery water level. Add water if needed. 2.
  • Page 12: Parts Diagram

    PARTS DIAGRAM EO ELECTRIC OUTBOARD 1/2 HP 1/2 HORSEPOWER - 12 VOLT - 36” SHAFT This page provides Minn Kota® WEEE compliance disassembly instructions. 1025 For more information about where you should dispose of your waste 1030 equipment for recycling and recovery and/or your European Union member...
  • Page 13: Parts List

    PARTS LIST EO ELECTRIC OUTBOARD 1/2 HP 1/2 HORSEPOWER - 12 VOLT - 36” SHAFT PART PART ITEM DESCRIPTION ITEM DESCRIPTION NUMBER NUMBER 2316290 12V MOTOR 4” SW 1/2 HP 2062801 TENSION BLOCK 2-100-225 ARMATURE ASSEMBLY 2077202 LEVER-TILT, TRANSOM BRACKET 140-010 BEARING 2070512...
  • Page 14: Environmental Compliance Statement

    Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.
  • Page 15: Recommended Accessories

    RECOMMENDED ACCESSORIES PORTABLE BATTERY CHARGERS 60-AMP CIRCUIT BREAKER Bring the action right to the boat. Our Portable chargers Protects motor from electrical damage. 60 amp rating with charge your battery in multiple stages to keep you on manual reset. Fully waterproof. Compatible with all 12-, 24- the water longer, and they’re designed and 36-volt systems.

This manual is also suitable for:

Eo 1 hp
