Operating manual
• Cutting unit
The cutting unit contains the actual working parts of the FASTBIT key-cutting machine, which operate together to
cut and fi nish keys "read" from the originals. The working parts are described below.
• Cutting Tool
The cutting tool (F) is the part of the FASTBIT used for cutting key blanks. The cutting tool is in HSS super rapid
steel and is protected by a special cover (N) to ensure safe operation.
• Micrometric tracer point
The tracer point (E) dedicated to reading the cuts on keys to be copied is housed on the left-hand side of the
machine. Depth is easily regulated by means of the relevant centesimal ring nut (G).
• Clamp knobs
The clamps are locked by two anatomical handles (J1), which ensure perfect grip on the keys with only slight
locking pressure.
• Brush
The brush (S) is used to eliminate burrs from the cuts and is made of non-abrasive material. Press the motor start
switch (K) to activate the brush.
• Clamps
The clamps (J) comprise two jaws which ensure perfect hold on the shafts of bit/double bit and pump keys.

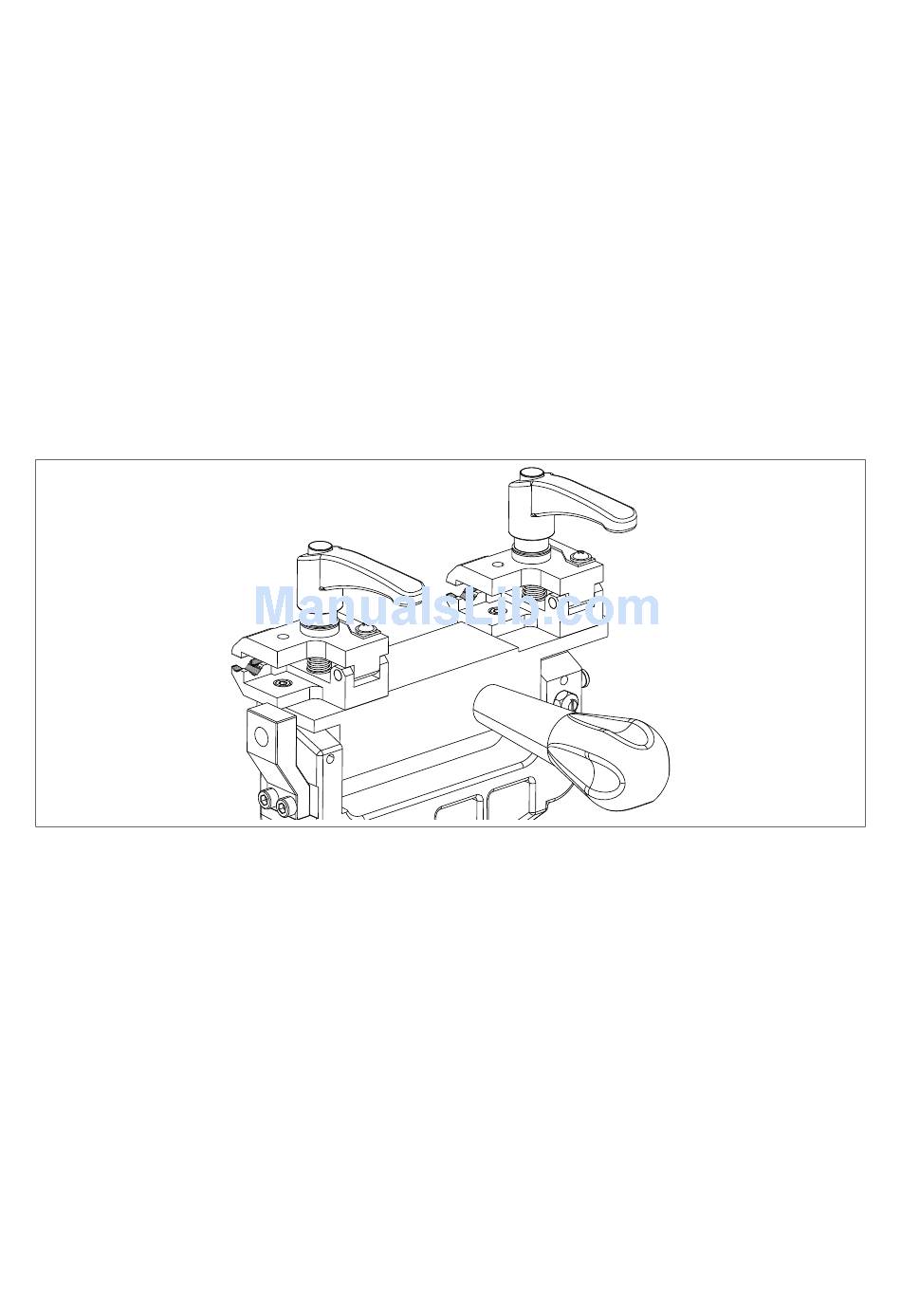

Fig. 5
