2
PANEL DESCRIPTION

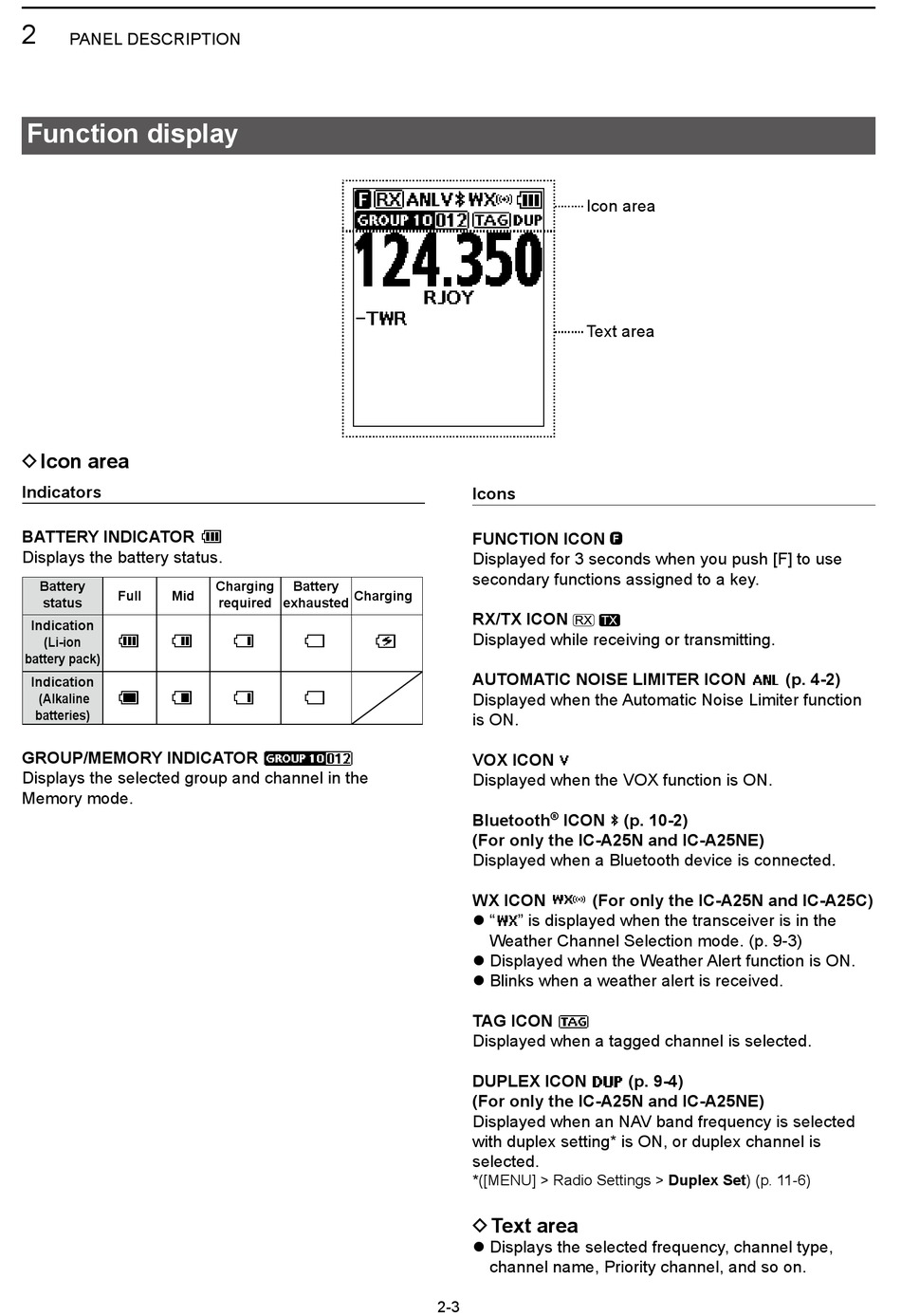

Function display

D Icon area
Indicators
BATTERY INDICATOR
Displays the battery status.
Battery
Full Mid
status
Indication
(Li-ion
battery pack)
Indication
(Alkaline
batteries)
GROUP/MEMORY INDICATOR
Displays the selected group and channel in the
Memory mode.
Charging Battery
exhausted Charging
required
Icon area
Text area
Icons
FUNCTION ICON
Displayed for 3 seconds when you push [F] to use
secondary functions assigned to a key.
RX/TX ICON
Displayed while receiving or transmitting.
AUTOMATIC NOISE LIMITER ICON
Displayed when the Automatic Noise Limiter function
is ON.
VOX ICON
Displayed when the VOX function is ON.
Bluetooth ® ICON
(For only the IC-A25N and IC-A25NE)
Displayed when a Bluetooth device is connected.
WX ICON (For only the IC-A25N and IC-A25C)
z " " is displayed when the transceiver is in the
Weather Channel Selection mode. (p. 9-3)
z Displayed when the Weather Alert function is ON.
z Blinks when a weather alert is received.
TAG ICON
Displayed when a tagged channel is selected.
DUPLEX ICON
(For only the IC-A25N and IC-A25NE)
Displayed when an NAV band frequency is selected
with duplex setting* is ON, or duplex channel is
selected.
*([MENU] > Radio Settings > Duplex Set) (p. 11-6)
D Text area
z Displays the selected frequency, channel type,
channel name, Priority channel, and so on.
2-3
(p. 4-2)
(p. 10-2)
(p. 9-4)
