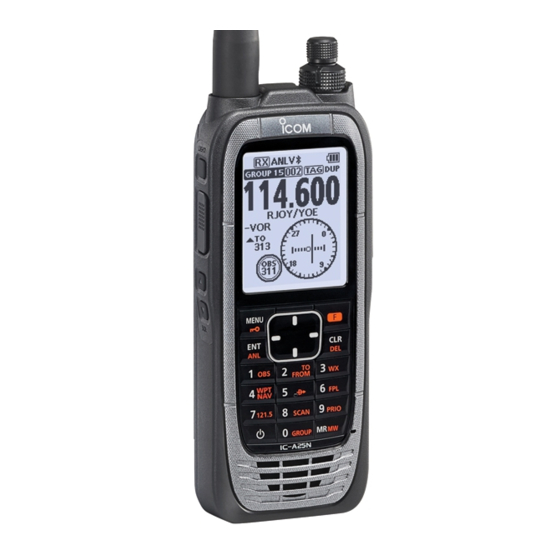

- Page 1 BASIC MANUAL VHF AIR BAND TRANSCEIVERS iA25N iA25C iA25NE iA25CE...
-
Page 2: Important
Headset adapter Power adapter Battery charger MANUAL on the Icom website for details. (For Battery charger) http://www.icom.co.jp/world/support/download/manual For IC-A25N and IC-A25NE’s Basic Navigation features and instructions, see the NAVIGATION GUIDE for details. EXPLICIT DEFINITIONS NOTE: WORD DEFINITION • Some accessories are not supplied, or the shape is different, Personal death, serious injury or an depending on the transceiver version. -
Page 3: Precautions
DO NOT place or leave the transceiver in direct sunlight or in areas R DANGER! NEVERuseorchargeIcombatterypackswithnon- withtemperaturesbelow–10°C(–14˚F)orabove+60°C(+140˚F). Icomtransceiversornon-Icomchargers.OnlyIcombatterypacks are tested and approved for use with Icom transceivers or charged Keep the transceiver in a secure place to prevent use by withIcomchargers.Usingthird-partyorcounterfeitbatterypacksor unauthorizedpersons. -
Page 4: Précautions
CONSERVEZ l'émetteur-récepteur à l'abri des fortes pluies et UtilisezetchargezuniquementlespacksbatterieIcomspécifiés neleplongezjamaisdansl'eau.Cetémetteur-récepteurrépond aveclesterminauxIcomouleschargeursIcom.Seulslespacks auxexigencesdelanormeIP57enmatièredeprotectioncontre batterie Icom sont testés et homologués pour une utilisation lapoussièreetderésistanceauxéclaboussures.Cependant, aveclesterminauxIcomouêtrechargésavecleschargeurs en cas de chute de l'émetteur-récepteur, la protection contre la Icom.L'utilisationdepacksbatterieoudechargeurstiersoude poussièreetlarésistanceauxéclaboussuresnepeuventplusêtre contrefaçonpeutêtreàl'originedefumées,d'incendieoufaire garanties,carleboitierrisqued'êtrefissuréoulejointd'étanchéité éclater la batterie. -
Page 5: Table Of Contents
Contact your Icom distributor or your dealer for advice. TABLE OF CONTENTS 4 BASIC OPERATION .............. 8–9 IMPORTANT ..................i ■ Receiving and transmitting ............. 8 EXPLICIT DEFINITIONS ..............i... -
Page 6: Panel Description
Push to select the emergency frequency. Microphone SCAN KEY [8]/[SCAN] Speaker Push to start a scan. L Push [CLR] to stop a scan. * There are some keys and functions for only the IC-A25N and IC-A25NE. Refer to the NAVIGATION GUIDE for details. - Page 7 PANEL DESCRIPTION PRIORITY CHANNEL KEY [9]/[PRIO] !4 HEADSET JACK Push to turn the Priority Watch function ON or OFF. Connects a third party headset through the supplied GROUP KEY [0]/[GROUP] Headset adapter. Push to display the “Group List” screen, to change the !5 VOLUME CONTROL KNOB [VOL] group in the memory mode.
-
Page 8: Function Display
Text area VOX ICON Displayed when the VOX function is ON. Bluetooth ® ICON (For only the IC-A25N and IC-A25NE) Displayed when a Bluetooth device is connected. D Icon area WX ICON (For only the IC-A25N and IC-A25C) Indicators z “... -
Page 9: Battery Charging
If buildup in the battery cells, such as could occur near fires or any of these conditions occur, contact your Icom dealer or stoves, inside a sun-heated vehicle, or in direct sunlight for distributor. -
Page 10: Charging Caution
BATTERY CHARGING ■ Charging caution ■ Battery caution (continued) CAUTION: Shorter battery life could occur if the battery is left fully charged, completely discharged, or in an excessive R DANGER! NEVER charge the battery pack in areas with temperature environment (above +60°C (+140°F)) for extremely high temperatures, such as near fires or stoves, an extended period of time. -
Page 11: Battery Charger
BATTERY CHARGING ■ Battery charger ■ Battery case You can charge the supplied battery pack using the supplied When using the supplied battery case*, install 6 × AA (LR6) battery changer and power adapter. size Alkaline batteries, as shown below. z Charging time: approximately 3 hours. -
Page 12: Menu Screen
Priority CH version or presettings. Ask your dealer for details. http://www.icom.co.jp/world/support/download/manual For only the IC-A25N and IC-A25NE. For only the IC-A25N and IC-A25C. Not displayed, when the Waypoint Navigation function is not used. Not displayed, if no Waypoints are saved. * Not displayed, if no Flight Plans are saved. -
Page 13: Basic Operation
BASIC OPERATION ■ Receiving and transmitting D Receiving D Setting the frequency When receiving a signal, “RX” is L If the transceiver is in the Memory mode, push [CLR] to exit the Memory mode. displayed and audio is heard. z Use the keypad to set the frequency. L Rotate volume control knob to adjust the audio output level. -
Page 14: Selecting The 121.5 Mhz Emergency Frequency
BASIC OPERATION ■ Selecting the 121.5 MHz emergency frequency In case of emergency, you can immediately select the 121.5 MHz emergency frequency. z Push [F], and then push [121.5] to select the emergency frequency. L Push [CLR] to return to the previously selected frequency. -
Page 15: Headset Connection
HEADSET CONNECTION Connect your headset through the supplied headset adapter. Use the Side Tone function to output your transmitted voice to the headset ([MENU] > Sounds Settings > Side Tone). PTT switch (User supplied, if necessary) Use a PTT switch with a 3.5 mm (1/8 inch) plug. -
Page 16: Specifications And Options
More than 35 dB • Spurious emissions: More than 46 dB* D General • Frequency stability ±0.4 kHz • Frequency range: IC-A25N/IC-A25NE 118.000 ~ 136.99166 MHz D Receiver 108.000 ~ 136.99166 MHz • Receive system: Double conversion superheterodyne 161.650 ~ 163.275 MHz* •... -
Page 17: Options
• FA-B02AR antenna About the third party Bluetooth headsets:* D Belt clip and belt hangers Icom has checked the PTT operation with some 3M Peltor headsets such as the WS Headset XP, WS ProTac XP and • MB-133 belt clip WS Alert XP. -
Page 18: Information
INFORMATION ■ Channel ID list • Channel spacing: 8.33 kHz • Channel spacing: 25 kHz (Actual frequency is displayed.) Operating Frequency (MHz) Channel ID Operating Frequency (MHz) Channel ID (Displayed Frequency) (Displayed Frequency) 118.0000 118.000 118.0000 118.005 118.0083 118.010 118.0250 118.025 118.0167 118.015... -
Page 19: About Ce
INFORMATION ■ About CE ■ Country code list Versions of the IC-A25NE and IC- • ISO 3166-1 A25CE which have the “CE” symbol on Country Codes Country Codes the product, comply with the essential 1 Austria 18 Liechtenstein requirements of the Radio Equipment 2 Belgium 19 Lithuania Directive, 2014/53/EU, and the restriction... -
Page 20: Firmware Version Identification
INFORMATION ■ Firmware version ■ FCC information identification This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection You can identify your transceiver’s against harmful interference when the equipment is operated in firmware version in the “Version”... -
Page 21: Safety Training Information
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body • FCC KDB Publication 447498 D03, Evaluating Compliance with FCC when transmitting and only use the Icom belt-clips which are listed on page Guidelines for Human Exposure to Radio Frequency Electromagnetic 12 when attaching the radio to your belt, or other place, to ensure FCC and Fields. -
Page 22: Infomation En Matiére De Sécurité
• Norme de l’ANSI: IEEE C95.3-1992 sur la méthode d’évaluation Interférence électromagnétique et compatibilité recommandée du champ magnétique potentiellement dangereux des En mode de transmission, votre radio Icom produit de l'énergie de RF qui radiofréquences et des micro-ondes. peut provoquer des interférences avec d'autres appareils ou systèmes. Pour •... -
Page 23: Index
INDEX Accesssories, supplied ............i Transmitting ..............8 Automatic Noise Limiter ...........8 Battery ................4 Battery case ..............6 Caution ................4 Charging ..............6 Channel ID list ..............13 Emergency frequency ............9 Firmware version .............15 Function display ...............3 Headset connection ............10 Menu screen ..............7 Options ................12 Panel description .............1 Recall channels ...............9 Receiving .................8... - Page 24 A7388H-1EX Printed in Japan 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan 2017 Icom Inc. ©...
