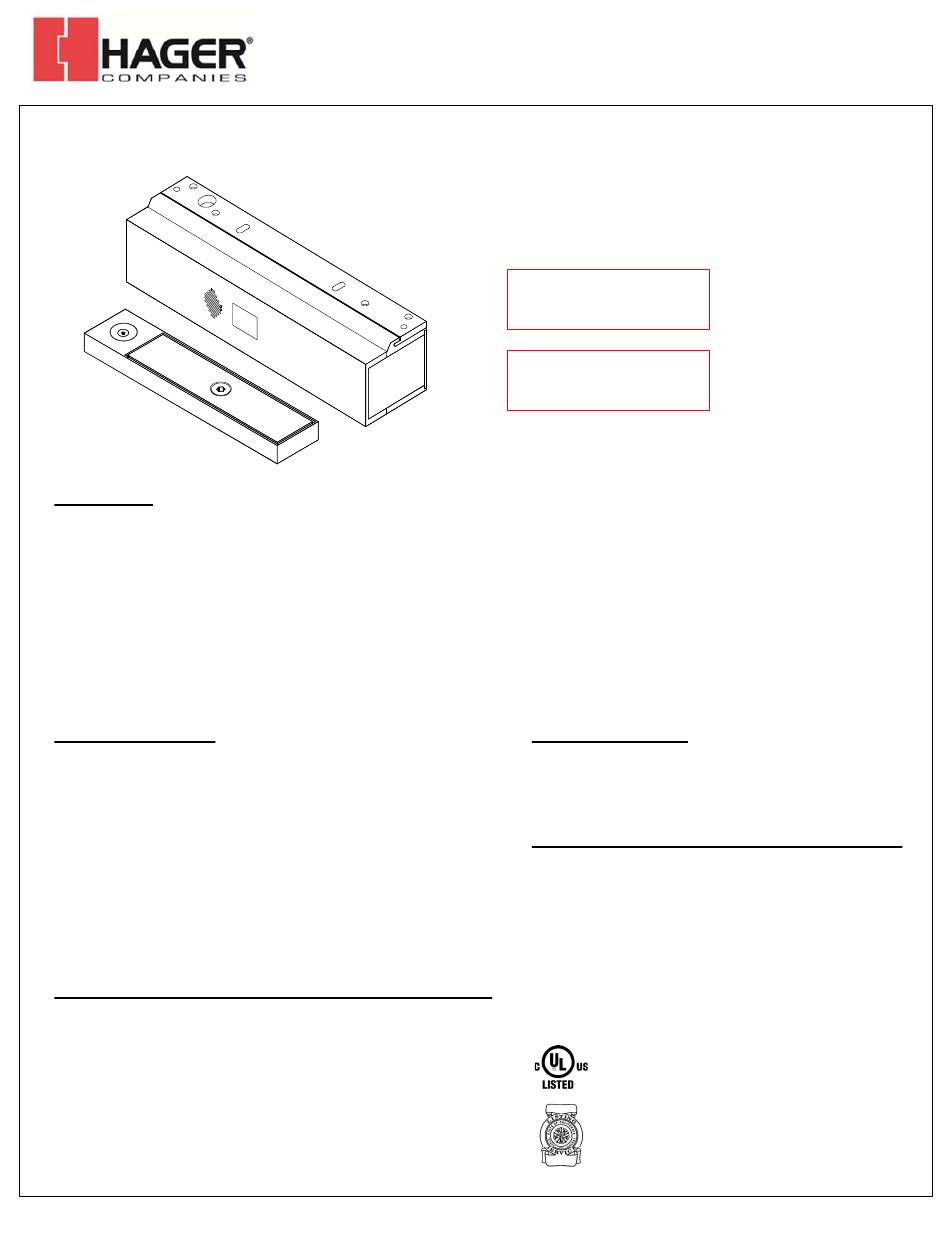

Delayed egress maglock
Hide thumbs Also See for 2958:

Advertisement

Application
When unauthorized egress is initiated, the 2958 delays egress through the door for 15 or 30 seconds. Meanwhile, the
person exiting must wait while personnel or security respond. An integral digital countdown display and voice
commands inform the person intending to exit of the seconds remaining to unlock. The door unlocks after 15 or 30
seconds have elapsed, permitting egress. A signal from the fire/life safety system will release the lock for uninhibited
egress in an emergency.
Applications include:
Restricting the egress of patients for their own safety.
Restricting the egress of commercial center patrons for security application needs.
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
Standard Features
1650 lbs. Holding Force
15 or 30 Second Exit Delay when activated.
1 or 2 Second Nuisance Delay
75dB Alarm Tone with Digital Display & Selectable Voice
Choice of Activation Trigger:
- Door Movement
- Exit Device w/ REX Switch
- Touch Sense Bar w/REX Switch
Vandal resistant Proximity Sensor Trigger
Auto Sensing 12/24VDC input power
Connection for Tandem Option (Pairs of Doors)
Selectable Automatic & Manual Power-Up Feature
Auto Power-Up – Occurs when power is restored and/or the
fire panel is restored.
Manual Power-Up –
Compliant Feature –
panel reset may the lock be reset manually at the opening.
Lock can be reset with the built-in reset key switch or, a key
switch or keypad adjacent to the door.
Rev 2, Rev Date: 02/14/23
INSTALLATION INSTRUCTIONS
DELAYED EGRESS MAGLOCK
This is a UBC & California Building Code
Only after power restoration and fire
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
2958 / 2958T
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR
WILL OPEN IN 15 SECONDS.
ALARM WILL SOUND.
Optional Features
DPS Door Position Switch
MBS Bond Alert Sensor
ATS Anti Tamper Switch
Building & Fire Life Safety Code Compliant
IBC International Building Code
IFC International Fire Code
NFPA 101 Life Safety Code
NFPA 1, UFC, Uniform Fire Code
UBC Uniform Building Code
CBC California Building Code
SBC Standard Building Code
BOCA National Building Code compliant
Chicago Building Code compliant
GWXT, GWXT7 - Auxiliary Locks - UL,cUL Listed
FWAX - Special Locking Arrangements - UL Listed
CSFM #3774-0324:103
2958 Delayed Egress Maglock
Installation Instructions
California Building
Code Compliant
California State
Fire Marshal Listed
I-EA00051
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2958 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hager 2958

  • Page 1 ALARM WILL SOUND. Application When unauthorized egress is initiated, the 2958 delays egress through the door for 15 or 30 seconds. Meanwhile, the person exiting must wait while personnel or security respond. An integral digital countdown display and voice commands inform the person intending to exit of the seconds remaining to unlock. The door unlocks after 15 or 30 seconds have elapsed, permitting egress.
  • Page 2: Specifications

    ARMATURE ARMATURE & MOUNTING PLATE ARMATURE BASE SCREW PACK SCREW PACK Always visit www.hagerco.com for the latest Installation Instructions Page 2 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 3 - For applications with heavier gauge material, drill (#21) and tap for #10-32 machine screws. Always visit www.hagerco.com for the latest Installation Instructions Page 3 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 4 Figure 1B Figure 1C REGULAR WITH FILLER PLATE WITH ANGLE BRACKET Always visit www.hagerco.com for the latest Installation Instructions Page 4 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 5: Display Modes

    (OPTIONAL) *NOTE: BAS Relay on the board is the MBS Relay. Always visit www.hagerco.com for the latest Installation Instructions Page 5 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 6 SLAVE *NOTE: BAS Relay on the board is the MBS Relay. Always visit www.hagerco.com for the latest Installation Instructions Page 6 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 7: System Operation

    System Operation 2 conductors AC Mains To Smoke To Fire Panel Power 1. Close and hold REX input. The 2958 will be in Detection System Supply the Bypass mode and will be unlocked. 2 conductors To Patient 2. Whenever the IBO input is closed and held, Protection System the 2958 will instantly relock and rearm.
  • Page 8 ExitCheck™ will relock and rearm upon closure of the door. *NOTE: BAS Relay on the board is the MBS Relay. Always visit www.hagerco.com for the latest Installation Instructions Page 8 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 9: Jumper Settings

    Exit Delay cycle time. The Nuisance Delay time period is included in the lock release cycle and it will not increase or decrease the “total time to unlock” once the 2958 is activated. Releasing the door before the end of the Nuisance delay time will turn off the warning alarm and reset the 2958 to secure mode.
  • Page 10 BOCA compliant. Automatic alarm reset after 30 continuous seconds of door closure 30 sec Always visit www.hagerco.com for the latest Installation Instructions Page 10 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
  • Page 11 LED display will display the delay time without having to reset the lock. STEP 5. Activation of the 2958 can be made by door movement or an external trigger. When using the door movement method, activation is achieved through the way the armature hardware is designed.
  • Page 12 Latching Exit Device with 4801 Non-Latching Sense Bar Trigger Built-in Switch Kit Trigger Always visit www.hagerco.com for the latest Installation Instructions Page 12 of 12 Rev 2, Rev Date: 02/14/23 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995...
