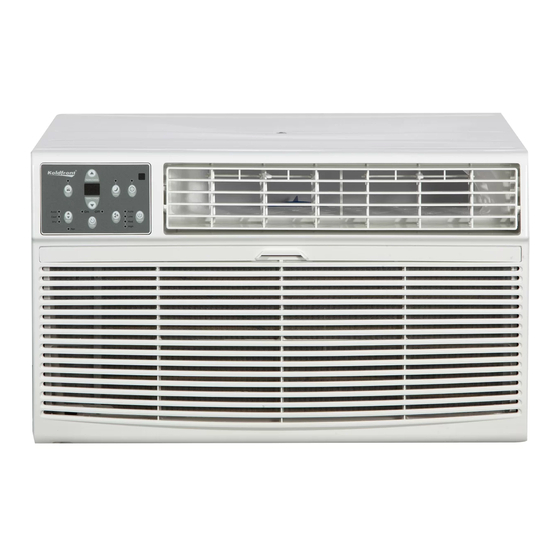

- Page 1 Through The Wall Air Conditioner Models: WTC8002WCO WTC10002WCO115V WTC10012WCO230V WTC12002WCO115V WTC12012WCO230V WTC14012WCO230V Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.0-02132017...
-
Page 2: Important Safety Information
Important Safety Information Warning: The water produced by the window AC is not potable or suitable for drinking. Do not drink the water drained from the unit as it contains contaminates and could make you sick. Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information Electrical Safety ... -
Page 3: Operation Of Safety Plug
Operation of Safety Plug Note: Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste. Your air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug. -
Page 4: Table Of Contents
..................11 LTERNATE AND UPPLEMENTAL NSTALLATION NSTRUCTIONS Install Rear Louver Panel / Grille Directly on Back of Air Conditioner ................11 Non-Koldfront Wall Sleeve Types…………………......................12 CONTROL PANEL OPERATIONS..........................13 …………………… ....................... 13 SING THE ONTROL ANEL To Turn Unit on…………………………………......................13 To Change Temperature………………………. - Page 5 SPECIFICATIONS………………………........................22 EDGESTAR LIMITED WARRANTY ..........................23...
-
Page 6: Introduction
Introduction Thank you for purchasing this Koldfront by EdgeStar air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 7: Component Identification
Component Identification Air Conditioner Unit Wall Sleeve (purchased or provided separately) -
Page 8: Preparations For Installation
Tools You May Need: • Flat Screwdriver or Putty Knife • Phillips Screwdriver • Tape Measure • Level • Drill Parts Supplied: The parts below are intended to be used in conjunction with a Koldfront branded Wall Sleeve. Part Name... -
Page 9: Installation Instructions
Attach Front Frame pieces Before Getting Started Your Koldfront though the wall air conditioner is designed to be installed in conjunction with a wall sleeve. If you are installing your new Koldfront air conditioner into an existing wall sleeve, please check to confirm that the wall sleeve is in sound structural condition and that is sized appropriately to accommodate your Koldfront air conditioner. -
Page 10: Preparing The Wall Sleeve
Koldfront’s line of through the wall air conditioners and can be purchased at www.livingdirect.com. To properly install your new Koldfront Through The Wall Air Conditioner into a wall sleeve, it is required that you use the Rear Louver Panel / Grille that was shipped with your new air conditioning unit. -
Page 11: Rear Louver Panel / Grille Installation Into Wall Sleeve Diagram
Rear Louver Panel / Grille Installation into Wall Sleeve Diagram Important: Please ensure that the Rear Louver Panel / Grille is installed correctly to ensure proper airflow and performance. Please note the direction and alignment of the louvered fins. If you are unable to secure the Rear Panel Louver / Grille to the wall sleeve, it may be attached directly to the rear of the air conditioning unit. -
Page 12: Attach Seals And Support Blocks To Wall Sleeve
Important: The below instructions are to be used in conjunction with the Koldfront Wall Sleeve model WTCSLV. Instructions for other compatible wall sleeves can be found in the “Alternate... -
Page 13: Prepare Ground Wire
Prepare Ground Wire To properly ground the air conditioner unit, the ground wire must be secured to the frame of the wall sleeve. When the air conditioner unit is placed inside of the wall sleeve, this ground wire will be attached to the air conditioner frame to allow for proper grounding of the air conditioner unit. Note: This step will require the use of a drill with a 1/8”... -
Page 14: Install Air Conditioner Unit Into Wall Sleeve
Install Air Conditioner Unit into Wall Sleeve With the wall sleeve fully prepared, you are now ready to insert the air conditioner unit into the wall sleeve. Two or more people may be required for this step. 1. Remove the 2 screw on the left lower side of the air conditioner cabinet. -
Page 15: Completing Installation
4. Slide air conditioner completely to the rear of the wall sleeve unit ensuring that all seals and foam support blocks create snug fit for the unit. Please be sure that the ground wire does not become entangled when the unit is pushed back into the wall sleeve. Completing Installation With the air conditioner installed into the Wall Sleeve and the ground wire properly attached, it is time to complete installation by inserting the Main Insulating Seal (stuffer seal) and attaching the... -
Page 16: Alternate And Supplemental Installation Instructions
3. Pull the power cord through the Trim Kit frame and then slide the Trim Kit Frame over the unit until it is flush with the wall. Alternate and Supplemental Installation Instructions The below instructions may be referenced for scenarios in which the standard installation procedures cannot be followed. -
Page 17: Non-Koldfront Wall Sleeve Types
Non-Koldfront Wall Sleeve Types The below diagrams may be used as a reference when installing your Koldfront Through The Wall Air Conditioner into a non-Koldfront branded Wall Sleeve. Regardless of brand, please ensure that your wall sleeve is securely installed into the wall opening and is properly sealed. -
Page 18: Control Panel Operations
Control Panel Operations On/Off Energy Saver Timer Mode Check Filter Fan Speed Sleep Temp/Timer Up Temp/Timer Down Using the Control Panel To Turn Unit on: Press the On/Off button . Note-The Energy Saver feature will automatically turn on in “Cool”, “Dry”, and “Auto” mode. To Change Temperature: Press or hold either the Up or Down... -
Page 19: To Select Operating Mode
To Select Operating Mode: To choose the operating mode press the Mode button . Each time you press the button a mode is selected in a sequence that goes from Auto, Cool, Dry, to Fan. The indicator light beside the Mode button will be illuminated and remain on once the mode is selected. To Operate in Auto Mode: ... -
Page 20: To Use Timer (Auto Start/Stop) Feature
To Use Timer (Auto Start/Stop) Feature: When the unit is on or off, press the Timer button and the “Timer On” indicator light illuminates. It indicates that the Auto Start/Stop program is initiated. To switch to off press the Timer button again and the “Timer Off”... -
Page 21: Air Directional Louvers
Air Directional Louvers: The 4-way air directional louvers allow you to direct the air flow Up, Down, Left, and Right throughout the room as needed. To adjust the air directional louvers side to side use the center handles as you move side to side. Pivot the louvers by pressing with your fingers until the desired airflow direction is obtained. -
Page 22: Remote Operations
Remote Operations... -
Page 23: Maintenance
Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up, preventing proper air flow and potentially resulting in an accumulation of frost on the cooling coils. -
Page 24: Cabinet Cleaning
Cabinet Cleaning Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild dishwashing detergent. Rinse thoroughly and wipe dry. ... -
Page 25: Troubleshooting Tips
Troubleshooting Tips Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The wall plug is disconnected. Make sure the unit is plugged functioning at all. The LCDI power cord is Press the Reset button on the tripped. - Page 26 Troubleshooting Tips Continued… Issue Possible Cause Solution The air conditioner is cooling but The front of the unit is blocked Clear any blockage in front of the room is too warm. NO ice is by drapes, blinds, furniture, or the unit. forming on the cooling coil other objects that restrict air behind the decorative front.
-
Page 27: Specifications
78.1 lbs ” WCO230V 11700 21.87 oz x 14 60Hz 230V / ” x 20 ” WTC14012 14000 / R410A 208V 6-15P 6.9 / 7.5 78.1 lbs ” WCO230V 13600 21.52 oz x 14 60Hz WTC8002WCO WTC10012WCO230V WTC10002WCO115V WTC12012WCO230V WTC12002WCO115V WTC14012WCO230V... -
Page 28: Edgestar Limited Warranty
Limited Warranty: Full Two Year Parts and Labor EdgeStar Limited Warranty This product is warrantied by EdgeStar and is subject to any conditions set forth as follows: WHAT IS COVERED: WHAT IS NOT COVERED - The following limitations apply to the For a period of TWO (2) YEARS from the date of coverage of this warranty.
