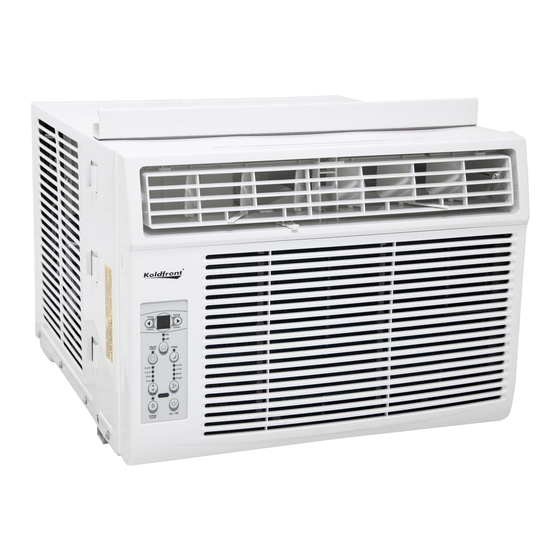

- Page 1 Window Air Conditioner WAC12002WCO Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information. Electrical Safety Make sure your hands are dry and not wet before operating the unit. Do not wet the front housing or control panel. ... -
Page 3: Operation Of Safety Plug
Do not use the TEST and RESET buttons as an ON/OFF switch. Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste. Koldfront Window Air Conditioner... -
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION ..............I ................ PERATION OF AFETY TABLE OF CONTENTS ..................III INTRODUCTION ....................1 PARTS IDENTIFICATION ..................2 ....................2 RONT PREPARATIONS FOR INSTALLATION .............. 3 : ....................3 ... -
Page 6: Introduction
Introduction Thank you for purchasing this Koldfront by EdgeStar cool-only window air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 7: Parts Identification
Parts Identification Front / Side View Top Channel Air Outlet Louver Side and Back Vent Control Panel Side Curtain Front Air Intake Panel Koldfront Window Air Conditioner... -
Page 8: Preparations For Installation
Preparations for Installation Tools Needed: NOTE: To avoid risk of injury and/or product/property damage, please take the following precautions: Phillips Screwdriver Two or more people are needed to properly handle and install. Tape Measure Use proper lifting and carrying techniques. Level Before installation, make sure to inspect that the window and sill are Drill... -
Page 9: Window Installation Instructions
(4) holes in the top channel with the four (4) holes on top of the cabinet. 3. Use four (4) ” Phillips screws to attach the top channel to the top of the cabinet. ” Screws Top Rail Koldfront Window Air Conditioner... - Page 10 4. To attach the side curtains to the air conditioner, start by gently extending the accordion panel until you can insert the open end into the connector tabs located on the side of the unit. Side Curtain Connector Tab 5. Insert the top and bottom of the curtain housing to the top curtain and bottom curtain channel.
-
Page 11: Installing Unit Into Window
Window Sash About 1 ” to 1 ” Measure tilt from cabinet edge Window Sill 2. Extend both Side Curtains outward until they are flush with the window frame Window Frame Koldfront Window Air Conditioner... - Page 12 3. Attach Curtain Brackets The Curtain Brackets will secure the lower frame of the side curtains to the window sill. Place the Curtain Bracket in between the accordion extensions as shown in the image below. Use one (1) ”...
-
Page 13: Seal Air Gaps
Locate the insulation panel supplied with this unit and cut each panel to the correct width. Slide the insulation panels into each side curtain as shown below with the pattern side facing inward (indoors). Insulation Panel Koldfront Window Air Conditioner... -
Page 14: Completing Installation
3. Attach weather stripping In order to minimize air leaks, this unit comes with weather stripping that should be installed as needed to plug any gaps that may be present after you have secured the air conditioner into the window. ... -
Page 15: Control Panel Operations
. Each time you press the button, a mode is selected in a sequence that goes from Auto, Cool, Dry to Fan. The indicator light adjacent to the mode label will be illuminated and remain on once the mode is selected. Koldfront Window Air Conditioner... -
Page 16: To Operate In Auto Mode
To Operate in Auto Mode: When you set the unit to “Auto” mode it will automatically select cooling or fan only operation depending on the temperature selected and the current room temperature. Once the temperature you selected is achieved, the unit will automatically maintain the room temperature. -
Page 17: Check Filter Feature
The control panel is capable of displaying the temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down Temp/Timer buttons at the same time for three (3) seconds. Koldfront Window Air Conditioner... -
Page 18: Using The Remote Control
Using the Remote Control ON/OFF button - Select MODE button - Press this to turn unit off and on. button to select desired operation mode from AUTO, COOL, DRY, and FAN. TEMP UP button - Push this button to increase the TEMP DOWN button - Push temperature setting in this button to decrease the... -
Page 19: Maintenance
Never use harsh cleaners, wax, or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner. Koldfront Window Air Conditioner... -
Page 20: Normal Sounds
Normal Sounds High Pitched Chatter: high-efficiency compressors may have a high pitched chatter during the cooling cycle. Sound of Rushing Air: at the front of the unit, you may hear the sound of rushing air being moved by the fan. ... -
Page 21: Troubleshooting
High setting decorative front Air directional louvers Position louvers for better positioned improperly air distribution Front of unit is blocked Clear blockage in front of by drapes, blinds, unit furniture, etc., restricts air distribution Koldfront Window Air Conditioner... - Page 22 Issue Possible Cause Solution Air conditioner is cooling Open doors, windows, Open = cold air escapes. but room is too warm. etc. Close doors, windows, NO ice is forming on etc. cooling coil behind Unit recently turned on Allow additional time to decorative front in hot room remove “stored heat”...
-
Page 23: Specifications
Power Cord Length 6.5 ft BTUs (cooling) 12000 Current (cooling) 8.7A Rated CEER 12.0 Color White Coolant R410A Timer 24 Hour Dimensions (inches) 19 x 21.5 x 14.6 W x D x H Net Weight 70.8 lbs Koldfront Window Air Conditioner... -
Page 24: Edgestar Limited Warranty
EdgeStar Limited Warranty One (1) Year Parts & Ninety (90) Days Labor This product is warranted by EdgeStar to be free from defective workmanship and materials, subject to any conditions set forth as follows: WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. - Page 25 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar & Koldfront products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2015 Living Direct, Inc.
