Summary of Contents for Koldfront WAC8001W

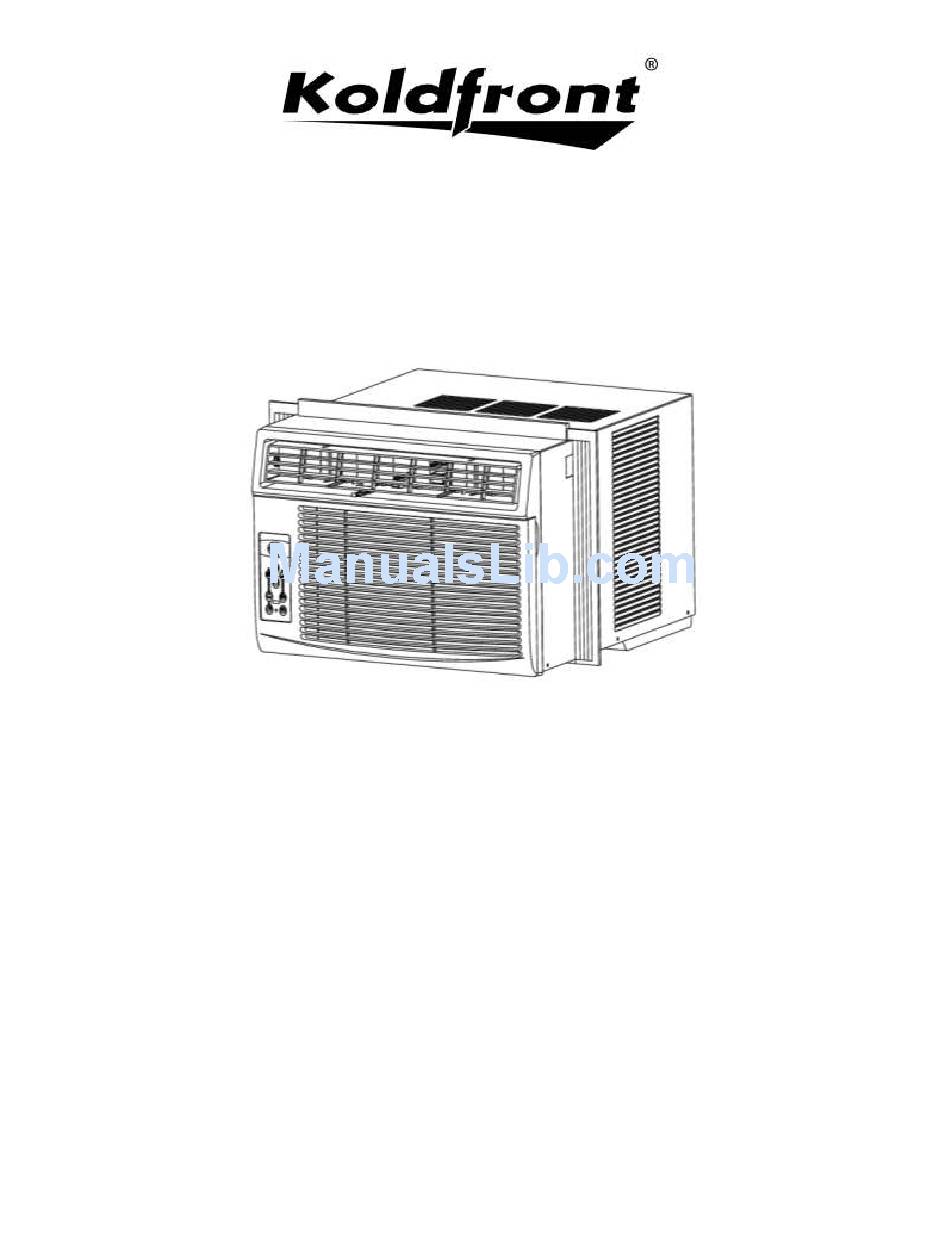

- Page 1 Window Air Conditioner Installation Instructions V1.0-05092017...
- Page 2 Parts Identification Front/Side View...
-
Page 3: Preparations For Installation
Preparations for Installation Note: You may need to contact your electrician if your room’s circuit is not able to power your unit. Note: To avoid risk of injury and/or product/property damage, please take the following precautions: - Two or more people are needed to properly handle and install. - Use proper lifting and carrying techniques. -
Page 4: Window Installation Instructions
Window Installation Instructions Note: When choosing your window make sure the power supply cord is within 4 feet of a grounded 3-prong outlet. Please follow all installation instructions to avoid personal injury or damage. It is important that you save all original packaging materials in case you need to safely transport your window air conditioner. - Page 5 4. To attach the side curtains to the air conditioner, start by gently extending the accordion panel until you can insert the open end into the connector tabs located on the side of the unit. 5. Insert the top and bottom of the curtain housing into the top curtain and bottom curtain channel.
- Page 6 Installing Unit into Window Note: When choosing your window make sure the power supply cord is within 4 feet of a grounded 3-prong outlet. Follow the steps listed below to install the air conditioner into the window. 1. Center the air conditioner cabinet into the window: ...
- Page 7 2. Extend both Side Curtains outward until they are flush with the window frame. 3. Attach Curtain Brackets The Curtain Brackets will secure the lower frame of the side curtains to the window sill. Place the Curtain Bracket in between the accordion extensions as shown in the image below.
- Page 8 4. Attach Side Curtains to Window Frame Use three (3) ½” Philips head screws to attach the side curtain frame and top channel to the window sash. Note: Use a 1/8” drill bit to drill pilot holes in the window sill to prevent splitting before driving the screws into place.
- Page 9 Sealing Air Gaps 1. Install Window Sash Seal Trim the window sash seal (foam) to the appropriate length and insert it into the gap that is between the upper and lower window sashes. 2. Install Energy Efficient Insulation Panels ...
- Page 10 3. Attach Weather Stripping In order to minimize air leaks, this unit comes with weather stripping that should be installed as needed to plug any gaps that may be present after you have secured the air conditioner into the window. ...
