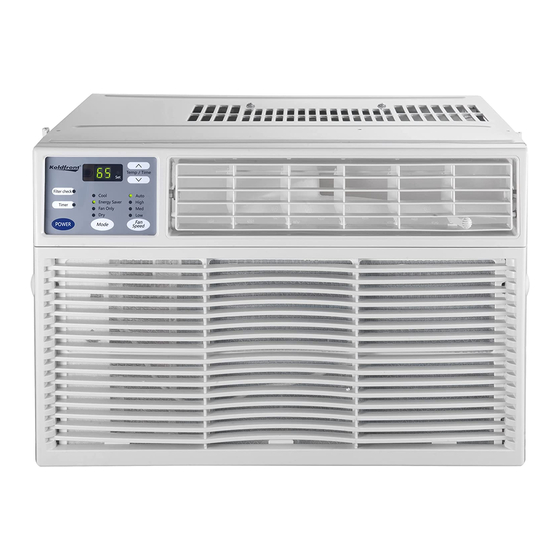

Window Air Conditioner
WAC6002WCO
Owner's Manual
For more information on other great Koldfront products on the web, go to
https://www.koldfront.com
V2.5 11212019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAC6002WCO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Koldfront WAC6002WCO

  • Page 1 Window Air Conditioner WAC6002WCO Owner’s Manual For more information on other great Koldfront products on the web, go to https://www.koldfront.com V2.5 11212019...
  • Page 2 Important Safety Information Warning: The water produced by the window AC is not potable or suitable for drinking. Do not drink the water drained from the unit as it contains contaminates and could make you sick. Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information Electrical Safety •...
  • Page 3 2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Koldfront support.
  • Page 4: Table Of Contents

    Table of Contents IMPORTANT SAFETY INFORMATION ..............................I TABLE OF CONTENTS ................................... III INTRODUCTION ..................................... 1 PARTS IDENTIFICATION ..................................2 Side View...................................... 2 Front View ....................................2 PREPARATIONS FOR INSTALLATION ..............................3 WINDOW INSTALLATION INSTRUCTIONS .............................. 4 Preparing the Unit for Window Installation..........................4 Installing Air Conditioner into Window ............................
  • Page 5: Introduction

    Introduction Thank you for purchasing this Koldfront window air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and Koldfront. We will provide the customer support and exemplary products necessary to nurture that relationship.
  • Page 6: Parts Identification

    Parts Identification Side View Front View...
  • Page 7: Preparations For Installation

    Preparations for Installation NOTE: You may need to contact your electrician if your room’s circuit is not able to power your unit. NOTE: To avoid risk of injury and/or product/property damage, please take the following precautions: - Two or more people are needed to properly handle and install. - Use proper lifting and carrying techniques.
  • Page 8: Window Installation Instructions

    Window Installation Instructions NOTE: When selecting the window into which you will install the air conditioner, make sure power the power supply cord is within 4 feet of a grounded 3-prong outlet. Preparing the Unit for Window Installation Attaching the Top Channel and Side Curtains Make sure to attach the top channel and side curtains prior to installing the cabinet into the window.
  • Page 9 6. Expand the side curtain and install the “Left” and “Right” side curtains into their respective side channels. A. Top Channel B. Side Curtain C. Bottom Channel D. Side Channel 7. Slide the upper and lower ends of the side curtains into the top and bottom channels. Sealing the Window for Installation 1.
  • Page 10: Installing Air Conditioner Into Window

    Installing Air Conditioner into Window NOTE: When choosing your window make sure the power supply cord is within 4 feet of a grounded 3-prong outlet. Follow the steps listed below to install the air conditioner into the window: 1. Using two (2) or more persons, safely lift the air conditioner into the windowsill: •...
  • Page 11: Completing Installation

    3. Install the window fixing bracket: • Using the one (1) remaining Type B screw, install the window fixing bracket to the window frame. • If installing the bracket into a wooden window, the fixing bracket should be attached to the back of the window frame.
  • Page 12 4. Once the sections of side curtain sealing material have been cut, place one on either side of the air conditioner covering the side curtain. The extra material on top of the sections can be tucked into the upper window to keep them in place. A.
  • Page 13: Control Panel Operations

    Control Panel Operations Using the Control Panel To Turn the Unit On: Press the Power button. Note: The Energy Saver feature will automatically turn on in “Cool,” “Dry,” and “Auto” modes. To Change Temperature: Press or hold either Up or Down button until desired temperature is seen on the digital display.
  • Page 14 To Select Operating Mode: To choose the operating mode, press the “Mode” button. Each time you press the button a mode is selected in a sequence that cycles from Auto -> Cool -> Energy Saver -> Fan Only -> Dry. The indicator light beside the mode button will be illuminated and remain on once the mode is selected.
  • Page 15 To Use Timer (Auto Start/Stop) Feature: • To initiate the Auto Start program, press the Timer button when the unit is off. • To initiate the Auto Stop program, press the Timer button when the unit is on. • Press or hold the Up or Down button to change the Auto Time by ½...
  • Page 16: Remote Operations

    Remote Operations The included remote is a universal remote control. Some functions may be found on the remote that this model of air conditioner does not have. If an unavailable function is selected, the unit will continue operating under its current running status. Use the remote control to change modes, fan speed, timer, and temperature settings as well as to set sleep mode.
  • Page 17: Installing The Batteries

    Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the direction indicated. 3. Install the cover on the back of the remote control. Caution: Use only AAA batteries.
  • Page 18: Maintenance

    Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and potentially cause an accumulation of frost on the cooling coils.
  • Page 19: Cabinet Cleaning

    If any of the codes found below should appear on the display of the air conditioner, please turn the unit off and back on to see if the code clears. If the error code continues to display, please visit. koldfront.com for service.
  • Page 20: Energy Saving Guide

    Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your window air conditioner: • Do not cover the air outlet (exhaust) while in use. • Use the timer to operate the unit before it is needed. For example, set the timer to turn on the unit in cooling mode for three (3) or more hours to cool the room before you arrive.
  • Page 21 Troubleshooting Follow the troubleshooting guide below to resolve common issues. Problem Possible Cause Solution Insert plug firmly into proper wall Wall plug is disconnected. outlet. House fuse blown or Replace fuse with time delay type or circuit breaker tripped. reset circuit breaker. Press the RESET button on the power Power cord is tripped.
  • Page 22 Problem Possible Cause Solution Dirty air filter- air Clean air filter. Refer to Installation restricted. and Cleaning section. Temperature is set too Set to a Lower temperature. High. The directional louvers on Position louvers for better air the front are positioned Air conditioner distribution.
  • Page 23: Specifications

    Specifications Description of product Window Air Conditioner Model WAC6002WCO Voltage/Frequency 115V / 60Hz Cooling Capacity (BTUs) 6050 Current 4.6A Color White Coolant R410A: 14.82 oz. Timer 24 Hour ” x 15 ” x 12 ” Dimensions W x D x H Net Weight 46.3 lbs.
  • Page 24: Edgestar Limited Warranty

    Edgestar Limited Warranty Full Two-Year Parts and Labor This product is warrantied by EdgeStar and is subject to any conditions set forth as follows: WHAT IS COVERED: For a period of TWO (2) YEARS from the date of original retail purchase, EdgeStar will repair or replace any part free of charge, including labor, that fails due to a defect in materials or workmanship.
