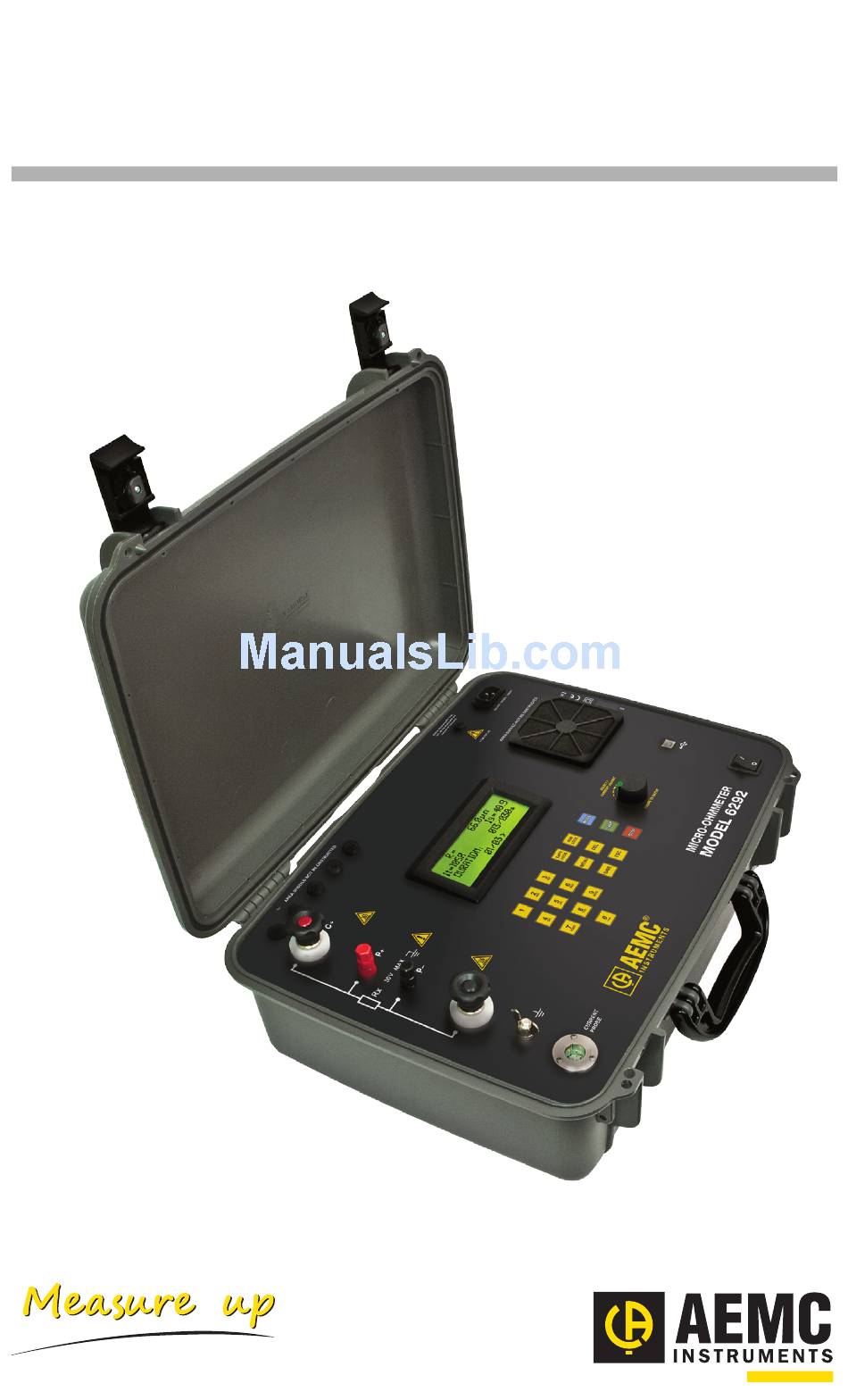

- Page 1 Micro-Ohmmeter Model 6292 Quick Start Guide ENGLISH ® www.aemc.com CHAUVIN ARNOUX GROUP...
-
Page 2: Statement Of Compliance
The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2129.83 Model #:... -
Page 3: Product Packaging
Set of Two, 25 ft Kelvin Clips (200A - Hippo) DataView Software & User Manual Cat. #2129.72 ® Green Ground Lead w/ Clamp Cat. #2129.88 USB DRIVE: DataView software and user manual for the Micro-Ohmmeter Model 6292 ® can be located on the USB drive supplied with the instrument. - Page 4 Thank you for purchasing the AEMC Micro-Ohmmeter Model 6292. For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. These products must be only used by qualified and trained users.
-
Page 5: Precautions For Use
Precautions for Use The protection obtained by the instrument can be compromised if it is used in a way that is not recommended by the manufacturer. • Do not attempt to perform any tests with this instrument until you have read the user manual. -
Page 6: Control Features
Control Features Air intake vents 9. Fuse Current output terminal (C+) 10. Power cord connector Potential terminal (P+) 11. Fan Potential terminal (P-) 12. Alphanumeric keypad and function buttons Current output terminal (C-) 13. Rotary test knob Ground terminal 14. USB communication port Current probe connector 15. -
Page 7: Keypad And Function Buttons
Keypad and Function Buttons The Model 6292 can be operated and configured using the alphanumeric keypad. The keypad enables you to name objects (groups of tests) and enter the date/time, and the function buttons let you select a number of configuration settings. -
Page 8: Getting Started
NOTE: For more information on using the DataView software, refer to the Model ® 6292 user manual that is supplied on the USB stick. Getting Started WARNING: Read the user manual and safety warnings before using this instrument. Safety procedures and rules for working near high voltage energized systems must be observed during the use of this instrument. -
Page 9: Establishing Communication To The Instrument
Establishing Communication to the Instrument Connect the instrument to the PC with the supplied cable. Double-click the Micro-Ohmmeter icon in the DataView folder that was cre- ated on the desktop during software installation to open the Control Panel. From the menu bar, select Instrument, then click Connect to open the Con- nection dialog box. -
Page 10: Downloading Stored Tests
• Test current is the current to be used when running a test. Available settings are 50, 100, 150, or 200A. You can also select Manual to use the rotary knob on the instrument to control the current level during the test. •... -
Page 11: Repair And Calibration
NOTE: Do not ship instruments to our Foxborough, MA address. Limited Warranty The Model 6292 is warranted to the owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor ®... - Page 12 08/17 99-MAN 100394 v7 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
