Summary of Contents for AEMC MR6292

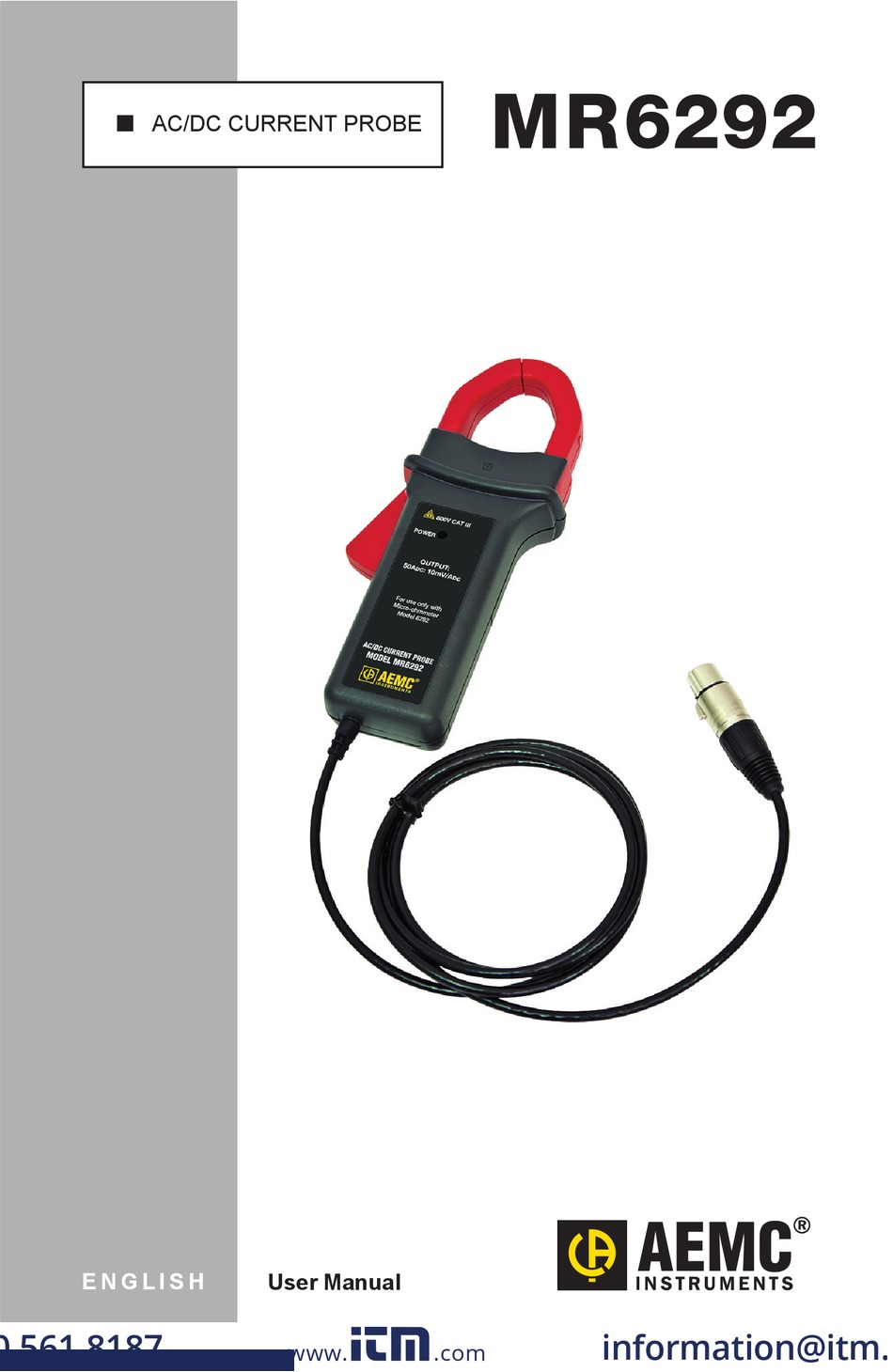

- Page 1 MR6292 AC/DC CURRENT PROBE E N G L I S H User Manual 0.561.8187 information@itm. www. .com...
- Page 2 Statement of Compliance Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® certifies that this instrument has been calibrated using standards and instruments traceable to international standards. We guarantee that at the time of shipping your instrument has met its published specifications.
-
Page 3: Table Of Contents
3.2 Mechanical ..................6 3.3 Environmental ................7 3.4 Safety .....................7 4. OPERATION ................8 4.1 Making Measurements ..............8 4.2 Operation Examples ..............9 5. MAINTENANCE ............... 10 5.1 Cleaning ..................10 5.4 Limited Warranty ................12 5.5 Warranty Repairs .................12 AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 4: Introduction
• Always inspect the probe and lead prior to use. Replace any defective parts immediately. • NEVER use the Model MR6292 on electrical conductors rated above 600V. 1.1 International Electrical Symbols This symbol signifies that the instrument is protected by double or rein- forced insulation. Use only specified replacement parts when servicing the instrument. This symbol on the instrument indicates a WARNING and that the operator must refer to the user manual for instructions before operat- ing the instrument. In this manual, the symbol preceding instructions indicates that if the instructions are not followed, bodily injury, installa- tion/sample and product damage may result. Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. This is a type A current sensor. This symbol signifies that application around and removal from HAZARDOUS LIVE conductors is permitted. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 5: Definition Of Measurement Categories
(<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equip- ment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Ordering Information AC/DC Current Probe Model MR6292 (for use with Micro-Ohmmeter Model 6292 only) ....Cat. #2129.86 Includes user manual. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 6: Product Features
CHAPTER 2 PRODUCT FEATURES Description The AC/DC Current Probe Model MR6292 is an accessory for the AEMC Micro-Ohmmeter Model 6292. The Model MR6292 probe is ® required for using the Model 6292 to take measurements in BSG (both sides grounded) mode. The probe is designed to meet the latest safety and performance standards. The probe’s hook-shaped jaws enable you to “pry” into or “hook” onto cables (it will accept 2 x 500 MCM) or small bus bars. The Model MR6292 uses Hall effect technology. All electronics are self- contained in the handle. The output of the probe is 10mV/A. No battery is required; the probe operates via voltage provided by the Model 6292. The probe has a proportional mV output for direct reading on the Model 6292. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 7: Mr6292 Features
POWER OUTPUT: : 10mV/A For use only with Micro-ohmmeter Model 6292 AC/DC CURRENT PROBE MODEL MR6292 Figure 1 1. Jaws 5. Lead, 5 ft (1.5m) 2. Conductor 6. 5-pin XLR connector 3. Protective non-slip guard 4. Green light (ON when connected to the Model 6292) AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 8: Specifications
Influence of Conductor in Jaw Opening: 0.5% reading Power Source: Powered by Micro-Ohmmeter Model 6292 Mechanical Jaw Opening: 1.2" (31mm) Maximum Cable Diameter: One 1.18" (30mm) or two 0.95” (24mm) or two bus bars 1.2 x 0.4" (31.5 x 10mm) Dimensions: 8.8 x 3.82 x 1.73" (224 x 97 x 44mm) Weight: 15 oz (440g) Output: 4-conductor shielded cable with 5-pin XLR connector Zero Adjustment: Automatic zero by Model 6292 Case Protection: IP30 per IEC 529 Drop Test: 1.0m on 38mm of oak on concrete; test according to EN 61010 AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 9: Environmental
≤ 0.2A/°K on Zero Operating Relative Humidity: 10° to 35°C: 90 ± 5% RH (without condensation) 40° to 55°C: 70 ± 5% RH (without condensation) Humidity Influence: 10 to 90% RH @ reference temperature ≤ 0.1% R Altitude: Operating: 0 to 2000m Non-operating: 0 to 12,000m Safety Electrical: EN 61010-2-32, 600V CAT III, Pollution: 2 Electromagnetic Compatibility: EN 50081-1 Class B EN 50082-2 Electrostatic discharge IEC 1000-4-2 Radiated field IEC 1000-4-3 Fast transients IEC 1000-4-4 Magnetic field at 50/60 Hz IEC 1000-4-8 AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 10: Operation
4. The green LED on the Model MR6292 should be lit. If the LED does not come ON or goes OFF after a few minutes; check to ensure that the Model 6292 instrument is still powered ON, and that the Model MR6292 is securely plugged into the instrument’s socket. 5. Set up a test on the Micro-ohmmeter Model 6292, as instructed by the instrument’s user manual (located on the USB stick). 6. Clamp the probe on the ground conductor to be tested, then start the test. The Model 6292 will display the measured ground conductor current as the “Ig” reading on the instrument’s LCD display panel: R=100.0uΩ It=142A Ig=8.0A DURATION: 015/060s 10/20/13 03:25 PM In the preceding example, the Ig measurement provided by the MR6292 probe is 8.0A. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 11: Operation Examples
Operation Examples • Conductor carrying 25A in the direction of the arrow. • Model 6292 displays Ig = 25A. 25 A 600V CAT III POWER OUTPUT: : 10mV/A For use only with Micro-ohmmeter Model 6292 AC/DC CURRENT PROBE MODEL MR6292 AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... -
Page 12: Maintenance
WARNING: • For maintenance use only specified replacement parts. • To avoid electrical shock, do not attempt to perform any servicing unless you are qualified to do so. • To avoid electrical shock and/or damage to the instrument, do not get water or other foreign agents into the case. Turn the current probe OFF and disconnect the unit from all the circuits before opening the case. Cleaning • Clean the body of the clamp with a cloth lightly moistened with soapy water. • Wipe clean with a cloth moistened with clean water and dry. • Do not use solvent. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... - Page 13 0.561.8187 information@itm. www. .com...
-
Page 14: Limited Warranty
CSA Form. Please write the CSA# on the outside of the shipping container. Return the instrument, postage or shipment pre-paid to: Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC/DC Current Probe Model MR6292 0.561.8187 information@itm. www. .com... - Page 15 0.561.8187 information@itm. www. .com...
- Page 16 01/15 99-MAN 100402 v2 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 0.561.8187 information@itm. www. .com...
