Module Settings

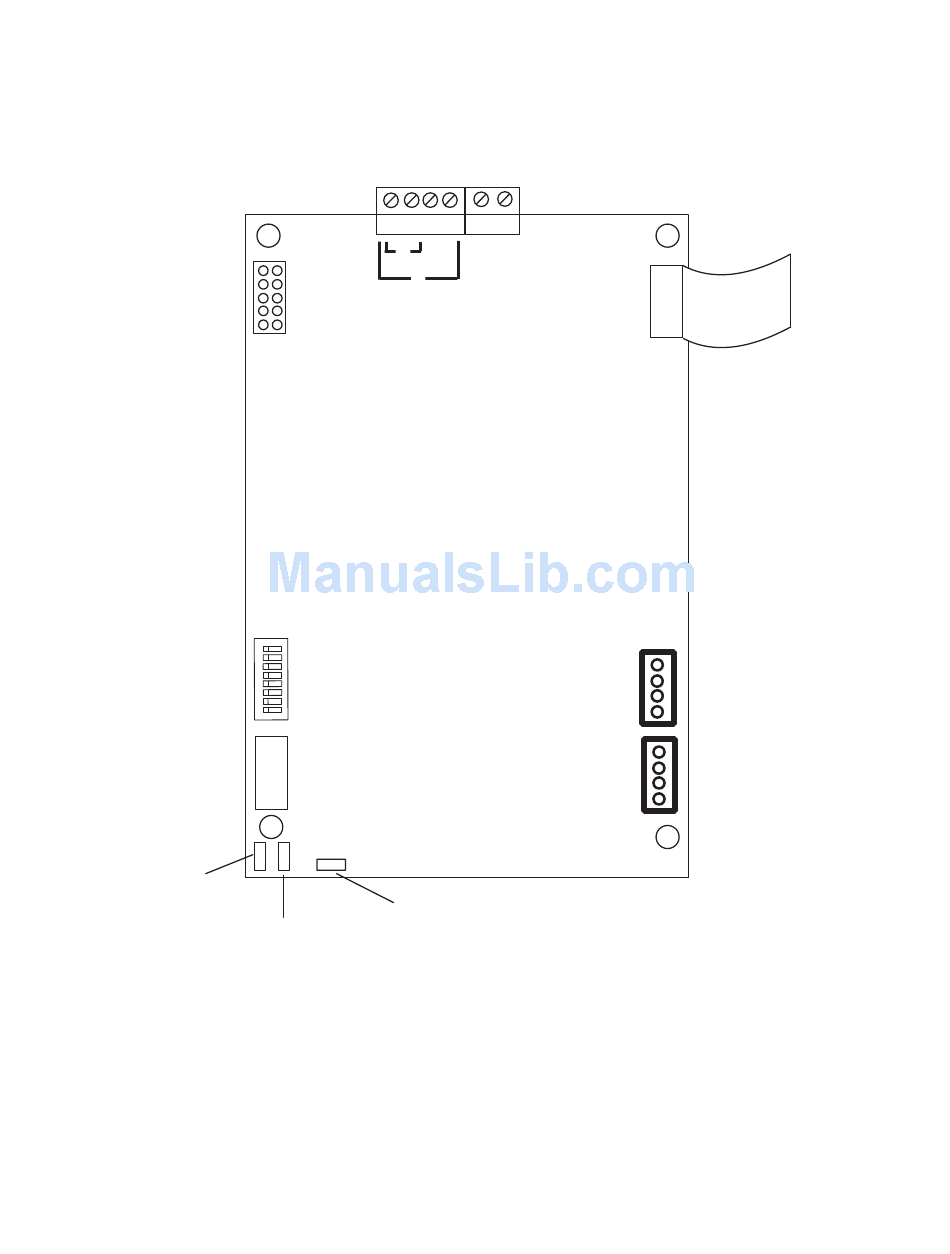

Figure 22: ALC-198S Single Intelligent Analog Loop Controller Module

Mount the ALC-198S Single Intelligent Analog Loop Controller module as described in the section Display and
Adder Modules Mounting Locations on page 13. The module may be mounted over the main chassis board or in any
position that an adder module is mounted.
RS-485
ADDRESS
DIP
SWITCH
BDM
PORT
JW2 - A
JUMPER IS
PLACED HERE
TO ENABLE
WATCHDOG
TIMER. THIS
IS JUMPER=S
NORMAL
LOCATION.
28
LOOP A
+ -
B
A
OUT
P4
1
DIP SWITCHES ARE FOR
THIS BOARD=S ADDRESS.
SW-1 IS THE LEAST
SIGNIFICANT DIGIT (BINARY).
ACTIVE POSITION IS OFF.
8
P5
JW3 - JUMPER
FROM JW2 IS
PLACED HERE TO
JW1 - JUMPER IS
BYPASS
PLACED HERE TO
WATCHDOG FOR
RESET HARDWARE
FACTORY
DOWNLOADING
USING BDM
+ -
SHIELD
RS-485
CABLE
IN
P3
P2
POWER
CABLE
(OUT)
POWER
P1
CABLE
(IN)
