Quick Guide

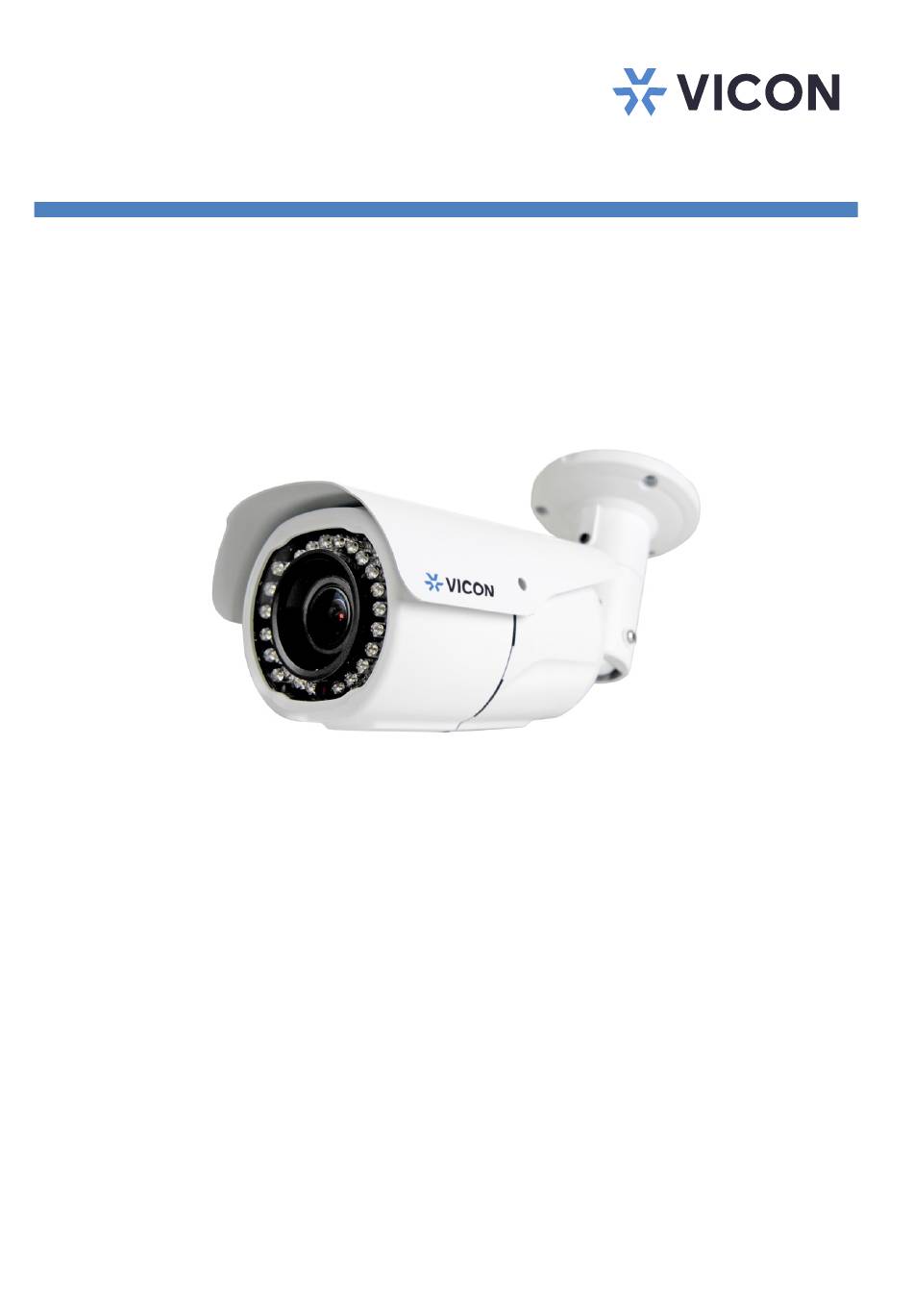

V980B Series
Network Bullet Camera
XX317-20-00
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8317-20-00 Product specifications subject to change without
notice. Issued: 12/19 Copyright © 2019 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288)
Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support:
800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon V980B Series
Summary of Contents for Vicon V980B Series
- Page 1 XX317-20-00 Vicon Industries Inc. Tel: 631-952-2288) Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform Fax: 631-951-2288 precisely as described in the documentation. This system has not been designed to be Toll Free: 800-645-9116 used in life-critical situations and must not be used for this purpose.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of... - Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

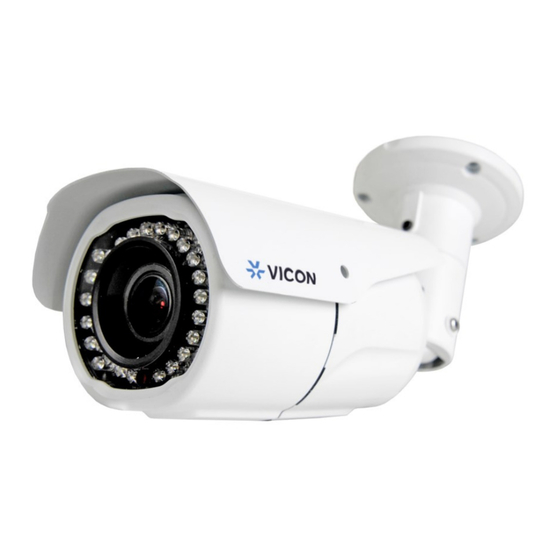

- Page 5 Introduction Vicon’s V980B series of HD IP Bullet Cameras is designed for performance in demanding security installations. There are 1080P (2MP), 4 MP and 5 MP resolution models with motorized varifocal lens. The camera offers IR illuminators that provide superior images in low-light environments.
-
Page 6: Installation
Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from a power adapter. Depending on operation methods, it is possible to connect an alarm cable. 2.1 Overview • Dimension Dimensions Unit: mm •... - Page 7 • Installing Camera To mount the bullet camera, fix the base of the camera with the three screws provided in the accessory kit.
- Page 8 2.2 Connection • Micro SD memory slot on the bottom board Remove the cap at bottom of the camera to insert the SD memory card. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for direct connection to PC, while a direct cable is used for connection to a hub.
-
Page 9: Resetting To The Factory Default Settings
2.3 Resetting to the Factory Default Settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera inside the bottom cap. -
Page 10: Network Connection & Ip Assignment
IP address to your products, or reset the product to the factory default settings and then perform the installation again. The utility can be found on the Vicon website www.vicon-security.com, on the Software Downloads page for Vicon cameras. -
Page 11: Operation
3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls. Access from a Browser 1. -
Page 12: Setting The Admin Password Over A Secure Connection
the router to allow access to the network camera. This is enabled from Setup > System > Network > NAT. For more information, refer to section “System > Network > NAT” of the User manual. Setting the admin password over a secure connection To gain access to the product, the password for the default administrator user must be set. -
Page 13: Live View Page
Live View Page The Live View page provides several screen modes. Select the most suitable mode in accordance with your PC specifications and monitoring purposes. General controls Live View Page Playback Page Setup Page Help Page The video drop-down list allows you to select a customized or pre-programmed video stream on the Live View page. -
Page 14: Video Streams
The Manual Trigger button activates a pop-up window to manually start or stop the event. The Remote Focus button enables users to adjust focus and zoom remotely via network (motorized lens models only). The Fine Focus (one push focus) button readjusts focus automatically to set the focus to the optimum position (motorized lens models only). - Page 15 4) Focus and Zoom Control (motorized lens models only). You can control Zoom and Focus from the Live View screen. Press the button on the left top in the Live View screen to activate the Zoom and Focus control panel. •...
