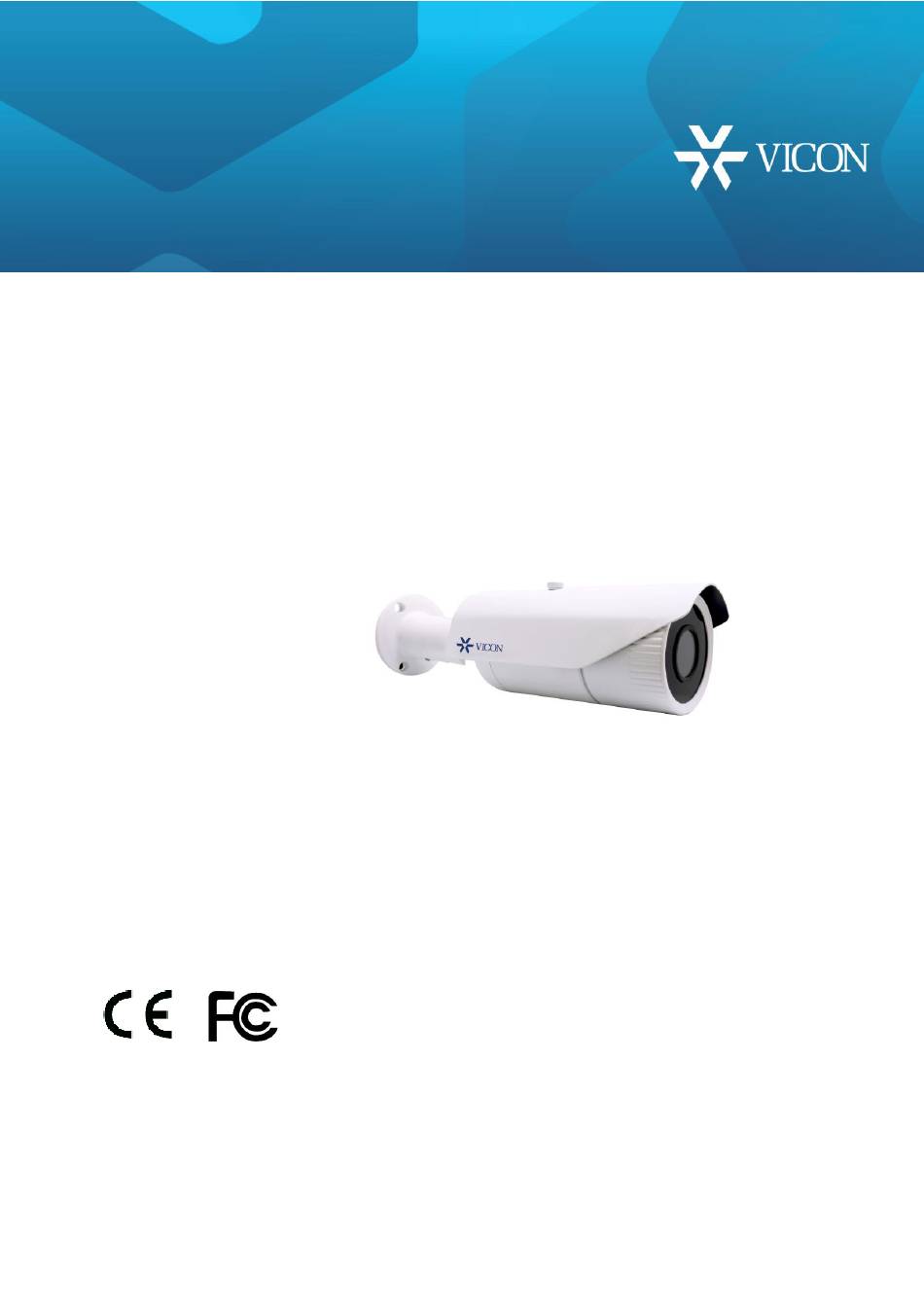

- Page 1 V940B Network Bullet Camera XX291-20-03 Vicon Industries Inc. does not warrant that the functions contained in this equipment will Vicon Industries Inc. meet your requirements or that the operation will be entirely error free or perform precisely Tel: 631-952-2288) Fax: 631-951-2288 as described in the documentation.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 Read this manual carefully before installation This manual should be saved for future use. Important Safety Instructions and Warnings Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. ...
-
Page 4: System Requirement

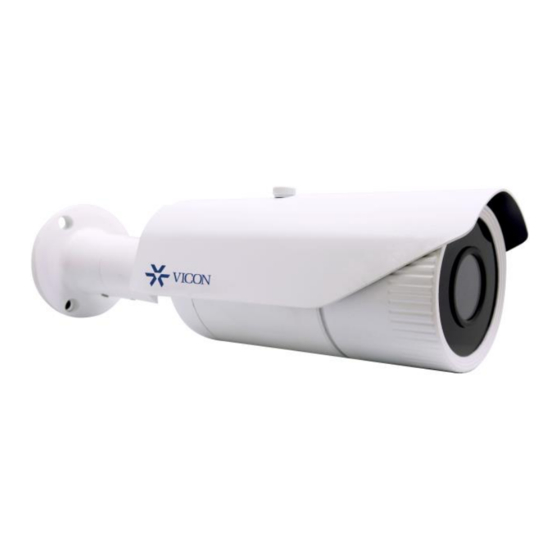

Always refer to Vicon’s website to assure you have the most up-to-date manual, www.vicon- security.com. The V940B Series Bullet Camera adopts progressive scan CMOS sensor with an internal HD motorized zoom lens. The camera has an internal Smart IR technology that provides 98 ft/30m IR distance. The IR LEDs output power can be adjusted automatically according to the brightness of the scene so that the IR LEDs do not work at full capacity. -
Page 5: Installation Precautions
Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from a power adapter. Depending on operation methods, it is possible to connect an alarm cable. Installation Precautions Do not drop the camera or subject it to harsh movement. ... -
Page 6: Cable Connections
Cable Connections (Black is GND) Item Description Ethernet, RJ-45 port compatible with 10/100Mbps PoE modular jack LAN RJ-45 Power Standard adapter jack for 12 VDC or 24 VAC Alarm In Alarm input and output, 5-pin terminal Alarm Out Alarm COM Audio In Audio input, 2-pin terminal;... -
Page 7: Step 2: Install The Camera
Cabling should be routed to the installation location. The V940B-BOX consists of two pieces (bottom and cover) and is supplied with a mounting template and hardware necessary to mount it. Using the mounting template, prepare the three mounting holes. Secure the bottom of the box to the surface using the screws and anchors supplied or hardware appropriate for the mounting surface. - Page 8 Step 3: Adjust the camera angle Loosen the angle adjustment screw, adjust the camera angle and direction to the desired position and then tighten the screws. Adjust the Camera Angle The camera installation is complete. Connections Connecting to the RJ-45 ...
- Page 9 Restore Factory Default Procedure If the equipment cannot be connected, try to reset the hardware of the camera. Follow up steps below to process. To reset the hardware, to connect the Alarm1, Alarm2 and Alarm Ground together while the camera is on, as shown in the picture below.
-
Page 10: Network Connection And Ip Assignment
DHCP server the camera will us a link local IP, i.e. 169.254.x.x. If DHCP is enabled and the product cannot be accessed, run the Discovery Tool utility to search for and allocate an IP address for the camera. The Discovery Tool (IPCConfig.exe) can be found on Vicon’s website, www.vicon- security.com, on the Software Downloads page for Vicon cameras. - Page 11 (2) Install control You may be prompted to allow running a Vicon add-in. Click to install manually and run the add-in. Follow the prompts. Live View interface displaying the major stream at H.264 format: Click the Settings tab and select Network. On this page (below), select Off to turn off DHCP. Then enter the required IP address, Subnet mask and Default gateway.
-
Page 12: Live View Page
Live View Page From the Live View page, users can select Stream Type, Video Type, Video Size, Play Mode, Corridor Mode, Video Info, Video Profile, Snapshot and Local recording can be configured. From here, the Settings screens can be accessed by the admin. Function Buttons Indicate audio input/output are disabled. -
Page 13: Stream Settings
RTSP Settings From Network Settings, RTSP tab, the RTSP streams are configured. The RTSP stream is accessed through the following links when Allowed anonymity is turned on. For major stream: rtsp://IP/ch1/stream1 For minor stream: rtsp://IP/ch1/stream2 For third stream: rtsp://IP/ch1/stream3 The RTSP stream is accessed through the following links when Allowed anonymity is turned off. For major stream: rtsp://ADMIN:password@IP/ch1/stream1 For minor stream: rtsp://ADMIN:password@IP/ch1/stream2 For third stream: rtsp://ADMIN:password@IP/ch1/stream3... - Page 14 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
