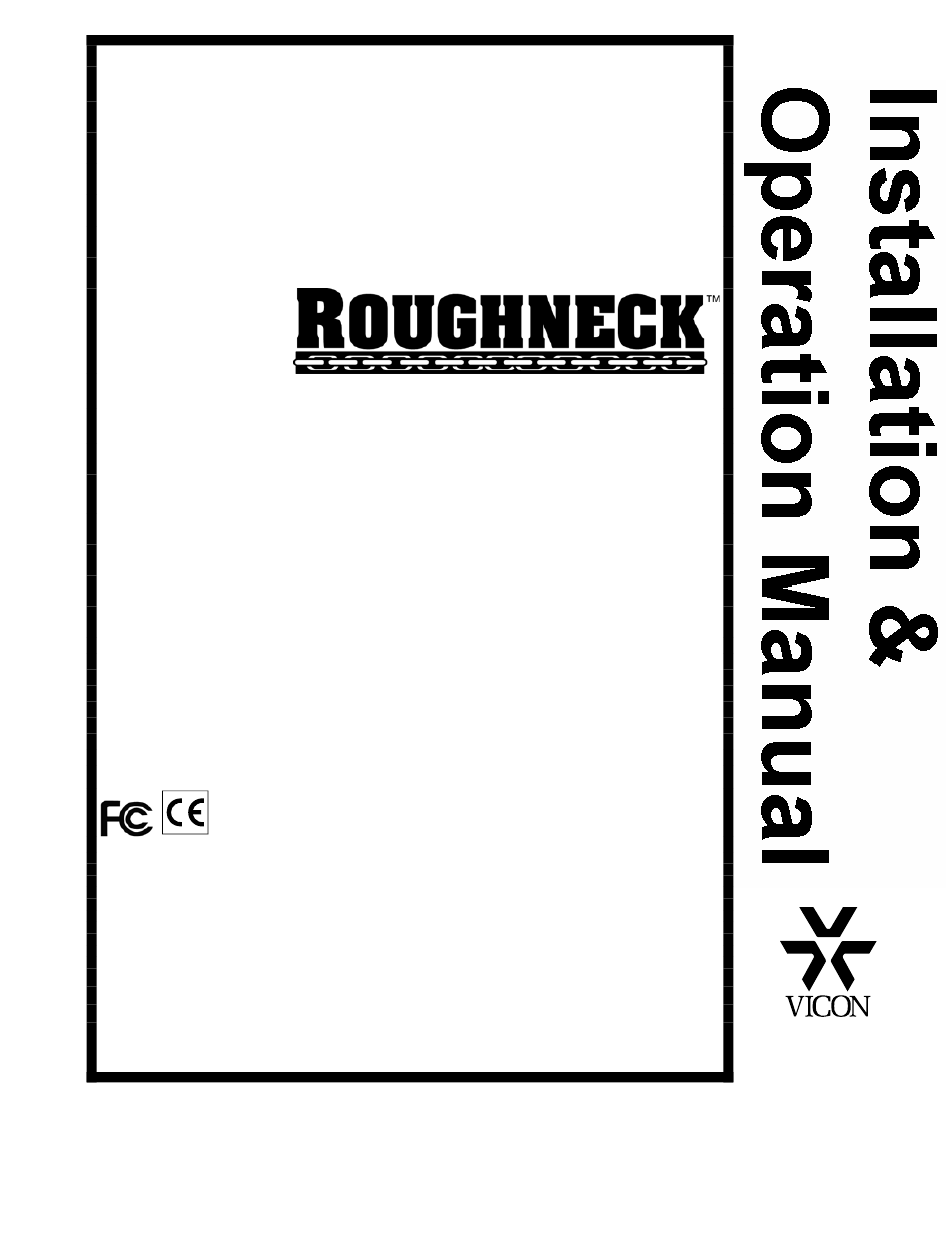

XX137-65-00

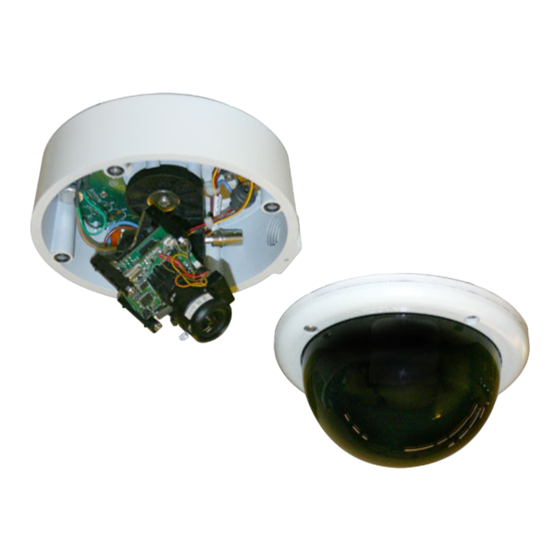

V910V4 IMPACT-RESISTANT

DOME CAMERAS WITH POE

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet

your requirements or that the operation will be entirely error free or perform precisely as

described in the documentation. This system has not been designed to be used in life-critical

situations and must not be used for this purpose.

Product specifications subject to change without notice.

Vicon and its logo are registered trademarks of Vicon Industries Inc.

ViconNet and its logo are registered trademarks of Vicon Industries Inc.

Roughneck and Kollector and their logos are trademarks of Vicon Industries Inc.

Pixim is a trademark of Pixim, Inc.

VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788

TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266)

UK: +44 (0) 1489 566300

WEB: www.vicon-cctv.com

Vicon part number 8009-8137-65-00

Rev 1107 Section 3

Table of Contents

Need help?

Do you have a question about the ROUGHNECK V910V4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon ROUGHNECK V910V4

Page 1 V910V4 IMPACT-RESISTANT DOME CAMERAS WITH POE Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
Page 3 FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
Page 4 20. Replacement Parts - Use only Vicon specified replacement parts or an approved equivalent to prevent unit damage and 6. Attachments - Use only UL Listed, Vicon recommended injury.
Page 5: Table Of Contents
Care and Cleaning of Lower Dome......................21 Shipping Instructions .......................22 Reference...........................23 Coaxial Cable Recommendations ......................23 Network Cable ............................235 Twisted-Pair Cable ............................26 Technical Information .......................26 Vicon Standard Equipment Warranty ................29 Contents • i XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 6: Quick Installation
Quick Installation For complete detailed instructions on how to install the V910, read the Installation section. Installation Diagram ii • Quick Installation XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 7: Introduction
Introduction The information in this manual covers the installation, operation, and maintenance of the Roughneck™ V910 Series of Impact-Resistant Dome Cameras with PoE. These units should only be installed by a qualified technician using common hand tools and approved materials and wiring methods in accordance with the national Electrical Code ANSI/NFPA 70, state and local wiring codes.
Page 8 Table 1 Models, Product Codes and Descriptions Model Product Description Power (W) Power (W) Current Code Nom./Max* Rating (A) Nom./Max. Indoor/Outdoor; 1/3-in. high-resolution color camera with 3.3 - 12 mm varifocal V910-W3312V4-PoE/ 9208-55/ autoiris lens; PoE or 24 VAC capability; 7.5 W 14.5/18.5 0.60/0.64...
Page 9: Installation
Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill.
Page 10 MAC Address 4 • Installation XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 11 Figure 1 Exploded View Installation • 5 XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 12: Accessory Kit
Accessory Kit There is an accessory kit included with the Roughneck V910. The table below lists the contents. Description Quantity Tamperproof driver bit, ¼ hex T-15 (to remove tamperproof screws) Pipe sealant (to seal pipe fitting to housing) Lug (for grounding) Screws (for some appropriate installations) Vent plug (for outdoor installations) Terminal block, 2-pin (24 VAC heater power)
Page 13 NOTE: Failure to thoroughly coat threads will result in moisture entering the housing and eventual failure of the unit. Note: For outdoor installations, Vicon recommends that the vent plug should only be used if fogging conditions exist. Additionally, if the side cable access hole is used, the base must be mounted so the hole is pointed directly downward.
Page 14 that the lens does not hit the dome. There is a label with the camera “1800” number on the camera/lens assembly; this marks the TOP of the camera. Make sure the camera/lens is installed so that the label is on the top for proper video display. Refer to Figure 7. Figure 4 Camera Position Adjustments 8 •...
Page 15: Cable Connections
Cable Connections Power, video, alarm, audio and IP connections are made to the printed circuit board (PC board). Refer to Figure 5 when performing these connections. Refer to the Cable Recommendations in the Reference section. The V910 PoE models provide support for direct network connection to Kollector Elite Digital Video Recorders and ViconNet Workstations via ViconNet version 4 software.
Page 16: Camera Power Connections
Wiring Connections Dome Power Connections Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops, and interruptions can affect the operation of your equipment and, in severe cases, damage certain components.
Page 17: Heater Connections
Table 2 Dome Power Connections Pin Number Function 24 VAC 24 VAC Return Note: A grounding tab (P6) is provided on the PC board for those installations requiring a ground. The use of the ground tab to earth ground is necessary to provide protection to the camera. A Faston (lug) is provided in the accessory kit.
Page 18 Figure 7 Camera/Lens Adjustments Figure 8 Switch Settings 12 • Installation XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 19 WDR Camera Adjustments The adjustments for the WDR camera are done via an OSD menu using a joystick on the WDR board. Refer to Figure 9. The camera must be connected to a portable (local) monitor to use the menu system. Use the cable included in the accessory kit.
Page 20: Final Installation
Day/Night The user can select how the day/night function is set for changing from color to black-and-white: AUTO (default): Color BW Level 20 to 35 (default is 32); BW Color level 0 to 10 (default is 5). Color Exit Menu When selecting Exit, the user can: EXIT NO CHANGES: Exits the menu system without making any changes SAVE NEW AND EXIT: Save all changes made before exiting the menu system...
Page 21 Network Considerations The V910 Camera Dome can be connected to any ViconNet network (Version 4 software). Kollector Elite Recorders and ViconNet Workstations can be used for live viewing and recording of network-streamed video. A network can be as simple as a single V910 connected to a ViconNet Workstation or can be complex with the addition of several networks interconnected via WAN.
Page 22 Setup TAB Note: Since the Setup configuration affects the entire installation process, it MUST be configured first. In the Setup TAB, 3 fields are defined. The Upgrade files field indicates the installation upgrade directory. The Log files field allows the user the ability to put a copy of log files in a predefined directory. Password management selects a directory to save all password files.
Page 23 3.2. Nucleus authentication - On the Nucleus admin login field, enter a valid Nucleus IP address and password and press the Login button. Once approved, notice that the icon has disappeared from all the units currently connected to the selected Nucleus and the user may proceed to next phase.
Page 24 Install TAB The Install TAB allows the user to install/upgrade newer versions. Choose the correct version and click Install to send to the selected unit. Install Info Tab The Info TAB displays the selected IP product general information/ Info Advanced TAB The Advanced TAB functionalities allow the user to handle unexpected events on a specific remote unit when they occur.
Page 25 Advanced ViconNet Configuration After the camera dome has been setup with the proper IP address, configuration features from a remote workstation, server or recorder are available as follows. • A network settings screen is used to modify the camera dome’s IP parameters. This allows great flexibility in network setup.
Page 26: Viconnet (Ip/Lan) Version Operation
Network Settings Window • An Authorization screen is used to establish authority levels, by user group. Functions such as PTZ and video view, record and playback can be set for authority level. • A priority screen is used to establish video quality and FPS levels. ViconNet (IP/LAN) Version Operation The following functions are supported by the ViconNet system through a workstation, recorder or server.
Page 27: Operation
Operation When power is applied to the camera, the Roughneck V910 views the selected scene. Maintenance The Roughneck V910 Impact-Resistant Cameras require no scheduled maintenance except for the occasional cleaning of the lower dome. Care and Cleaning of Lower Dome The inside surface of the smoked (gray-tinted) dome is easily scratched.
Page 28: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
Page 29: Reference
Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms.
Page 30: Network Cable
Network Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use pure copper stranded conductors to obtain a low DC resistance. The preferred insulation and cable jacket is Polyvinyl chloride (PVC).
Page 31: Twisted-Pair Cable
Twisted-Pair Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use a pure copper stranded conductor with or without a tin-plating to obtain a low DC resistance. Do not use cable with either steel or aluminum stranded conductor because they do not transfer signals effectively for long distances.
Page 32: Technical Information
Technical Information ELECTRICAL Input Voltage: PoE or 24 VAC ±20% (when heater power is required), isolated input. Use only a UL Listed Class 2 indoor/dry or Class 3 outdoor/wet rated power supply. Power Consumption: PoE: 7.5 W. 14.5 W nominal; 18.5 W max., including heater*. Current Rating: 0.60 A nominal;...
Page 33 VICONNET (IP) Communication Software: ViconNet Digital Management System. LAN Interface: 100 Mbps, TCP/IP Unicast. Number of Video Channels: 1, over LAN connection. Video Formats Supported: NTSC and PAL, model dependant. Video Transmission Rate: 1 channel @30 frames per second (25 fps, PAL) maximum. Number of Simultaneous Video Streams: Maximum of 10 viewing/recording streams per camera.
Page 34 OPERATIONAL Tilt and Horizontal Adjustment: 3 axis adjustment, pan, tilt and roll. MECHANICAL Application: Indoor/outdoor. Mounting: Ceiling or wall. Accessories available for pendant or in-ceiling installations. Dimensions: Height: 5.1 in. (130 mm). Total Diameter: 6.1 in. (155 mm). Dome Diameter: 4.7 in. (119 mm). Weight: Approximately 4 lb (1.8 kg).
Page 35 Table 3 Camera Specifications Model Image Color/ Resolution Sensitivity Camera Electronic Iris Signal-to- Device Mono Features Noise Ratio (TV lines) fc (lux) (sec) AGC, BLC, 1/3” CCD, ATW/AWB, V910-W3312V4-POE/ 2:1 interlace, Color 0.03 (0.3) AE/ME NTSC: 1/60–1/100,000 >48 dB V910-W3312V4-POE-C NTSC/PAL at 30 IRE, DIP switch...
Page 36: 30 • Vicon Standard Equipment Warranty
Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion.
Page 37 Notes Vicon Standard Equipment Warranty • 31 XX137-65-00 Rev 1107 Roughneck V910 Dome Cameras with PoE...
Page 38 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Germany vin-videotronic infosystems gmbh...

This manual is also suitable for:

Roughneck v910-w3312v4-poe Roughneck v910-w3312v4-poe-c Roughneck v910-w3312dnv4-poe Roughneck v910-w3312dnv4-poe-c Roughneck v910-w3312wdrv4-poe Roughneck v910-w3312wdrv4-poe-c
